USB VGA KVM over CAT5/6 UTP Extender
USB VGA KVM over CAT5/6 UTP Extender Advantages
► Transmit VGA video and audio over long distances through the cable, up to 150 meters;
► The highest resolution HD video signals up to 1080P @ 60Hz;
► Compliance with VGA standard protocol;
► Support for external one-way analog stereo audio signal transmission;
► Support USB keyboard and mouse transmission;
► It can automatically identify and configure a variety of display modes;
► Built-in automatic equalization system, the picture is smooth, clear and stable;
► Built-in ESD Protection Circuit, comprehensive protection system security;

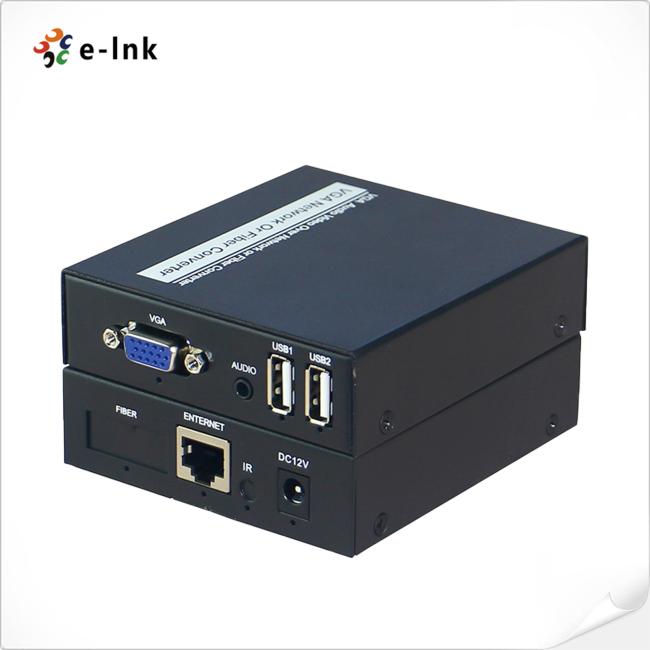

USB VGA KVM over CAT5/6 UTP Extender Picture

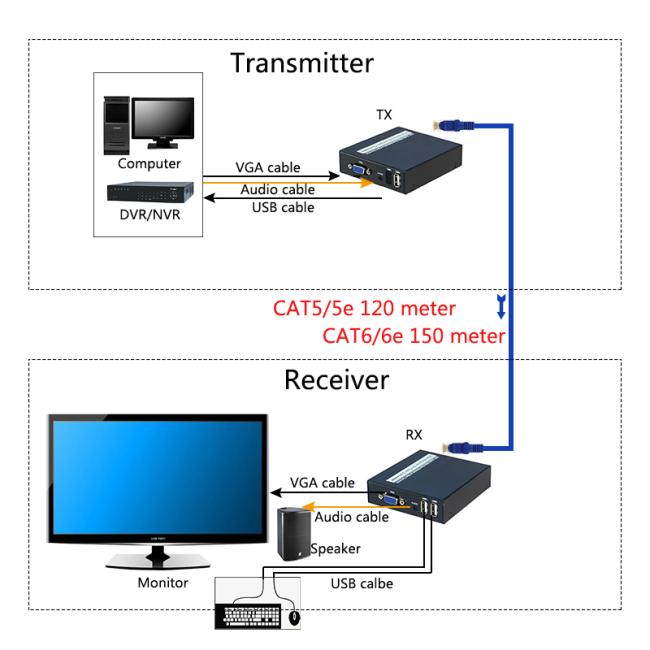

USB VGA KVM over CAT5/6 UTP Extender Application
USB VGA KVM over CAT5/6 UTP Extender Technical Indexes
| Parameter | Description | |
| Video | Signal Type | VGA |
| BW | 380MHz | |
| Resolution |
1024X768 @ 60fps 1280X720@ 60fps 1280X800@ 60fps 1280X1024@ 60fps 1440x900 @ 60fps 1660x1200 @ 60fps 1680x1050 @ 60fps 1920x1080 @ 60fps |
|
| Impedance | 75Ω | |
| Audio | Port | 3.5mm Stereo audio socket |
| Type | Stereo | |
| K/M | PIN | USB |
| Ethernet port | Cable Type | IEEE 568B |
| Max transmission distance | Cat5e :120m,cat6 :150m | |
| Other | Power | Adapter: DC 12V/1A |
| Power dissipation | MAX 4W | |
| Temperature | Operating:-5℃ ~ +70℃ | |
| Humidity | Operating:5% ~ 90% | |
| Size | 92 x 89 x 26 mm | |
| Warranty | 1 year | |
USB VGA KVM over CAT5/6 UTP Extender Ordering Information
| Part No | Description of product |
| LNK-UVGA-T/R | VGA Extender over CAT5/ 6 Kit Transmitter/Receiver, up to 150 meters |
