3G-SDI To HDMI Converter 1080p 60hz Long Distance Up To 150m

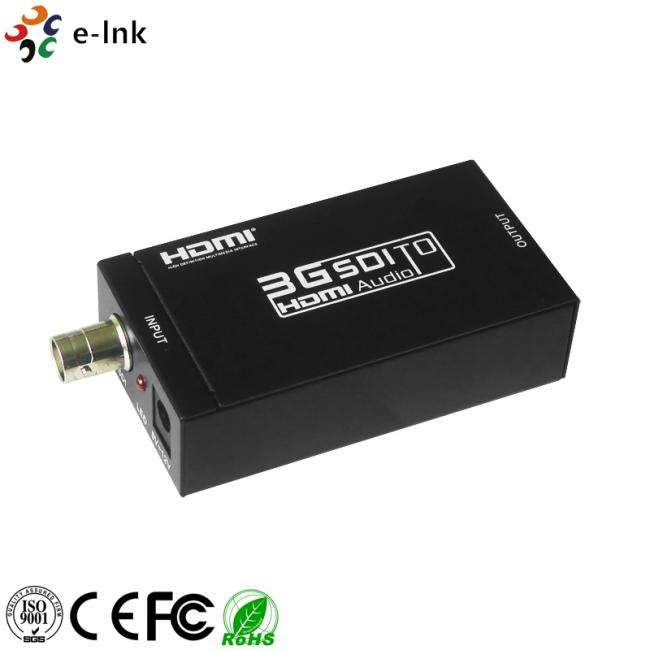

3G-SDI to HDMI Converter
3G-SDI to HDMI Converter Advantages
►Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s
►Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C
►Equalized and re-clocked loop output Integrated audio de-embedder for a maximum of 8 channel
►Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
►Connect with other units to extend your signal over long distances
Overview
The SDI to HDMI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HDMI/SDI
displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss.
For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving
you the ability to display your work on HDMI displays thanks to the built in HDMI converter.

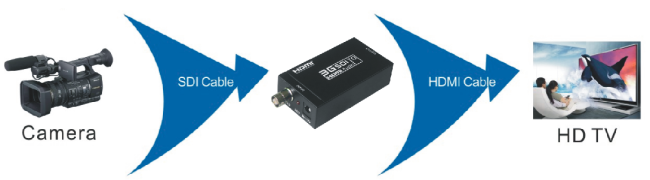

Application
Technical Indexes
|
Parameter |
Specifications |
| Input Port |
1 x BNC (SDI/HD-SDI/3G-SDI) |
| Output Port | 1 x HDMI |
| SMPTE Standard | 425M Level A & B, 424M, 292M, 259M-C |
| SDI Transmission Rates | 2.970 Gbit/s and 2.970/1.001 Gbit/s |
| In/Output Resolution |
480i, 576i, 720p@50/59.94,60 , 1080i@50/59.94/60 1080p@23.98/24/25/29.97/30/50/59.94/60 1080PsF@23.98/24/25/29.97/30 |
| HDMI input/output connect | HDMI type A 19Pin |
| Power Adapter | DC5V/1A |
| Operating temperature range | -40℃ to +70℃ |
| Operating humidity range | 5 to 90% RH (no condensation) |
| Shippingweight | 0.15 KGS |
| Dimensions( L x W x H) | 98.5 x 85 x 31mm |
Ordering Information
| Item | Description |
| LNK-SHC110 | 3G/HD/SD-SDI to HDMI Converter, Inputs: 1 x SDI (3G/HD/SD), Outputs: 1 x HDMI |
