12G SDI To HDMI 2.0 Converter 2.970Gbit/S Supports SMPTE 425M Equalized Reclocked Output
Price:
$5-269
MOQ:
1pair
Delivery Time:
5-8work
Brand:
E-link
Product Description
12G-SDI to HDMI 2.0 Converter
12G-SDI to HDMI 2.0 Converter Advantages
- Convert 12G-SDI to HDMI 2.0b at up to 4K 60p
- SDI supports up to 12G-SDI, support 4:2:2 HDMI2.0 output
- The highest resolution is 4K 60HZ, which can be down-converted to 1080P 60HZ
- Support audio embedding and de-embedding, compatible with AES/RCA audio
- SDI supports 8 Channels for embedded audio
- Support HDMI HDCP ON and OFF
- Fiber SFP port available, support 12G remote transmission
- Support phantom power

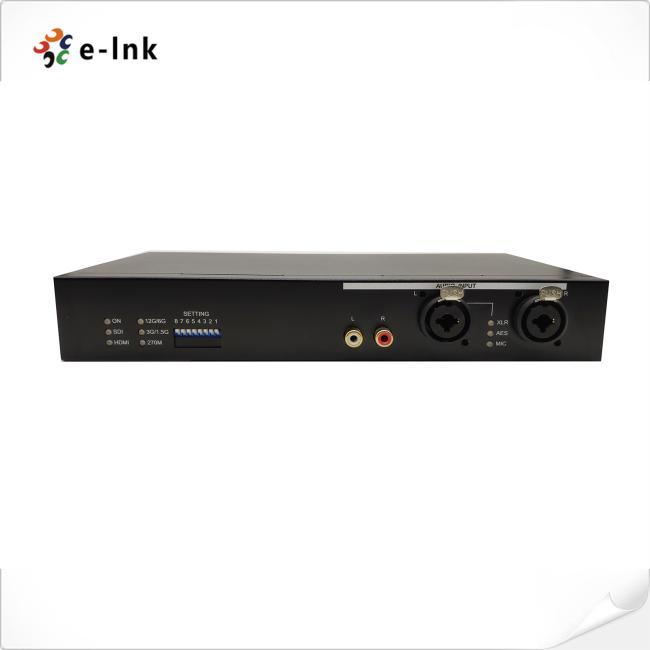

12G-SDI to HDMI 2.0 Converter Picture

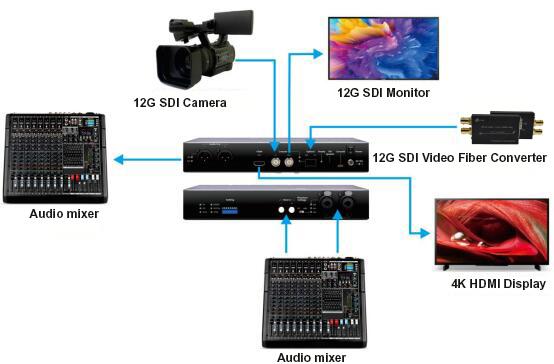

12G-SDI to HDMI 2.0 Converter Application
12G-SDI to HDMI 2.0 Converter Technical Indexes
| Parameter | ||
| Interface Standard | 12G-SDI | SMPTE 2082-10 |
| 6G-SDI | SMPTE 2081-10 | |
| 3G-SDI | SMPTE 425-1 3GA & 3GB | |
| SMPTE 425-1 3GB-DS | ||
| HD-SDI | SMPTE 292 | |
| SDI Video Formats | 4096x2160 | 60p, 59.94p, 50p, 48p, 47.95p, 30p, 29.97p, 25p, 24p, 23.98p |
| 3840x2160 | 60p, 59.94p, 50p, 48p, 47.95p, 30p, 29.97p, 25p, 24p, 23.98p | |
| 2048x1080 | 60p, 60i, 59.94p, 59.94i, 50p, 50i, 48p, 48i, 47.95p, 47.95i, 30p, 30psf, 29.97p, 29.97psf, 25p, 25psf, 24p, 24psf, 23.98p, 23.98psf | |
| 1920x1080 | 60p, 60i, 59.94p, 59.94i, 50p, 50i, 48p, 48i, 47.95p, 47.95i, 30p, 30psf, 29.97p, 29.97psf, 25p, 25psf, 24p, 24psf, 23.98p, 23.98psf | |
| 1280x720 | 60p, 59.94p, 50p, 48p, 47.95p, 30p, 29.97p, 25p, 24p, 23.98p | |
| Input Interface |
1 x 75Ω BNC, 1 x Video SMPTE SFP+ |
|
| Output Interface |
1 x HDMI Type A, 1 x 75Ω BNC, 1 x Video SMPTE SFP+ |
|
| Audio Interface | 2 x XLR Male Jack | |
| 2 x XLR Female Combo 6.4 Jack | ||
| 2 x 10KΩ RCA | ||
| Transmission Distance | Fiber SFP | 10KM |
| 12G-SDI | 40M | |
| 3G-SDI | 100M | |
| HD-SDI | 200M | |
| Power Input | DC12V1.5A | |
| Operating Temperature | 0 to 55℃ | |
| Humidity | Less than 95℃ | |
| Dimensions (LxWxH) | 253 x 162.5 x 40mm | |
| Weight | 1030g | |
12G-SDI to HDMI 2.0 Converter Ordering Information
| Model | Description |
| LNK-CSH-12G | 12G-SDI to HDMI 2.0 Converter, broadcast level, support audio embedding and de-embedding, compatible with AES/RCA audio, Fiber SFP port available (not including SFP modules) |
