4K DVI Fiber Converter With RS232 Data Simplex LC Connector 20KM Transmitter Receiver
Product Description:
The LNK-MDR4K Series 4K DVI Fiber Extender are designed to support transmission of uncompressed DVI signal and RS232 signal over optical fiber up to distances of 80km. The signal resolution reaches the maximum of 4K*2K@60Hz, YUV 4:2:0.

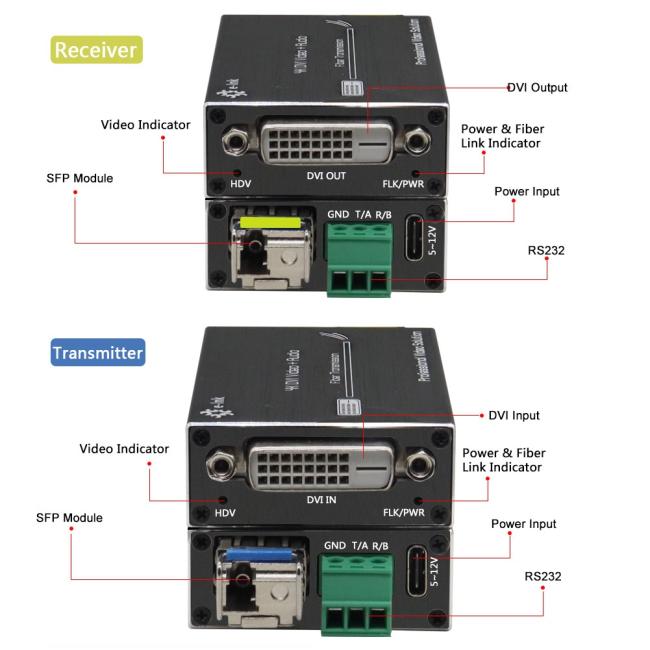

The Transmitter of the Extender converts the DVI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver then reverses the process and converts the serial data back to an DVI signal. Moreover, the transceivers are RoHS compliant and lead-free per requirements in Europe and China.
This product is ideal for large-screen display, conferencing systems and home entertainment and so on. With the ability of anti-interference, it can ensure the stability of the signal transmission.
Features:
► Uncompressed transmission, No delay, No losses
► Data rate up to 10.2Gbps
► Transmission distance up to 80km over fiber cable
► Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0
► Support Serial RS232 Signal
► Auto EDID, match different kind display device
► Hot-Pluggable, EMI/RFI Resistant
► Miniature form factor for ease of use and installation
► Operating Case Temperature: -10~50°C
Technical Indexes:
| Type of Extender | DVI signal over Optical Fiber Cable |
| Input Signals | DVI |
| Connector | DVI-D |
| Signal Support | DVI 1.0 format standard and HDCP compliant |
| Video Support | Up to 720P/960P/1080p@60Hz, 4K*2K@30Hz |
| Audio Support | Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
| Chroma Subsampling |
Max 3840*2160@60Hz (4:2:0) Max 3840*2160@30Hz (4:4:4, 4:2:2) |
| EDID |
Bi-Directional (Forward + Backward) Transmission: Support Dynamic EDID, Plug & Play, no need to learn Single-Directional (Forward) Transmission: Support EDID learning manually |
| RS232 | 3 Pin terminal, Baud rate ≤ 38400 |
| Fiber Connector | SFP/LC |
| Bandwidth | 10.2Gbps |
| Transmission Distance | 300m (Over OM3 Fiber) |
| Up to 80km (Over Single-mode Fiber) | |
| Operating Temperature | -10 ~ + 50°C |
| Storage Temperature | -20 ~ + 80°C |
| Humidity | 5% to 90% RH (non-condensing) |
| MTBF | 100,000 hours |
| Dimension (WxDxH) | 2.87 x 1.73 x 0.69in (73x44x17mm) |
| Weight | 60g / 0.13 lb |
| Power Supply | 5V DC (USB-C) |
| Power dissipation | <5W |
| Safety Approvals | CE, FCC, Rohs |
Support and Services:
DVI Fiber Converter offers technical support and service to all of its customers.
We provide comprehensive support for our products, including troubleshooting, installation assistance, and timely updates. Customers can contact us through email, phone, or in-person support. Our knowledgeable and experienced technicians will help you resolve any issue you may have.
Additionally, we offer a wide range of services to our customers. We can provide you with customized solutions for your individual needs. We can also provide training and advice on how to get the most out of your converter. We are committed to providing the highest level of service and support to our customers.
Packing and Shipping:
Packaging and Shipping for DVI Fiber Converter:

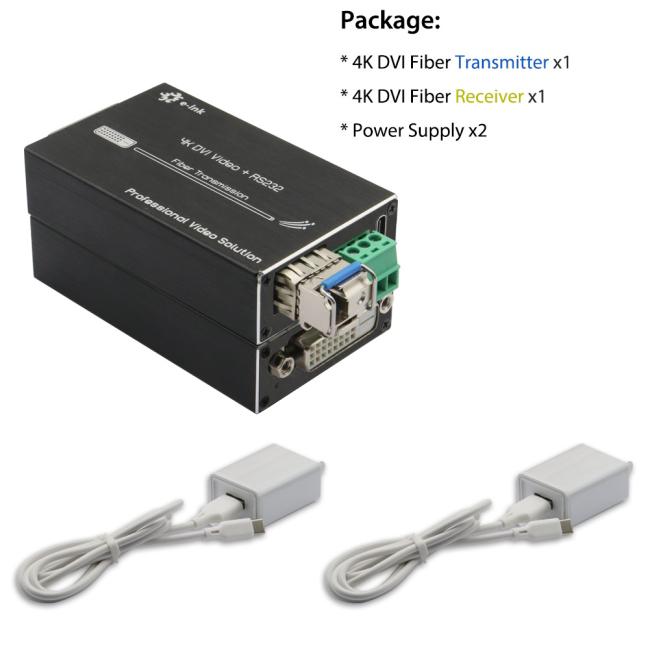

- The package includes 1PCS of DVI Fiber Transmitter, 1PCS of DVI Fiber Receiver, 2PCS SFP Modules, 2PCS Power Adapters, 1PCS User Manual.
- The box is wrapped with a protective plastic sleeve.
- The product is shipped with an international courier service.
Ordering Information:
|
Model |
Description |
|
LNK-MDR4K-MM |
Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
|
LNK- MDR4K-S20 |
Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
|
LNK- MDR4K-S40 |
Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
|
LNK- MDR4K-S80 |
Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
