1080P 8 Channel 3G SDI Extender Over Single Fiber 1U Rack Mountable 20KM
Product Description:
The LNK-SDI-8V Series supports 8-channel standard, high-definition video signals that are transmitted and monitored via a single fiber optical cable. It is possible to achieve a 1080p 3G-SDI signal through a transmitter and receiver unit, which is part of the E-link 3G-SDI Video over Fiber Converter. The E-link SD/HD/3G-SDI Fiber Converter can transmit 8-Ch SD/HD/3G-SDI Video and 1-Ch Reverse RS-485 data signal through one optical fiber. Additionally, video quality is able to reach broadcast standards while audio is set to a CD level. What's more, it even supports Reverse RS-485 data communication formats.
Features:
This fiber optic video transmission is the perfect choice for high-quality 8 channel SD/HD/3G-SDI transmission. It automatically equalizes cables to secure signal integrity and provides automatic reclocking from 270Mbit/s - 1.48Gbit/s - 3Gbit/s. Additionally, it is directly compatible with 3G-SDI camera systems and works with Reverse RS-485 data protocols.
This fiber optimal video transmission also possesses impressive distance, allowing you to transmit data up to 10 km and even up to 120 km. A terminal block output enables industrial application and it supports hot swapping and hot plugging. Using full digital non-compression broadcast level transmission, fiber optic WDM/CWDM/DWDM technique and a super optic dynamic range, troubleshooting and monitoring is easy.
Technical Parameters:
| Fiber Optical interface | |
| Fiber interface | Simplex LC |
| Transmission distance | 550m-20Km |
| Wavelength | 1310nm/1550nm |
| Video | |
| Video interface | BNC |
| Video input/output impedance | 75Ω |
| Video input/output voltage | Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
| Video Bits Rate | Max 3.2Gb/s |
| Differential gain (10%～90% APL) | <1% |
| SDI format support | 625/25 PAL |
| 525/29.97 NTSC, 525/23.98 NTSC | |
| 720p50, 720p59.94 | |
| 1080i 23/24/30/50/59.94 | |
| 1080P 23.98/24/30/50/60 | |
| Video SDI standard | 270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
| SMPTE425M3Gb/s Mapping(3G-SDI) | |
| SMPTE424M 3Gb/s serial interface(3G-SDI) | |
| Data | |
| Physical interface | Industrial standard screw terminal |
| Data type | Reverse RS485 |
| Frequency/Rate support | Max. 57600bps for RS485 |
| BER | <10ˉ9 |
| Electrical | |
| Power adaptor | AC 110~220V |
| Power consumption | <15W |
| LED Indicator | |
| SDI A/B/C/D/E/F/G/H | SDI video |
| PWR | Power Supply |
| Mechanical | |
| Dimensions (LxWxH) | 19inch 1U (483 x 220 x 44.45mm ) |
| Weight | 7KG/pair |
| Casing | Aluminum Case |
| Mounting Options | Rackmount |
| Environmental | |
| Working Temperature | -20℃～+70℃ |
| Storage Temperature | -40℃～+80℃ |
| Working Humidity | 0~95% |
| MTBF | ≥100000 hours |

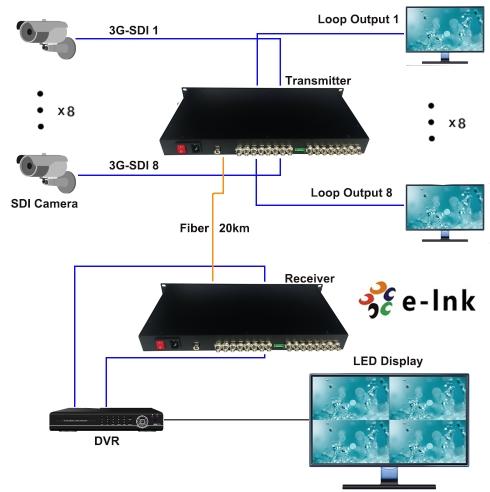

Applications:
Support and Services:
We provide technical support and service for our SDI Fiber Converter. Our support team is available to answer any questions you may have about our product.
Our team provides technical assistance with installation, configuration, and troubleshooting. We also offer a variety of training materials, including product manuals, online tutorials, and video support.
We strive to provide the highest level of customer service and ensure that our customers are receiving the best possible experience with our product.
Packing and Shipping:
SDI Fiber Converter products should be properly packaged and shipped to ensure the safe delivery of the product. The following steps should be followed when packaging and shipping SDI Fiber Converter products:
- Inspect the product for any damage before packaging.
- Package the product in a corrugated box with foam inserts or other appropriate packaging material.
- Securely seal the package to ensure that it is water-resistant and dust-proof.
- Label the package with the proper shipping information.
- Ship the package with a reputable shipping carrier, such as UPS, FedEx, or DHL.
Ordering Information:
| Model | Description |
| LNK-SDI-8V | 19" 1U 8-Ch HD-SDI Video with Loop-out, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs |
| LNK-SDI-8V1R | 19" 1U 8-Ch HD-SDI Video with Loop-out + 1-Ch RS485 Reverse Data, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs |
| LNK-SDI-8V1A | 19" 1U 8-Ch HD-SDI Video with Loop-out + 1-Ch Forward Audio, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs |
| LNK-3GSDI-8V | 19" 1U 8-Ch 3G-SDI 1080P Video with Loop-out, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs |
| LNK-3GSDI-8V1R | 19" 1U 8-Ch 3G-SDI 1080P Video with Loop-out + 1-Ch RS485 Reverse Data, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs |
| LNK-3GSDI-8V1A | 19" 1U 8-Ch 3G-SDI 1080P Video with Loop-out + 1-Ch Forward Audio, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs |
