HD-SDI Video Extender over CAT5 / 6 Kit Supports SDI-SMPTE 259M-C (270Mbps)
HD-SDI Video Extender over CAT5 / 6 Kit Supports SDI-SMPTE
259M-C (270Mbps)
SDI Fiber Converter Advantages:
► SDI Standard: HD-SDI, SD-SDI
► Up to 50m / 160ft via CAT5e cable
► Up to 60m / 200ft via CAT6 cable
► Supports SDI-SMPTE 259M-C (270Mbps);
► HD-SDI-SMPTE 292M (1.485, 1.485 / 1.001 Gbps)
► LED diagnostics: sync, SDI auto-detection
Overview
LNK-DTS050 allows HD-SDI signal to be transmitted up to 60m / 200ft via CAT5/CAT6 cable
in a point-to-point configuration. The SDI-UTP Extender supports video bandwidth up to 1.485
Gbps uncompressed, un-encrypted digital video (optionally including embedded Audio and/or
Time Code) , widely applied to television facilities and professional video equipment.

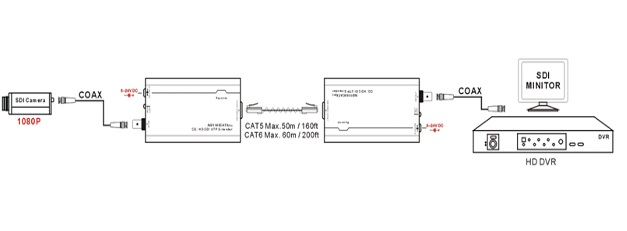

Application
Technical Indexes
| Model | LNK-DTS050 | |
| Type | Transmitter | Receiver |
| Standard Supported | SMPTE 259M (270Mb/s), SMPTE 292M | |
| Speed | 270Mb/s, 1.485Gb/s (automatic selection) | |
| Support Input Format | SD: 525i @ 59.94Hz, 625i @ 50Hz | |
| HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz | ||
| 720p @ 50Hz / 59.94Hz / 60Hz | ||
| 1080i @ 50Hz / 59.94Hz / 60Hz | ||
| 1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz | ||
| @24 Hz, 1080p @25 Hz, 1080p @29.97 Hz, 1080p @30Hz | ||
| Indicators | Power on (on both end) | |
| Sync detection (on both end) | ||
| Link between the two units working (on both end) | ||
| Connectors | 1x BNC 75 ohm female | |
| 1x RJ45 of CAT5e/6 unshielded or shielded twisted pair | ||
| 1x power plug, 2.1mm | ||
| Maximum Distance | All resolutions | |
| CAT5 UTP/STP: 50m / 160ft | ||
| CAT6 UTP/STP: 60m / 200ft | ||
| Power Supply | DC12V/1A | |
| Power Consumption | 2.5W (Tx and Rx) | |
| Operating Temperature | -10°C ~ 60°C / 14°F ~ 140°F | |
| Storage Temperature | -30°C ~ 70°C / -22°F ~158°F | |
| Dimensions (L*W*H) | 98 x 65 x 28mm / 3.85x 2.55 x 1.1 inches | |
| Part No | Description of product |
| LNK-DTS050-T | SD/HD-SDI Video Extender over CAT5/ 6 Kit Transmitter; |
| LNK-DTS050-R | SD/HD-SDI Video Extender over CAT5/ 6 Kit Receiver |
