1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO Over Fiber Extender
HDMI Fiber Extender Abvantages

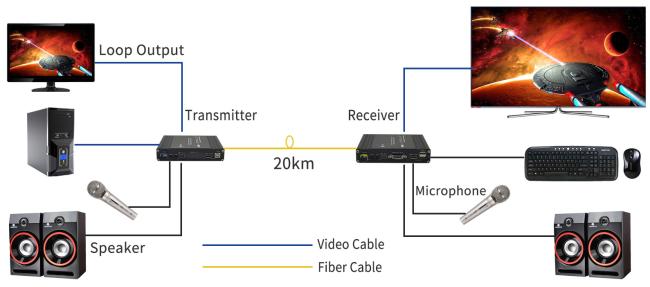

► Transmits HDMI video signals up to 20km over one fiber optic cable;
► Support video resolution up to 1920*1080P@60Hz;
► Support keyboard and mouse signal transmission;
► Support external stereo audio bi-directional transmission;
► Support RS232 signal unidirectional transmission, baud rate can be up to 460,800bps;
Technical Indexes
| Parameter | Description | |
| Video | Standards | HDMI V1.3 |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 2.97Gbps | |
| Resolution |
1920*1080@60Hz 1920*1080@50Hz 1920*1080@30Hz 1920*1080@25Hz 1920*1080@24Hz 1080I@60Hz 1080I@50Hz 1280*720@60Hz 1280*720@50Hz |
|
| Connector | HDMI | |
| Impedance | 100Ω | |
| Audio | Interface | 3.5mm earphone seat |
| Signal type | Stereo | |
Overview
The LNK-KVM-HDMI-1D1BA1GO Fiber optic extender provides extension of HDMI signals long distances over one fiber op-
tic cable, it supports high resolution up to 1080P, KVM, RS232, GPIO signal and external audio transmission function.
Ordering Information
| Model | Description |
| LNK-KVM-HDMI-1D1BA1GO | 1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender, HDMI Loop Out, SMF, 20KM |
| LNK-HDMI-1D1BA | 1Ch 1080P HDMI + 1Ch RS232 + 1Ch Bidi Stereo Audio over Fiber Extender, HDMI Loop Out, SMF, 20KM |
