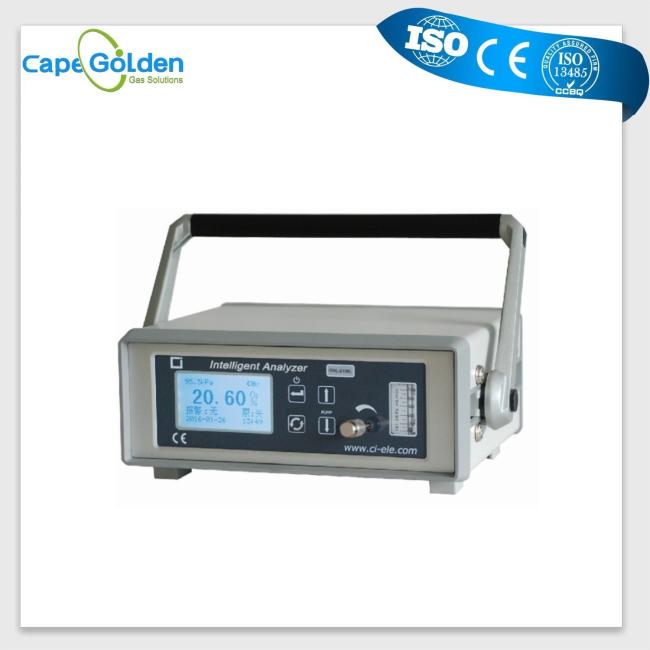

GNL-2100L Portable High Content Oxygen Analyzer

Instruction :

GNL-2100L purity oxygen analyzer is with ion current principle, which is capable of oxygen purity measurement range 10-99.99%.

GNL - 2100L use 3D ion current sensor for measuring unit, through the sensor signal amplifying, filtering, linearization correction after electric processing, through the microprocessor calculated nitrogen oxygen mixed gas concentration of o2, and provides the oxygen concentration. Analyzer with high precision, good stability, long life and other characteristics, suitable for a variety of environments, nitrogen and oxygen mixed gas of oxygen concentration measurement.

Features

• with microprocessor as the core, 3D ion current sensor for measuring unit, with intelligent, good stability, high precision, calibration cycle is long, etc;
• Display intuitive, rich: 128 x 64 LCD screen window shows oxygen concentration, menus, data and equipment working status, display intuitive, rich in content;
• Technology, using the latest touch buttons, easy to operate, buttons with long life;
• Long standby time: built-in high capacity lithium battery, normal use, standby time is not less than 8 hours;
• Change analyzer menu lock switch: to prevent wrong operation parameter affect the normal operation;
• Alarm function: such as oxygen concentration deviates from the value of the set alarm, the analyzer will send out alarm, alarm value can be set up in full scale range.

Technical Specifications

Model: GNL-2100L

Measure Range: 10-99.99% O₂

Principle: 3D Ion flow oxygen sensor

Measure Mode: Portable

Install: Dial mounted

Application: Non dangerous general applications

Measure Accuracy: ≤±1% F.S.

Repeatability: ≤±0.5% F.S.

Stability: ≤±0.5% F.S./7d

Response Time: T90<20s (after full preheating)

Display Resolution: 0.01%

Standby time: more than 8hours

Sensor life: more than 2years (normal use)

Instrument life: more than 5years (normal use)

Power Supply: AC85~264V, 50/HZ

Analyzer power consumption: <25VA

Display: 128*64 LCD

Keys: Four keys (touch keys)

Environment Temperature: -10~45℃

Sample Gas Flow: 400~600ml/min

Sample Gas Pressure: atmospheric conditionst +/-10%(Gas outlet should be atmospheric conditions)

Alarm output: 1 set,Relay contact point capacity:24VDC,0.2A

Analog output: 1 set,4-20mA/0-20mA/0-1V/0-5V/0-10V/1-5V,(You can set the mode freely).

Communication: RS485(standard)/RS232(optional)

Application:

• It is widely used in air separation industry,such as pressure swing adsorption(PSA)nitrogen production;
• Chemical and smelting industries;
• Medical and health industry,such as hyperbsaric oxygen chamber,infant incubator,ventilator, anesthesia machine;
• Determination of oxygen concentration in family,ship,underground command center, tunnel,deep well,civil air defense engineering,city tunnel,etc.
