Containerized oxygen production plant

Product Details

containerized oxygen generator is an oxygen generating system which is built in ISO container.The oxygen is produced from compressed air by pressure swing adsorbtion (PSA) technology. This technology separates oxygen from other gases in the air under pressure. The compressed air system as well as the oxygen separation system is integrated in the container and represent a compact solution for those who do not have a space for an oxygen generating system within their building or need oxygen production plant in severe conditions.
cape golden containerized oxygen generator, as the one only manufacturer of containerized solutions for oxygen generation, IN-HOUSE. This means, we control every step of our production and therefore make sure everything is done under our standards.

Features of the containerized plant
Transportable (pass for fork-lift and bolt-on ISO corners) Turnkey,
Plug&play solution,
Designed for outdoors - the container is an excellent protection against rain and sun,
Automatic start and stop operation,
Standard outlet pressure 4 barG; higher pressure available on request
The unit can be equipped with surveillance system and audio / visual alarm as an option.

Technical Specification
Capacity: 5 to 100 Nm3/h
Purity: 90%, 93%, 95%

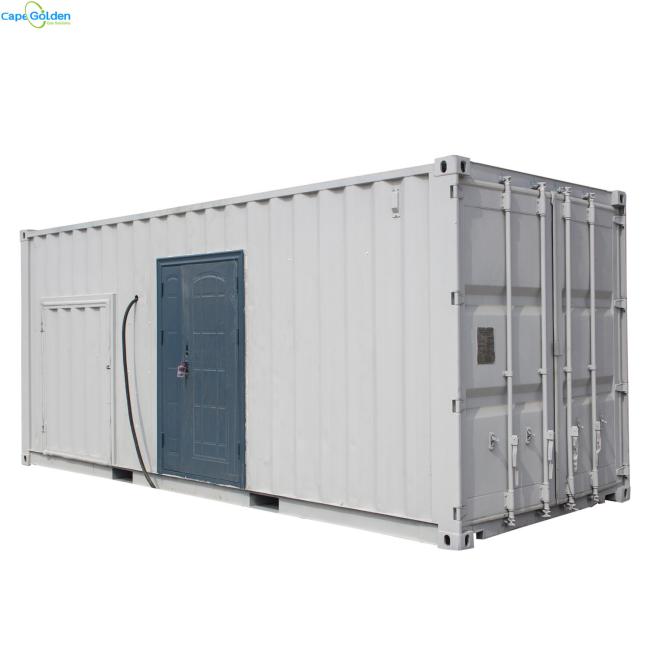

ISO container: standard 10ft. , 20ft. or 40ft.
Operating costs: 1.1 kWh/Nm3

The unit designed for high ambient temperatures is furnished with container insulation and air conditioning; the surface is treated with special coating.
Oxygen from this containerized oxygen generating unit is being used in many applications like health-care, fish farming, ozone, sewage water, glass works, pulp-and-paper etc.
Mobile oxygen generator is preferred compact solution design for outdoors. It can be placed on the roof of the building or in the remote area. If you have specific requirements, do not hesitate to contact us and we will design you a solution to meet your requirements.
