Oxygen Oxigen Making Filling Machine Generator for Hospital oxygen cylinder filling plant

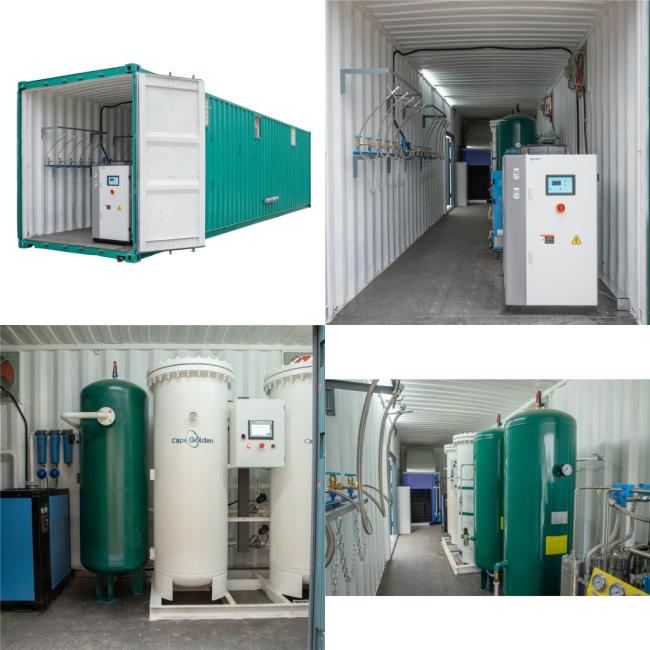

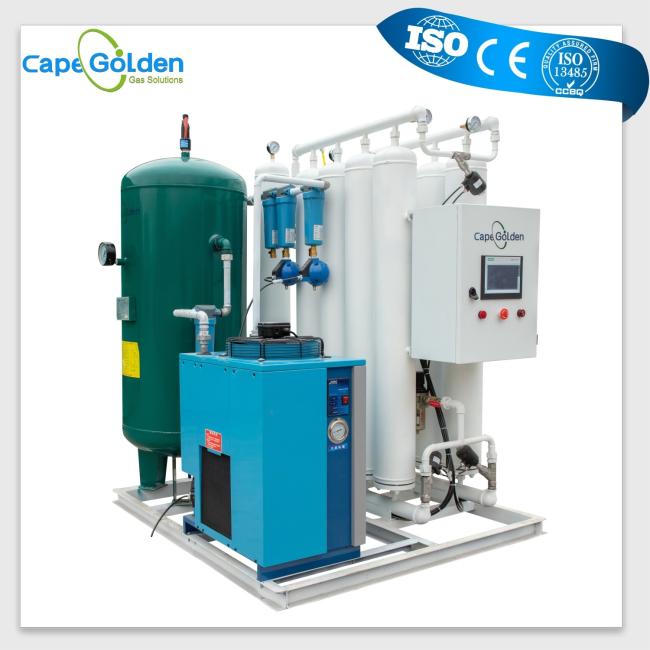

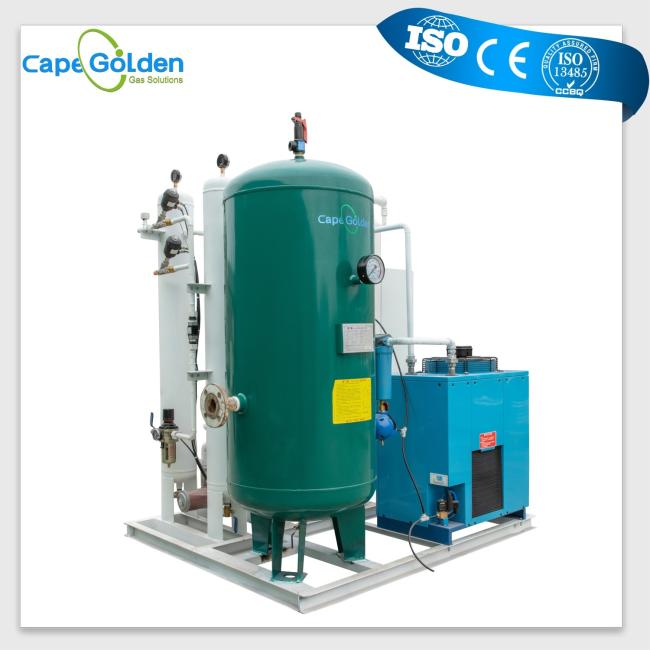

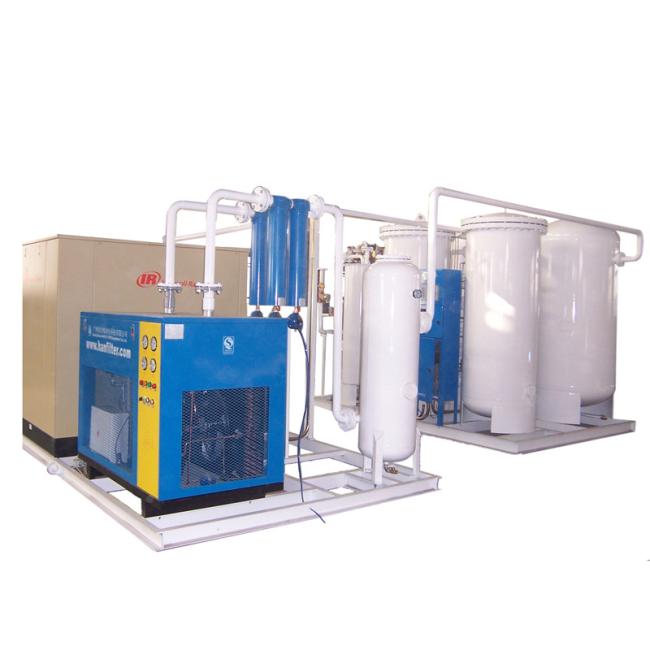

A full Oxygen Generator installation requires air compressor, refrigerated air dryer, filters, air tank, oxygen generator and gas buffer tanks.
We supply full Oxygen Generator installations but each component, and other optional supply like boosters, high pressure compressors, oxygen cylinders or filling stations can also be bought separately.
Technical Features
Cape-Golden offers a wide range of Oxygen Generator especially designed for hospital piping systems. Our products support the hospital needs continuously in its daily work, with simple operation, little management, stable running, opening up a new dimension in safety, efficiency, quality and cost saving.
| Fully Autonomy | No more gas supply constraints |
| High Security Level | No heavy cylinders to handle |
| no high pressure storage | |
| no combustive gas in bulk | |
| no rupture of supply chain | |
| Cost Saving | the investment in an oxygen generator solution is usually recovered in less than 1 year |
Service and Support
*We will answer calls and receive consultation documents from customer politely and earnestly, to know exactly about customers' site situation and technical requirements, and record all data in detail.
*We will carefully analyze the information supplied by customers, to provide catalog and technical proposal in time.
*We will contact customers regularly, actually knowing about the progress, thus can provide reasonable suggestions, to help customers reducing costs.
*We sincerely invite customers to visit our company, participating in technical discussion, to determine the best solution.
*If any trouble occurred during the equipment running period, our technicians will communicate with customers and help solve the problem in time.
*We will send technicians to help customers install, debug the equipment and train workers, until the workers are familiar with the operation, technical principle and simple maintenance of the system.
*All the equipment has 18-month warranty from delivery date.
*During the equipment running period, we will contact customers and ask for feedback regularly.
Selection Table
| CAPE GOLDEN® PSA Oxygen generator for refilling cylinders | |||||
| Model | Qty of cylinders (pieces/day--24hours) Cyinders: 40L/150bar (storage 6000L gas) |
Purity(%) (90%,93%, 95%, 99% optional) |
Flow Rate ( Nm3/h) |
Flow Rate ( Liter/h) |
Flow Rate ( Liter/min) |
| CAOG-3 | 12 | 93~99 | 3 | 3,000 | 50 |
| CAOG-5 | 20 | 93~99 | 5 | 5,000 | 83 |
| CAOG-10 | 40 | 93~99 | 10 | 10,000 | 167 |
| CAOG-15 | 60 | 93~99 | 15 | 15,000 | 250 |
| CAOG-20 | 80 | 93~99 | 20 | 20,000 | 333 |
| CAOG-25 | 100 | 93~99 | 25 | 25,000 | 417 |
| CAOG-30 | 120 | 93~99 | 30 | 30,000 | 500 |
| CAOG-35 | 145 | 93~99 | 35 | 35,000 | 583 |
| CAOG-40 | 160 | 93~99 | 40 | 40,000 | 667 |
| CAOG-45 | 180 | 93~99 | 45 | 45,000 | 750 |
| CAOG-50 | 200 | 93~99 | 50 | 50,000 | 833 |
| CAOG-60 | 240 | 93~95 | 60 | 60,000 | 1,000 |
| CAOG-70 | 280 | 93~95 | 70 | 70,000 | 1,167 |
| CAOG-80 | 320 | 93~95 | 80 | 80,000 | 1,333 |
| CAOG-90 | 360 | 93~95 | 90 | 90,000 | 1,500 |
| CAOG-100 | 400 | 93~95 | 100 | 100,000 | 1,667 |
| CAOG-120 | 480 | 93~95 | 120 | 120,000 | 2,000 |
| CAOG-150 | 600 | 93~95 | 150 | 150,000 | 2,500 |
