200nm3 Generation Psa Oxygen Machine For Aquaculture Industries
200nm3 industries psa oxygen generation machine for aquaculture

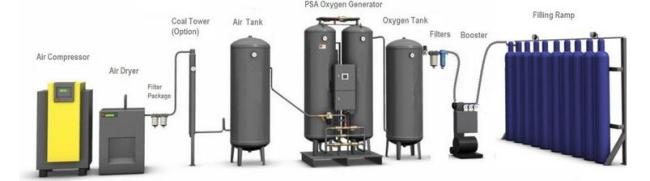

Cape-Golden oxygen generator system produces oxygen at purity about 93~99%, and the capacity can be from 1~300Nm3/hour. The system incorporates an Atlas Copco screw air compressor, JMEC refrigerated air dryer and Parker filters, oxygen generator air buffer tank, oxygen buffer tank, oxygen booster.
Our oxygen generators provide oxygen for medical and commercial applications worldwide.
For more than 15 years, our oxygen generator company has manufactured oxygen generators in purities up to 99%. Our rugged and reliable oxygen generators are precision-tuned and ideally suited for a range of commercial applications.
Work Principle
The PSA oxygen technology process for the generation of oxygen gas from compressed air utilizes the ability of Zeolite Molecular Sieve (ZMS) to absorb mainly nitrogen. While nitrogen concentrates in the pore system of the ZMS, the qualified purity of oxygen will be produced.
Customers Site:
Our Factory:
Selection Table :
| CAPE GOLDEN® PSA Oxygen generator for refilling cylinders | |||||
| Model | Qty of cylinders (pieces/day--24hours) Cyinders: 40L/150bar (storage 6000L gas) |
Purity(%) (90%,93%, 95%, 99% optional) |
Flow Rate ( Nm3/h) |
Flow Rate ( Liter/h) |
Flow Rate ( Liter/min) |
| CAOG-3 | 12 | 93~99 | 3 | 3,000 | 50 |
| CAOG-5 | 20 | 93~99 | 5 | 5,000 | 83 |
| CAOG-10 | 40 | 93~99 | 10 | 10,000 | 167 |
| CAOG-15 | 60 | 93~99 | 15 | 15,000 | 250 |
| CAOG-20 | 80 | 93~99 | 20 | 20,000 | 333 |
| CAOG-25 | 100 | 93~99 | 25 | 25,000 | 417 |
| CAOG-30 | 120 | 93~99 | 30 | 30,000 | 500 |
| CAOG-35 | 145 | 93~99 | 35 | 35,000 | 583 |
| CAOG-40 | 160 | 93~99 | 40 | 40,000 | 667 |
| CAOG-45 | 180 | 93~99 | 45 | 45,000 | 750 |
| CAOG-50 | 200 | 93~99 | 50 | 50,000 | 833 |
| CAOG-60 | 240 | 93~95 | 60 | 60,000 | 1,000 |
| CAOG-70 | 280 | 93~95 | 70 | 70,000 | 1,167 |
| CAOG-80 | 320 | 93~95 | 80 | 80,000 | 1,333 |
| CAOG-90 | 360 | 93~95 | 90 | 90,000 | 1,500 |
| CAOG-100 | 400 | 93~95 | 100 | 100,000 | 1,667 |
| CAOG-120 | 480 | 93~95 | 120 | 120,000 | 2,000 |
| CAOG-150 | 600 | 93~95 | 150 | 150,000 | 2,500 |
| Remark: Cylinders capacity is 6m3 | |||||
Delivery:
