High Performance Generation Water Ozone System 220v For Drinking Water Bottling
Price:
$1350~$1500 Per pcs
MOQ:
1 SET
Delivery Time:
3~5WEEK
Brand:
cape-golden
Product Description

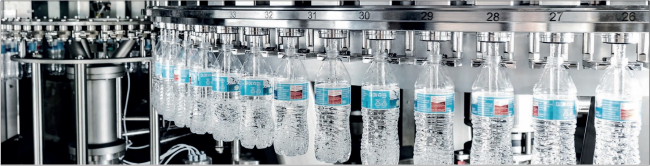

high performance water ozone generation system for drinking water bottling

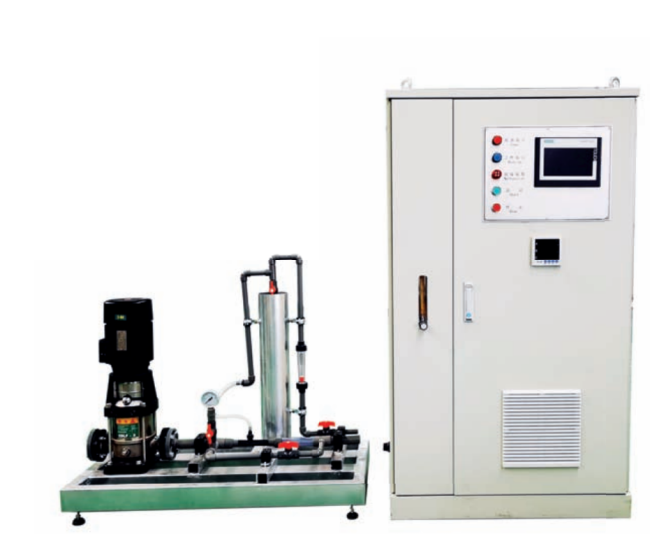

Ozone Generator

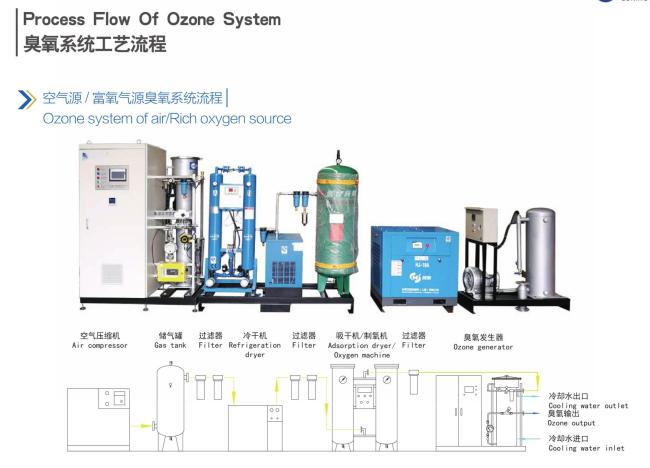

- Gas source system uses PSA oxygen generator to increase ozone concentration.
- Ozone unit adopts modular design, easy to maintain.
- Discharge tube uses glass tube imported from Germany to extend service life.
- The electrical components are treated with moisture to reduce corrosion in the humid environment of the equipment room.
- Using PLC control to realize unattended, automatic start and stop Builtin booster pump and jet, easy to install.
| Ozone Output: | 60g/h | Oxygen Consumption: |
10L/min (Built-in oxygen generator) |
| Ozone Concentration: | 100mg/L | Oxygen Pressure: | 0.05mpa |
| Power Supply: | 220V/50HZ | Size: | 600*600*1450mm |
| Running Power rate: | 2kw | Weight: | 120kg |
| Flow of Cooling Water: | 0.5m³/h | O2 inlet/O3 outlet pipe | DN15 |
| Cooling Water Temp.: | ＜28℃ | Water inlet/outlet pipe | DN15 |
| Discharge Mode: | High Frequency and High voltage | Material of ozone chamber: | Stainless Steel 304 |
| Material of electrode: | Stainless Steel 316 | ||
| Material of dieletric: | Quartz Glass Tubes |
Main parts (Including, but not limited)
| Name | Sepecification | QTY |
| Equipment cabinet | 600*600*1450mm | 1pcs |
| PLC touch screen | Siemens | 1set |
| Quartz glass tubes | 1set | |
| SS316L tubes | OT-50 | 1set |
| SS316 Ozone generator chamber | 1set | |
| High frequency inverter | 1pcs | |
| Transformer | 1pcs | |
| Pressure meter | 1pcs | |
| Current meter | 1pcs | |
| Flow meter | 1pcs | |
| Power on/off button | 1pcs | |
| Alarm | 1pcs | |
| Needle valve | 1pcs | |
| Built-in oxygen generator | 10L/min | 1sets |
| Water controller | 1pcs | |
| Chiller | 1.5kw | 1set |
