OED OEM Tungsten Carbide Wear Parts Bushing For Pump Machine
Tungsten Carbide Bushing For Pump Machine Carbide Wear Parts Of Oil Gas Industries
Carbide sleeve is widely used in special valve industry, with long service life and reliable quality.

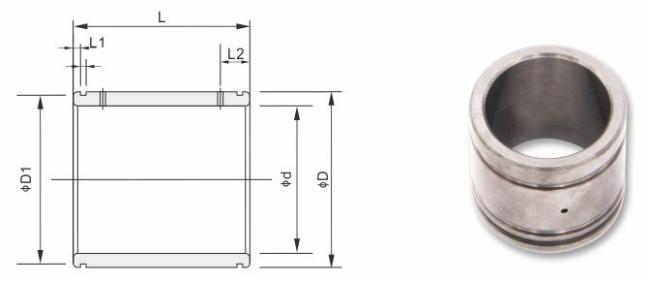

Normal cylindrical axle sleeve, cylindrical axle seelve with slot, axle sleeve with convex stage, axle sleeve with slot and convex stage, non-standard axle sleeve etc.
Carbide has high hardness, high wear resistance and corrosion resistance, compared to silicon carbide wear resistance is higher, so widely used in oil fields, mines, exploration and other high temperature and high pressure environment,
Carbide wear parts for oil and gas industry, wellhead assembly, such as multistage choke manifold, multistage blow down processing, products such as small bits, choke bean, core and seat, plates for throttle valve, explosion proof sleeves, orifice plate, lagging, blasting nozzle, half ball, etc.
- Recommened carbide grades for Oil/Gas wear parts:
Cobalt Binder Grades
| Grade | Binder (Wt %) |
Density (g/cm3) |
Hardness (HRA) |
TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90 | 1520 |
| YG6X | 6 | 14.9 | 91 | 1450 |
| YG6A | 6 | 14.9 | 92 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88 | 1810 |
| YG15 | 15 | 14 | 87 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84 | 2550 |
Nickel Binder Grades
| Grade | Binder (Wt %) |
Density (g/cm3) |
Hardness (HRA) |
TRS (≥N/mm²) |
| YN6 | 6 | 14.7 | 89.5 | 1460 |
| YN6X | 6 | 14.8 | 90.5 | 1400 |
| YN6A | 6 | 14.8 | 91 | 1480 |
| YN8 | 8 | 14.6 | 88.5 | 1710 |
