G20 Tungsten Carbide Bushings With Precision Ground Roundness 0.01 Wear Parts
Price:
negotiable
MOQ:
Small qty of amples are available.
Delivery Time:
Standard products in one week, special tools in 45 days
Brand:
OED/OEM
Product Description

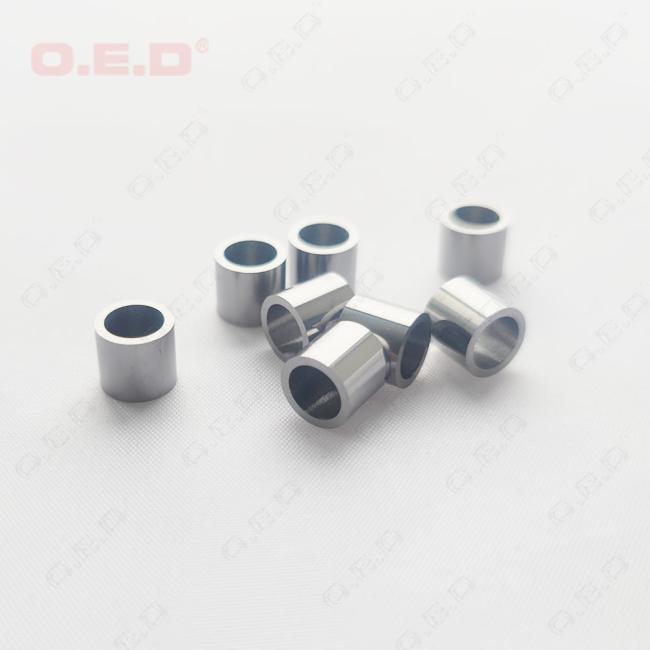

G20 Tungsten Carbide Bushings With Precision Ground Roundness 0.01 Wear Parts
Finished ground with precision tolerances
Outer diameter 10mm
Inner diameter 6mm
Height 13mm
Roundness 0.01mm
Roughness Ra 0.2
Precision bushings as wear parts for machines spare parts. OED can produce the bushings OD from 6mm to 100mm, and the height could be 10 times the inner diameter.
Raw sintered or finished ground are all available. Production time is short as we are really professional in producing these products. Welcome to send your drawings for more details.
Regular Carbide Grades:
| Wear part grades | Grade | ISO Grade | Co | Density | Hardness | T.R.S. | Grain size |
| OK05UF | K05 | 6.00 | 14.90 | 93.20 | 3000 | Ultra Fine | |
| OK10F | K10-K20 | 6.00 | 14.90 | 92.00 | 2000 | Middle/Fine | |
| OK30M | K30 | 8.00 | 14.80 | 91.50 | 2200 | Fine | |
| OK40F | K40 | 10.00 | 14.45 | 91.90 | 3400 | Middle/Fine | |
| OK50M | K50 | 12.00 | 14.25 | 90.00 | 3500 | Fine | |
| OG30M | G10 | 8.00 | 14.70 | 91.00 | 2100 | Middle | |
| OG60M | G20 | 11.00 | 14.40 | 89.00 | 2400 | Middle | |
| OG70M | G30 | 15.00 | 14.20 | 86.70 | 2800 | Middle | |
| OG80M | G40 | 20.00 | 13.65 | 85.00 | 3000 | Middle | |
| OG90M | G50 | 25.00 | 13.20 | 84.20 | 3200 | Middle |
Corrosion resistance grades:
| Corrosion-resistant grades | Grade | Ni+Co | Density | Hardness | Hardness | T.R.S. | Grain size |
| HRA | HV30 | ||||||
| ON10 | 5.50 | 14.80 | 90.90 | 1,480 | ＞1450 | Middle | |
| ON20 | 6.00 | 14.80 | 90.80 | 1,460 | ＞1600 | Middle | |
| ON30 | 7.50 | 14.65 | 90.30 | 1,410 | ＞1800 | Middle | |
| ON40 | 9.00 | 14.55 | 89.20 | 1,310 | ＞2150 | Middle | |
| ON50 | 10.00 | 14.40 | 89.00 | 1,300 | ＞2300 | Middle | |
| ON60 | 11.00 | 14.20 | 88.50 | 1,250 | ＞2450 | Middle | |
| ON70 | 15.00 | 13.15 | 84.10 | 950 | ＞2650 | Middle |
