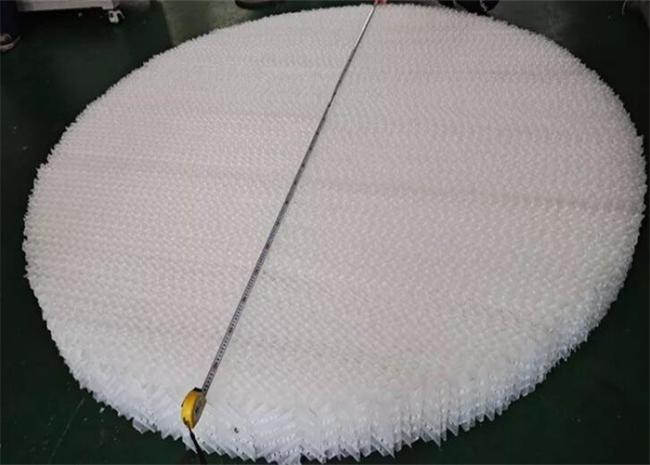

PP High Capacity Perforated Plate Packing plastic Structured Packing
PP High Capacity Perforated Plate Packing Plastic Structured Packing
The surface of the packing is pressed with a special stripe, and the selection of the packing is based on the operating conditions. The corrugated plate is an improved corrugated plate. The corrugated plate shall be installed vertically parallel to the longitudinal axis of the container. The corrugated direction on the plate is 30°-60° with the length direction of the plate. The ripples on the same corrugated plate are parallel to each other; The corrugations of the adjacent plates form an intersection. When the fluid flows in this part, it moves up and down, which helps to coalesce, float up or settle the dispersed phase droplets, and greatly improves the processing capacity and separation efficiency. The materials used for the filler are polypropylene, polyethylene, polyvinyl chloride and reinforced polypropylene.
Plastic perforated plate packing is mainly used in oil and water separation process in oil fields and refineries.
Specification
| Packing type | Theoretical Plate Number(piece/m) |
Surface area (m²/m³) |
Void Volume (m³) |
Bulk Density (kg/m³) |
Liquid Loading(m³/m²·h |
| 125Y | 1-2 | 125 | 0.985 | 37.5 | 0.2-100 |
| 250Y | 2-2.5 | 250 | 0.97 | 75 | 0.2-100 |
| 350Y | 3.5-4 | 350 | 0.95 | 105 | 0.2-100 |
| 500Y | 4-4.5 | 500 | 0.93 | 150 | 0.2-100 |
| 125X | 0.8-1.9 | 125 | 0.985 | 37.5 | 0.2-100 |
| 250X | 1.5-2 | 250 | 0.97 | 75 | 0.2-100 |
| 350X | 2.3-2.8 | 350 | 0.958 | 105 | 0.2-100 |
| 500X | 2.8-3.2 | 500 | 0.93 | 150 | 0.2-100 |
Advantages
High efficiency, high capacity and low-pressure drop as metal structured packing.
Excellent corrosion resistance performance to be used in high corrosive applications.
Better high-temperature resistance than metal structured packing and ceramic structured packing. The working temperature of PP packings can reach 100 °C and PVDF packings can reach 150 °C.
Perforated plates packings with small holes on the surface increase mass transfer efficiency.
High sheet stiffness of no perforation packings in fewer separation requirements applications.
Applications
Air separation plant direct contact cooler.
Flue gas cooler.
Seawater scrubber.
HCl absorber.
SO2 absorber.
ClO/ClO2 scrubber.
Deaerators.
