High Capacity Ceramic Random Packing 25mm-80mm For Petrochemical Industry
Ceramic Material Higher Capacity Ceramic Pall Ring Ceramic Random Packing

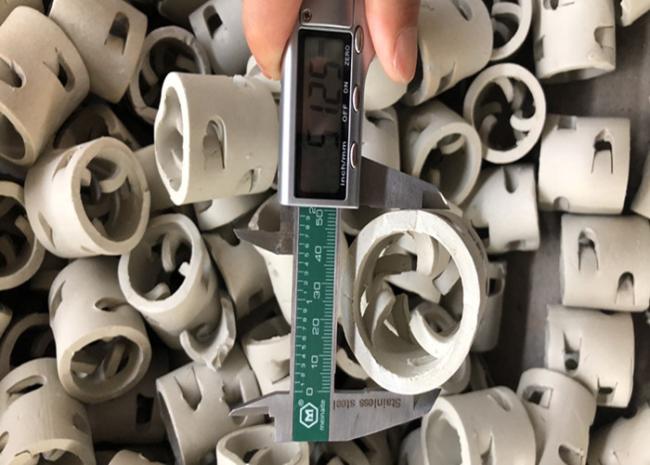

Ceramic Pall ring is the advanced products of ceramic Raschig ring. Compared with ceramic Raschig ring, there are two layers of window on the cylinder wall. And each layer has five ligules bending inward.
This design makes the surface area and voidage be improved and the porosity be evenly distributed. Additional, it has greater capacity and lower pressure drop than ceramic raschig ring.
Specifications
| Chemical properties of Ceramic Pall Ring | |||
| SiO2+ Al2O3 | > 92% | CaO | < 1.0% |
| SiO2 | > 76% | MgO | < 0.5% |
| Al2O3 | > 17% | K2O + Na2O | < 3.5% |
| Fe2O3 | < 1.0% | Other | < 1% |
| Physical Properties of Ceramic Pall Ring | |||
| Water Absorption | < 0.5% | Moh's Hardness | > 6.5 scale |
| Porosity | < 1% | Acid Resistance | > 99.6% |
| Specific Gravity | 2.3–2.4 g/cm3 | Alkali Resistance | > 85% |
| Max. Operation Temp. | 1200 °C | ||
| Common Specifications of Ceramic Pall Ring | ||||||
| Item |
Diameter (mm) |
Thickness (mm) |
Surface Area (m2/m3) |
Free Volume (%) |
Number (pcs/m3) |
Bulk Density (kg/m3) |
| CPR-01 | 25 | 3 | 210 | 73 | 53500 | 700 |
| CPR-02 | 38 | 4 | 180 | 75 | 15000 | 650 |
| CPR-03 | 50 | 5 | 130 | 78 | 6800 | 600 |
| CPR-04 | 80 | 8 | 110 | 81 | 1950 | 550 |
Features
- Excellent heat and acid resistance.
- Higher capacity.
- Lower pressure drop.
- Evenly distributed porosity and fluid.
Applications
- Ceramic pall ring can be used in high or low-temperature conditions.
- It can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers in chemical industry, metallurgy industry, coal gas industry, oxygen producing industries, etc.
