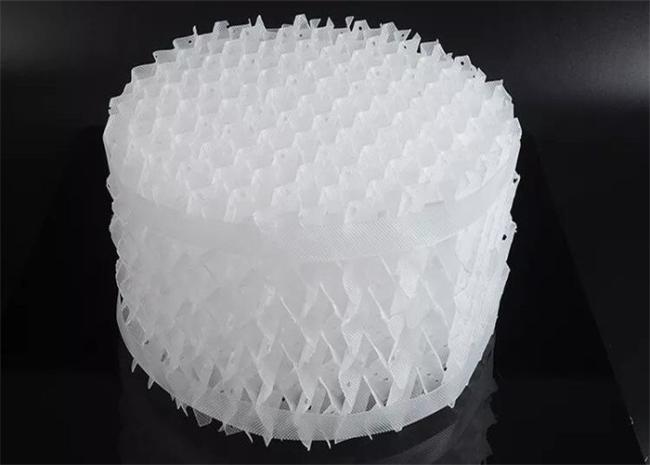

500Y PP Plastic Structured Packing
High compressive strength 500Y PP Structured Packing Plastic Structured Packing
Plastic perforated plate packing has similar structure with metal structured packing, which can be divided into plate packings and wire gauze packings. Plastic structured packing can be made of PP, PA, PVDF, CPVC and other plastic materials, which has excellent high temperature resistance performance and corrosion resistance performance. It is an alternative to ceramic structured packing.
Application
This packing is widely used in the operation of absorption and decomposing absorption units, it's especially used in the production procedure of heavy liquid loading and high operative pressure, such as hydrochloric acid (HCl) and sulphuric acid(H2SO4) production, deaerating CO2 and H2S from natural gas, drying chlorine, making ammonia liquid, waste gases purification and decomposing absorption deaeration apparatus.HCI absorbers,SO2 absorbers,Flue gas cleaning columns,Sea water deaerators.
Specification
| Packing type | Theoretical Plate Number(piece/m) |
Surface area (m²/m³) |
Void Volume (m³) |
Bulk Density (kg/m³) |
Liquid Loading(m³/m²·h |
| 125Y | 1-2 | 125 | 0.985 | 37.5 | 0.2-100 |
| 250Y | 2-2.5 | 250 | 0.97 | 75 | 0.2-100 |
| 350Y | 3.5-4 | 350 | 0.95 | 105 | 0.2-100 |
| 500Y | 4-4.5 | 500 | 0.93 | 150 | 0.2-100 |
| 125X | 0.8-1.9 | 125 | 0.985 | 37.5 | 0.2-100 |
| 250X | 1.5-2 | 250 | 0.97 | 75 | 0.2-100 |
| 350X | 2.3-2.8 | 350 | 0.958 | 105 | 0.2-100 |
| 500X | 2.8-3.2 | 500 | 0.93 | 150 | 0.2-100 |
Our Company
Boeeger Industech Limied, build in 2004, has 17 years of export experience, is a ONE-STOP SUPPLIER OF PACKING PRODUCTS. We are located in the hometown of China's wire mesh, close to Beijing airport and Tianjin port, so it is convenient and fast transportation. No matter how large or small your company is, you can find products suitable for you here, and you don’t need to worry about payment, quality inspection, packaging and shipment. We have a professional team to provide you with the best solution to solve all your problems.
For over 17 years, Boegger has been providing filtration solutions to a wide range of filtering industries where perfume, essence, oil, etc. Our Major products include grid structured packing, wire gauze structured packing, perforated plate corrugated packing and plate net corrugated packing, etc.To meet different filtration requirements, we deal with a variety of raw materials, steel, stainless steel, non-ferrous metals and special materials.
For special using, we also handle custom fabricated needs.Our well-trained staff have an extensive knowledge of the filtering industry and are always willing to assist with our customer’s needs.
When quality at the right price counts, make it Boegger!
Our service
1. We promise to reply your inquiry relational our product within 24hours(Email, Trademanager, Skype, MSN, WhatsApp, Telphone).
2. OEM&ODM service for your unique idea with absolutely convenient.
3. Experienced foreign trader with professional product knowledge.
4. Excellent quality is our first pursuite, we have strict quality contral by our QC team.
5. Shipment by sea or by air or by express, according to your require make a plan.
6. Flexible and diverse payment ways can be chosen, make you more convenient
FAQ
Q1:What's your MOQ?
A1:Our MOQ is no less than one cubic meter
Q2: What's your available material?
A2: Our available material can do PP ,PE, PPH, PVDF, PTFE,also customized material can do
Q3:What's your available size?
A3: We can produce different size according to your packed bed
Q4: What's your standard package?
A4: Our export standard package is pallet or wooden case
Q5: What's your delivery time?
A5: Generally speaking, we will delivery all within 15 days .
