SS 304L Metal Random Packing 6mm-89mm High Metal Raschig Ring Column

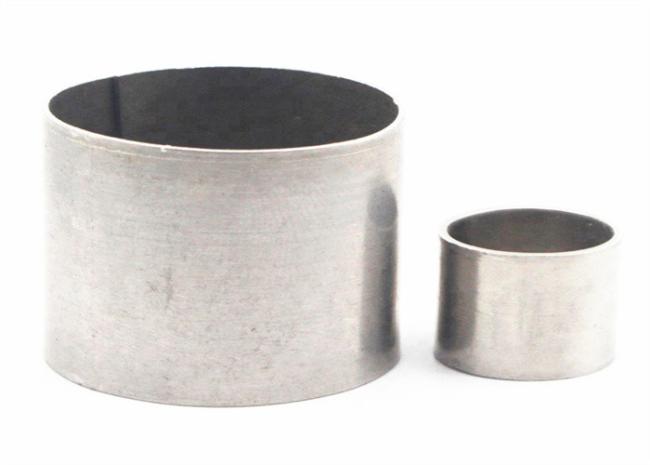

Stainless Steel 304L Cylindrical Raschig Ring Metal Random Packing
Raschig ring is a typical granular filler with the longest industrial application. Its simple structure, convenient manufacturing and low cost are still widely used today. Its shape is simple and its height is equal to its diameter. Large size rascating rings (above 100MM) are generally filled in a regular way, while under 75MM size rascating rings are generally filled in a random way. Metal rascating ring is widely used in many fields, but its main application is as a catalyst support.
Specification
| Table 1: The Technical Parameter of Metal Raschig Ring | ||||||
| Item | Size (mm) |
Bulk Density (kg/m3) |
Number (n/m3) |
Surface Area (m2/m3) |
Voidage | Dry Packing Factor (m-1) |
| MRRT-01 | 6 × 6 × 0.3 | 900 | 4000000 | 904 | 88.6% | 1307.4 |
| MRRT-02 | 10 × 10 × 0.3 | 480 | 768000 | 482 | 93.8% | 583.8 |
| MRRT-03 | 13 × 13 × 0.3 | 420 | 410000 | 415 | 4.8% | 489.2 |
| MRRT-04 | 16 × 16 × 0.3 | 348 | 201000 | 344 | 95.5% | 393.2 |
| MRRT-05 | 25 × 25 × 0.4 | 288 | 53500 | 212 | 96.2% | 229.8 |
| MRRT-06 | 25 × 25 × 0.5 | 367 | 53500 | 216 | 95% | 237.2 |
| MRRT-07 | 25 × 25 × 0.6 | 439 | 53500 | 219 | 94.2% | 244.1 |
| MRRT-08 | 38 × 38 × 0.4 | 193 | 15000 | 143 | 97.2% | 148.4 |
| MRRT-09 | 38 × 38 × 0.5 | 246 | 15180 | 145 | 96.7% | 151.7 |
| MRRT-10 | 38 × 38 × 0.6 | 328 | 15000 | 146 | 95.9% | 154.6 |
| MRRT-11 | 50 × 50 × 0.5 | 191 | 6500 | 106 | 97.5% | 115.2 |
| MRRT-12 | 50 × 50 × 0.8 | 300 | 6500 | 108 | 96.4% | 120.9 |
| MRRT-13 | 50 × 50 × 1.0 | 380 | 6500 | 109 | 95.4% | 125 |
| MRRT-14 | 76 × 76 × 1.0 | 265 | 1920 | 69 | 97.4% | 79.6 |
| MRRT-15 | 89 × 89 × 1.0 | 224 | 1220 | 61 | 97.1% | 66.2 |
Features
Simple structure.
Large flux.
Large void rate.
High crushing strength.
Good acid resistance.
Wide mass transfer applications.
Cost-effective.
Applications
Used in petrochemical engineering for catalyst support.
Used in water treatment for separation and desorption.
Used in petrochemical industry for distillation and extraction.
Applied in refineries, petrochemical industries, combustion plants and chemical industries.
Applied in gas processing and heat transfer applications.
Applied in deethanizer, demethanizers and quench towers.
Package & shipping
| Package type | Cotainer loading volum | ||
| 20GP | 40GP | 40HQ | |
| Jumbo bag | 20-24m3 | 40m3 | 48m3 |
| Plastic bag | 25 | 54 | 65 |
| Carton box | 20 | 40 | 40 |
| Delivery time | within 7 working days | 10working days | 12working days |
Our Company
Boeeger Industech Limied, build in 2004, has 17 years of export experience, is a ONE-STOP SUPPLIER OF PACKING PRODUCTS. We are located in the hometown of China's wire mesh, close to Beijing airport and Tianjin port, so it is convenient and fast transportation. No matter how large or small your company is, you can find products suitable for you here, and you don’t need to worry about payment, quality inspection, packaging and shipment. We have a professional team to provide you with the best solution to solve all your problems.
For over 17 years, Boegger has been providing filtration solutions to a wide range of filtering industries where perfume, essence, oil, etc. Our Major products include grid structured packing, wire gauze structured packing, random packing and wire mesh demister pads, etc.
To meet different filtration requirements, we deal with a variety of raw materials, steel, stainless steel, non-ferrous metals and special materials.
For special using, we also handle custom fabricated needs.Our well-trained staff have an extensive knowledge of the filtering industry and are always willing to assist with our customer’s needs.
When quality at the right price counts, make it Boegger!
FAQ
Q1 : What are the terms of payment?
A1 : T/T , L/C at sight, Paypal , etc.
Q2 : What's the delivery time?
A2 : About 7-10 days .after received the payment.
Q3 : Do you do customized order?
A3 : Yes, of course.
Q4:Can I negotiate the price?
A4: Yes, we may consider the discounts for mixed goods or bulk orders of individual products.
Q5:What information should I offer to you if I want to know the price?
A5: Material, Size,Application/Usage, Quantities, Payment termFOB or CIF, Package term,
