Mini 316 Stainless Steel Packing Flat Ring 5.5mm To 25mm High

                                           Stainless Steel 316 Super Mini Flat Ring Metal Random Packing

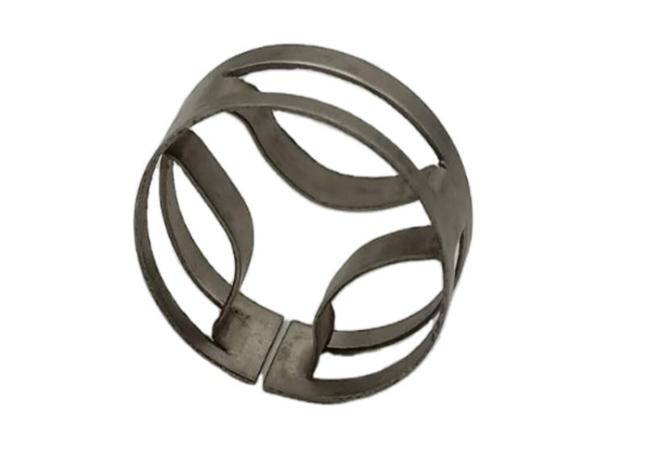

Metal flat ring is a kind of ring filler with short openings. The height to diameter ratio is about 1/3. The structure of the flat ring haniwa is similar to that of the step ring. The flanging of the step ring is eliminated, and the inner curved arc rib is used to improve the strength of the haniwa. It ensures the uniform orientation of packing and increases the density of packing. The inner curved rib makes the gas-liquid distribution in packing layer more uniform. The metal flat ring packing greatly improves the separation effect and has the advantages of high mass transfer rate, low bed resistance, large self-care ability, small backmixing and entraining, and not easy to scale.

Specification


Features


• Traditional internal fingers are changed into continuously bending curved rib.
• The bevel edge are removed for higher strength and increased bulk density.
• Thin wall thickness.
• Large voidage.
• High bulk density.
• High flux.
• Low pressure drop.
• Excellent treating capacity.
• 20% increased mass transfer performance.
• Increased bulk density.
• High filtering and separating performance.
• Large operating elasticity.


Applications


• Liquid-liquid extraction.
• Gas-liquid mass transfer.
• Vacuum distillation.
• Thermo-sensitive material distillation.
• Decomposable plant material distillation.
• Easy polymerization material distillation.
• Easy carbonization material distillation.
