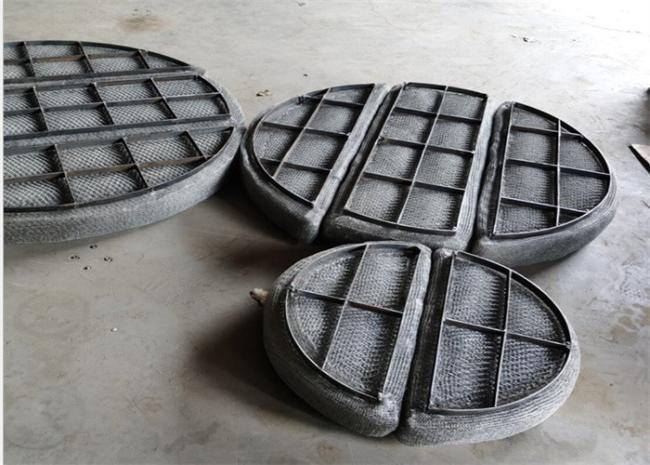

750mm Wire Mesh Demister Pad Cellular Structure Stainless Steel Knitted

 750mm Wire Mesh Demister Pad Cellular Structure Stainless Steel Knitted



The defogger operates safely because it is designed to accommodate changes in gas or fluid flow rates. Typically, 100 mm mesh pads are used, but larger thickness pads are used where flow varies widely, thus increasing production.

Although the defogger is considered standard because it is used in so many fields, this model is robust and efficient. Demiggers are used where accompanying airborne droplets need to be minimized.

Mist eliminator gasket vapor-liquid separator specifications

1. The SS304 material

2. Overall size φ 750mm

3. Mesh thickness 100 mm

4. The height of the defogger is 150 mm

5. Diameter of steel wire 0.28mm

6 mesh density 176 kg/m3

7. Void ratio 0.978

8. Specific area: 315 m2/m3

9. Grid flat steel 25*3mm

Applications of  Wire Mesh Demister Pad

1.SS304 aqueous solution, nitric acid reduced crude oil fraction, etc.

2.SS316L fatty acid reduced crude oil containing naphthenic acid and corrosive chemicals

3. Synthetic fibers used in moderate temperature corrosive environment

4. PP (polypropylene) for corrosive environment with temperature up to 70℃

5. PTFE for corrosive media with temperature of (-190℃, 250℃)

6.Monel caustic soda, dilute acid

7. Nickel caustic soda, food

8.Copper freon, alcohol

9. Aluminum nitrate

How does the Wire Mesh Demister Pad work?

When steam carrying entrainment droplets flows through the EIT grid, but the inertia of the droplets causes them to contact the wire surface and remain there for a short time. As more droplets come together, they grow larger, run off, and fall free. Mist eliminator Mist eliminator is suitable for specific process conditions and can achieve 99.9% entrained liquid separation from any steam flow, ensuring product purity at the top of the tower. Pressure drop usually less than 25.4 mm H2O (1 inch WC)
