Ss316 Metal Structured Packing With Wall Flow Ring Perforated Plate
SS316 With Wall Flow Ring Perforated Plate Metal Structured Packing
Metal structured packing description:
The metal structured packing is made of a perforated plate having a grooved corrugated surface and a packing arranged and stacked in the tower in a uniform geometry. The geometric shape rules of the entire tower segment, symmetrical, uniform, and stipulate that the gas-liquid flow path is reduced, and the channel flow and the wall flow phenomenon are reduced, and the pressure drop can be very small. Under the same energy cost and pressure drop conditions, it has a greater specific surface area than the random packing, and obtains higher mass transfer and heat transfer efficiency at the same volume.
Metal structured packing material:
Metal perforated plate corrugated packing is available in a wide range of materials; including SS304, SS316, SS316L, Carbon steels. copper bronze etc. Further materials are available on request.

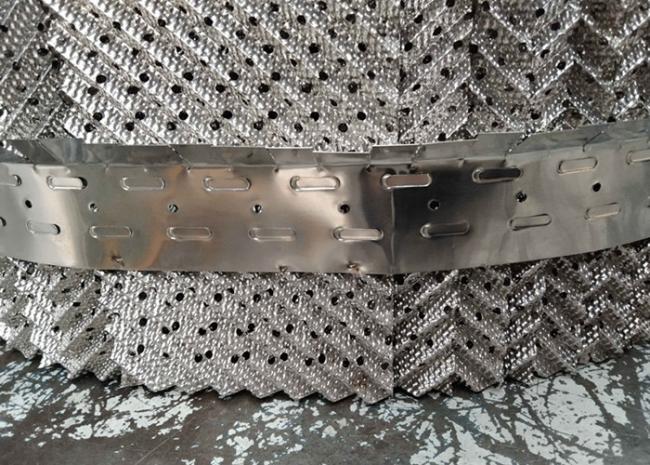

Metal structured packing picture:
Metal structured packing Specification:
| Model |
Surface area (m²/m³) |
Free volume (%) |
Hydraulic Diameter(mm) |
Theoretical Plate(piece/m) |
Pressure drop(Mpa/m) |
| 125Y | 125 | 98.5 | 18 | 1-1.2 | 1.5 |
| 250Y | 250 | 97 | 15.8 | 2-3 | 1.5-2 |
| 350Y | 350 | 95 | 12 | 3.5-4 | 1.5 |
| 450Y | 450 | 93 | 9 | 3-4 | 1.8 |
| 500Y | 500 | 92 | 8 | 3-4 | 1.9 |
Metal structured packing Package:
Our company
Boegger Industech Limited, build in 2004, has 17 years of export experience, is a ONE-STOP SUPPLIER OF PACKING PRODUCTS. We are located in the hometown of China's wire mesh, close to Beijing airport and Tianjin port, so it is convenient and fast transportation. No matter how large or small your company is, you can find products suitable for you here, and you don’t need to worry about payment, quality inspection, packaging and shipment. We have a professional team to provide you with the best solution to solve all your problems.
For over 17 years, Boegger has been providing filtration solutions to a wide range of filtering industries where perfume, essence, oil, etc. Our Major products include grid structured packing, wire gauze structured packing, perforated plate corrugated packing and plate net corrugated packing, etc. To meet different filtration requirements, we deal with a variety of raw materials, steel, stainless steel, non-ferrous metals and special materials.
For special use, we also handle custom fabricated needs. Our well-trained staff have extensive knowledge of the filtering industry and are always willing to assist with our customer’s needs.
When quality at the right price counts, make it Boegger!
FAQ
Q1:What's the MOQ?
A1 : The MOQ is 1 set.
Q2 : What are the terms of payment?
A2 : T/T , L/C at sight, Paypal , etc.
Q3 : What's the delivery time?
A3 : About 7-10 days .after received the payment.
Q4 : Do you do customized order?
A4 : Yes, of course.
Q5:Can I negotiate the price?
A5: Yes, we may consider the discounts for mixed goods or bulk orders of individual products.
Q6:What information should I offer to you if I want to know the price?
A6: Material, Size, Application/Usage, Quantities, Payment termFOB or CIF, Package term,
Destination.
