11S - 15S 36V - 60V Smart BMS 20A - 60A Constant Current With Bluetooth UART Communication
11S 12S 13S 14S 15S 36V 48V 58.8V 60V smart BMS with Bluetooth function UART communication 20A to 60A constant current
1) Application:this smart BMS can work for 12S 13S 14S 15S Lithium ion or Lifepo4 Battery ,client can choose based on your battery chemistry features
2) Current : constant current of this version BMS can be made with 20A to 60A in accoridng to the different demand
3) Dimension: :Max 108*65*10mm (for less than 30A current ,and Max108*65*15mm for more than 30A Current
4) Functions : except basic protection function , this BMS has ON/OFF switch ,PC and APP communication function.
5) Communication type :UART
1) Introduction and Features:

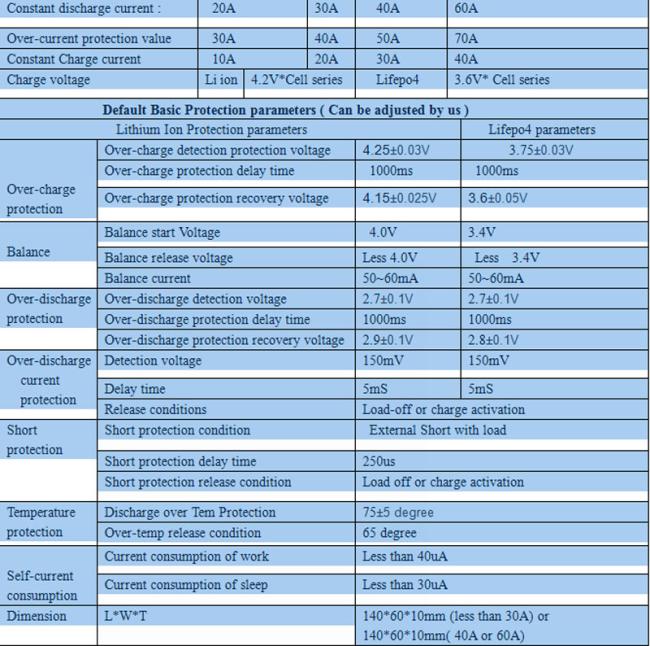

5) With full set protection functions :
This BMS has applied with high quality IC chip specially for lithium battery protection purpose .highly detection
precision degree on over-charge,over-discharge,voltage balancing ,and with detection on wires disconnection functions,with three layers of over-discharge and over-current detections and delay times in detecting process.( Over-current 1,over current 2,short cicircuit protection ) . short-circuit of charging port ,with two layers protection against over-voltage when charging :
6) with Three temperature detection channel ( one internal and two external )

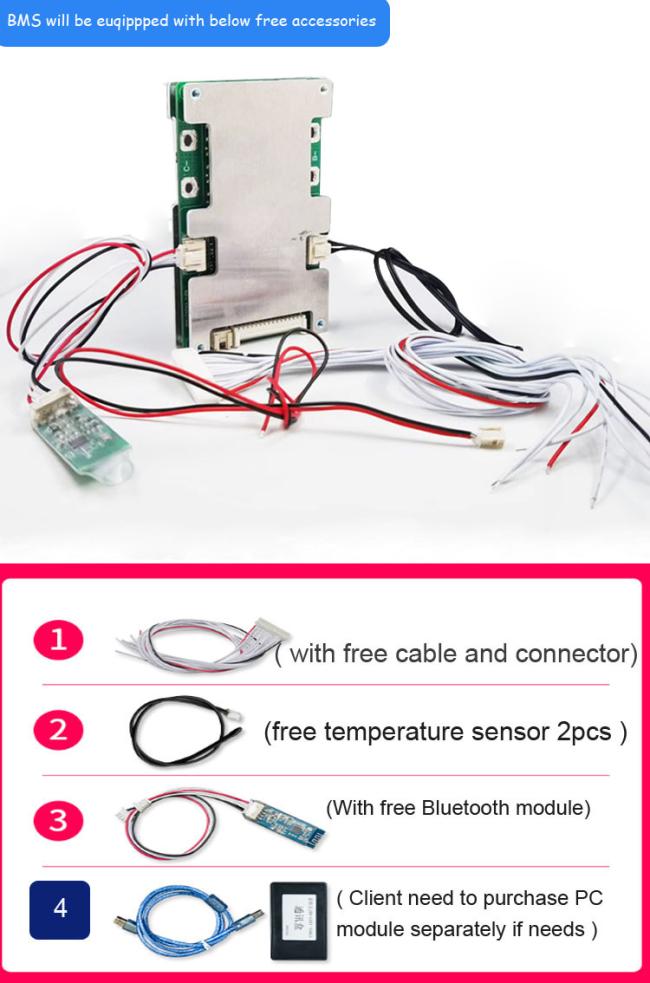

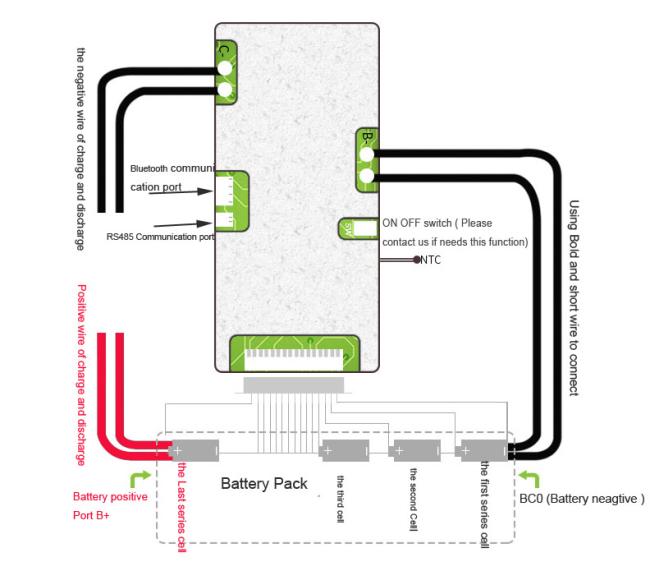

7) This BMS has installed a switch connector for ON/OFF button connection .
And we can design and produce Battery protection circuit board in according to client’s demand with certain
reasonable order quantity .

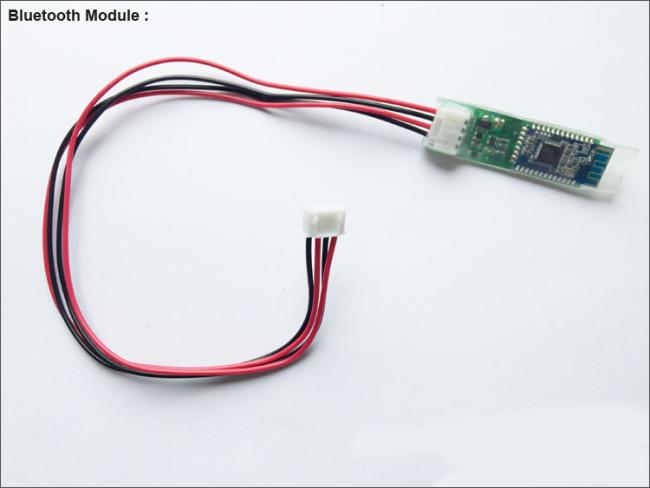

A.Mobile Phone APP Display and how to set parameters via APP software with the Bluetooth Communication module as below.

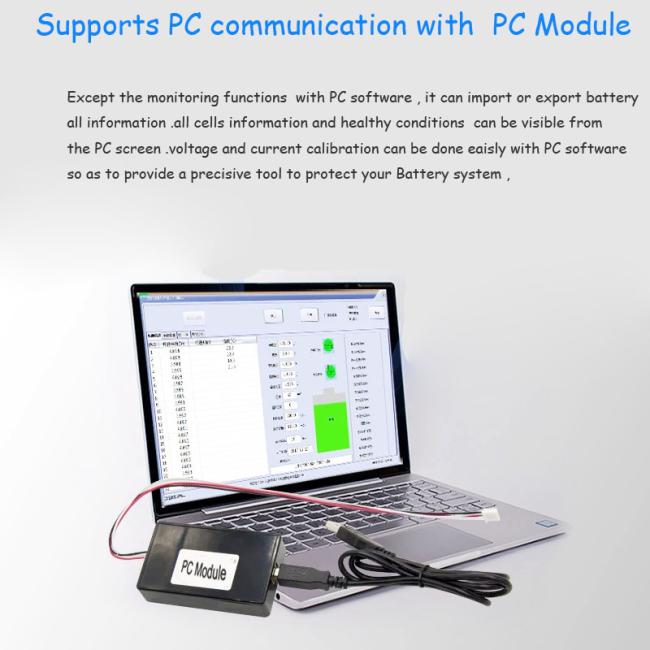

With the PC communication Module as Below ,we can set parameter on PC software like this :
