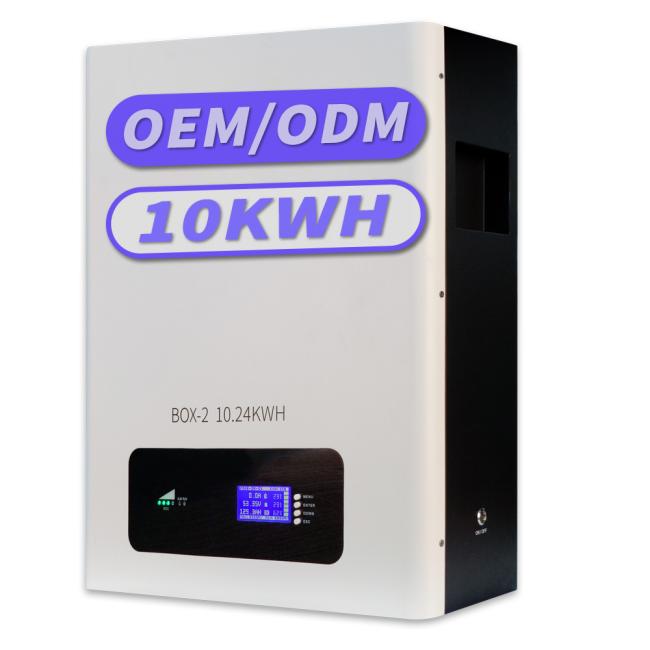

48V 200ah Home Battery Wall 5kwh 10kwh LiFePO4 Lithium Ion Phosphate Battery
Price:
To be negotiated
MOQ:
1pc
Delivery Time:
To be negotiated
Product Description
48V 200ah House (villa) Wall Battery System 5kwh 10kwh Lithium Ion Phosphate Storage LiFePO4 Battery Packs
|
Battery Input Data
|
||||
|
Battery Type
|
Lead-acid or Li-lon
|
|||
|
Battery Voltage Range (V)
|
40~60V
|
|||
|
Max. Charging Current (A)
|
190A
|
210A
|
240A
|
|
|
Max. Discharging Current (A)
|
190A
|
210A
|
240A
|
|
|
Charging Curve
|
3 Stages / Equalization
|
|||
|
External Temperature Sensor
|
Optional
|
|||
|
Charging Strategy for Li-Ion Battery
|
Self-adaption to BMS
|
|||
|
PV String Input Data
|
||||
|
Max. DC Input Power (W)
|
10400W
|
13000W
|
15600W
|
|
|
PV Input Voltage (V)
|
550V (150V~800V)
|
|||
|
MPPT Range (V)
|
200V-650V
|
|||
|
Start-up Voltage (V)
|
160V
|
|||
|
PV Input Current (A)
|
13A+13A
|
26A+13A
|
26A+13A
|
|
|
No.of MPPT Trackers
|
2
|
|||
|
No.of MPPT Trackers
|
1+1
|
2+1
|
2+1
|
|
|
AC Output Data
|
||||
|
Rated AC Output and UPS Power (W)
|
8000W
|
10000W
|
12000W
|
|
|
Max. AC Output Power (W)
|
8800W
|
11000W
|
12000W
|
|
|
Peak Power (off grid)
|
2 times of rated power, 10 S
|
|||
|
AC Output Rated Current (A)
|
12A
|
15A
|
18A
|
|
|
Max. AC Current (A)
|
18A
|
23A
|
27A
|
|
|
Max. Continuous AC Passthrough (A)
|
50A
|
|||
|
Output Frequency and Voltage
|
50/60Hz; 230/400Vac (Three phase)
|
|||
|
Grid Type
|
Current Harmonic Distortion
|
|||
|
Current Harmonic Distortion
|
THD<3% (Linear load<1.5%)
|
|||
|
Efficiency
|
||||
|
Max. Efficiency
|
97.60%
|
|||
|
Euro Efficiency
|
97.00%
|
|||
|
MPPT Efficiency
|
99.90%
|
|||
|
Protection
|
||||
|
PV Input Lightning Protection
|
Integrated
|
|||
|
Anti-islanding Protection
|
Integrated
|
|||
|
PV String Input Reverse Polarity Protection
|
Integrated
|
|||
|
Insulation Resistor Detection
|
Integrated
|
|||
|
Residual Current Monitoring Unit
|
Integrated
|
|||
|
Output Over Current Protection
|
Integrated
|
|||
|
Output Shorted Protection
|
Integrated
|
|||
|
Output Over Voltage Protection
|
Integrated
|
|||
|
Surge protection
|
DC Type II / AC Type II
|
|||
|
Certififications and Standards
|
||||
|
Grid Regulation
|
IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1
|
|||
|
Safety EMC / Standard
|
IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12
|
|||
|
General Data
|
||||
|
Operating Temperature Range (ºC )
|
-25~60ºC , >45ºC Derating
|
|||
|
Cooling
|
Smart cooling
|
|||
|
Noise (dB)
|
<30 dB
|
|||
|
Communication with BMS
|
Communication with BMS
|
|||
|
Weight (kg)
|
36.8
|
|||
|
Size (mm)
|
422W×658H×281D
|
|||
|
Protection Degree
|
IP65
|
|||
|
Installation Style
|
Wall-mounted
|
|||
|
Warranty
|
5 years
|
|||
*48V low voltage battery, transformer isolation design*6 time periods for battery charging/discharging
*Max. charging/discharging current of 240A

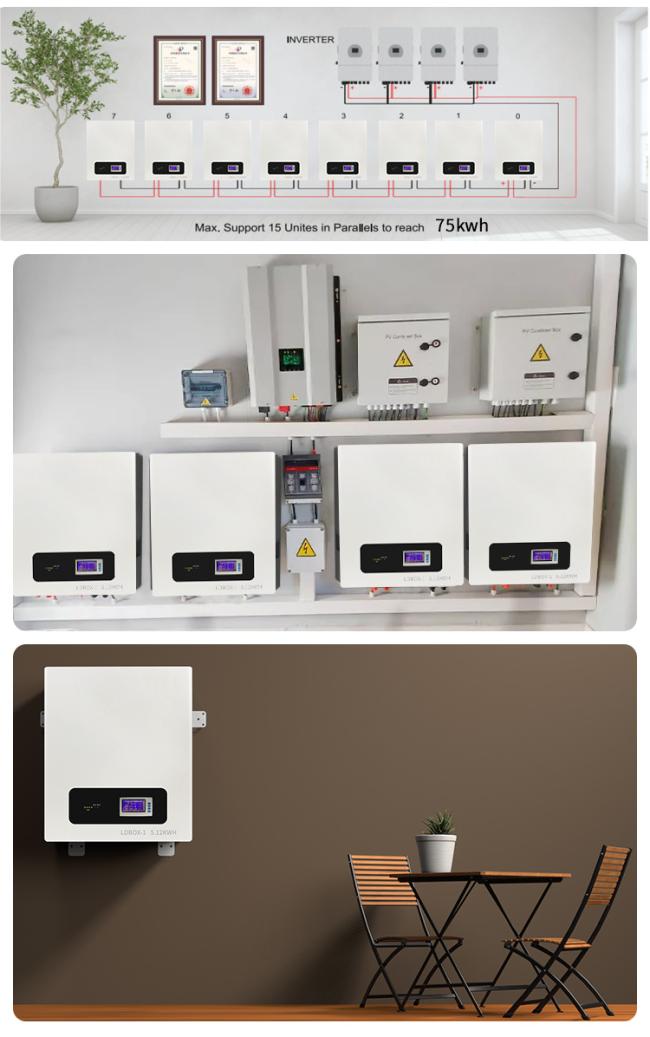

*Frequency droop control, Max.16pcs parallel

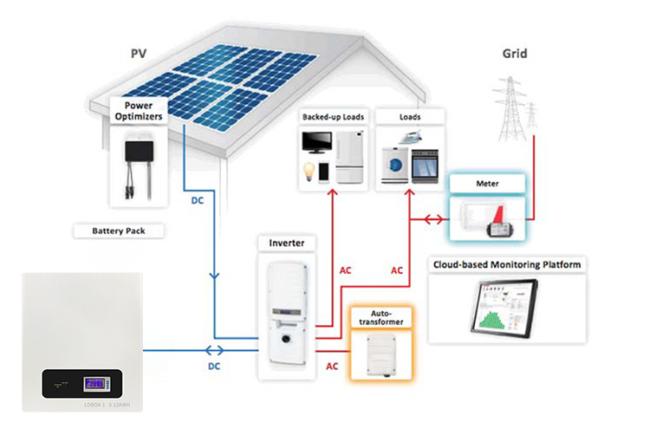

*DC couple and AC couple to retrofit existing solar system*Support storing energy from diesel generator
*Supports three phase unbalanced output
*Unique Smart Load application and Grid peak shaving function
*Max. charging/discharging current of 240A
*Frequency droop control, Max.16pcs parallel
*DC couple and AC couple to retrofit existing solar system*Support storing energy from diesel generator
*Supports three phase unbalanced output
*Unique Smart Load application and Grid peak shaving function
