500 Kg/H Fish Processing Machines Picking Extracting Bone Separator Machine
Product Description
Introduction for fish meat separator:

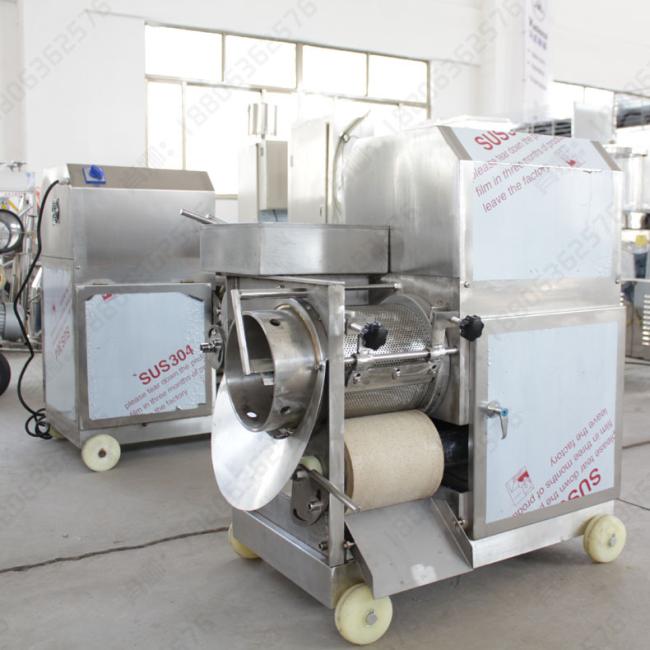

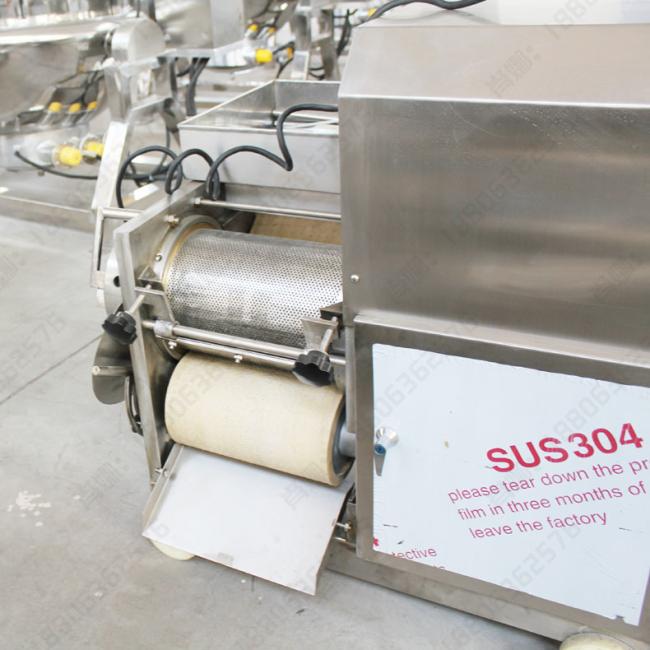

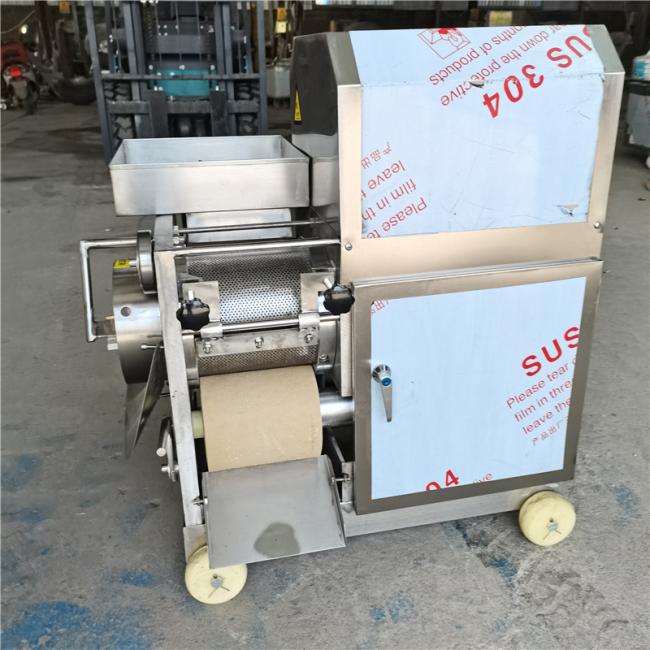

The fish meat separator machine can separate fish meat from fish bone, fish skin, fish tendon with high rate, in order to raise the fish use rate and save manpower.This fish deboner is mainly made by stainless steel.It can debone small whole fish and half bigger fish and fish leftover.It is also used for getting shrimp meat from shells, both big and small shrimp can be processed by the fish deboning machine.It is equipped with rubber bands for meat barrel and meat squeeze. By the mutual squeezing motion of scrolling meat barrel and rotary rubber bands,squeeze the fish into fish drums, and then leave the skins and bones outside the drum, and at last wiped out of the machine by the scraper.
Features of fish meat separator:
1. The fish skin and fish bone are scraped off the take-up of the barrel by the scraper attached to the machine. Clean and convenient
2. The entire meat separation process does not require manual operation and is convenient for hygiene.
3. The amount of adjustment can be flexibly adjusted according to the size of the fish.
| Model | AYR-150 | AYR-200 | AYR-300 | AYR-350 |
| Power | 2.2kw | 2.2kw | 3kw | 4kw |
| Capacity | 180kg/h | 280kg/h | 500kg/h | 1000kg/h |
| Belt length | 1195mm | 1450 mm | 1450 mm | 1450 mm |
| Belt thickness | 20mm | 20mm | 20mm | 20mm |
| Belt width | 155mm | 205mm | 305mm | 355mm |
| Drum diameter | 159mm | 219mm | 219mm | 219mm |
| Roller thickness | 6mm | 8mm | 8mm | 8mm |
| Mesh diameter | 2.7mm(Can be customized) | 2.7mm(Can be customized) | 2.7mm(Can be customized) | 2.7mm(Can be customized) |
| Weight | 180kg | 210kg | 360kg | 450kg |
| Size | 900*680*850mm | 950*720*950mm | 1050*750*970mm | 1200*900*1100mm |

The Fish debarking machine is suitable for all kinds of marine fish and freshwater fish. The big fish is divided into sections, and the small fish directly collects the meat. The fish flesh and the fish bones, the fish skin, and the fish tendons in the fish body can be separated, so as to achieve the purpose of improving the utilization rate of raw materials, saving labor costs, and improving the economic value of low-value fish.
2. The whole machine is made of high quality stainless steel, it is anti- corrosive, which meets the national food hygiene standards.
3. The machine is used for the collection and extraction of the fish flesh.
4. Fast removing and separating speed, high capacity, proper for fish meat ball making, fish
meat collecting, fish meat patty making, fish meat food processing,The extracted fish flesh
can be directly used to make minced fillet products such as fish ball, fish noodle.



FAQ:
Q: I am new to buy a machine, how should i do?
A: Don't worry, we have professional sales man for u. And they will tell u how to do until u use the
machine well.
Q: How many days we can get the machine?
A: If your machine is sent by express or by air, after we send the machine, u can get the machine in
7-10 days.
If your machine is sent by sea, we need to know your nearest seaport, and then can make sure the
detailed shipping time.
Q: Can i customize the machine or voltage?
A: Sure, we are glad to accept the customized machines. Just tell me the detailed request, and then
we will offer U high quality and best price machines.
Q: Customer Service:
A: qualty is first, every machine before leave the factory we test it ensure the quality is good.24 hours
online to solve any questions. supply manual book and technical support,maintain video to help you.
