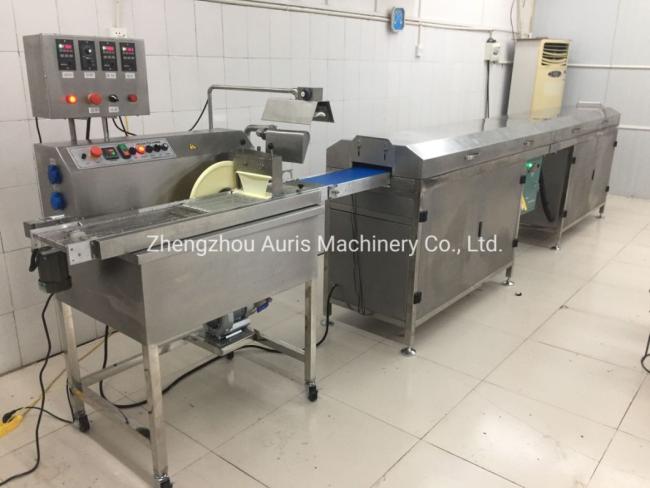

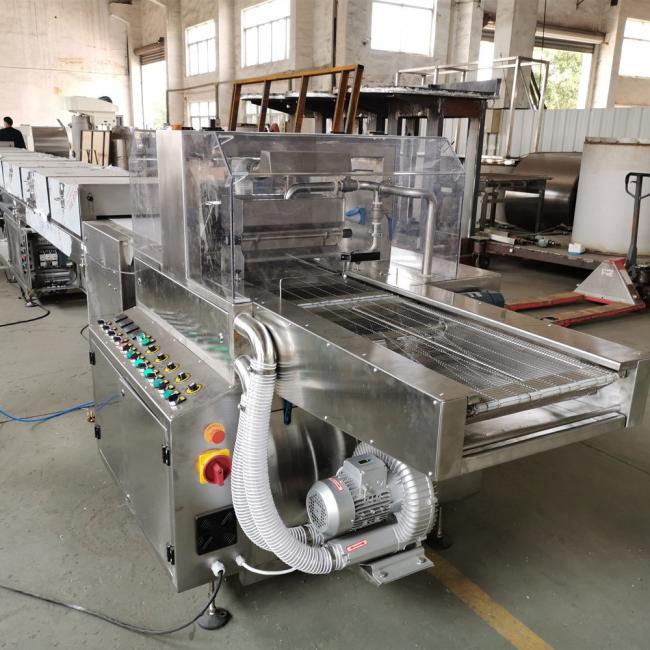

Sss304 Automatic Chocolate Coating Machine Cooling Tunnel Candy Enrober

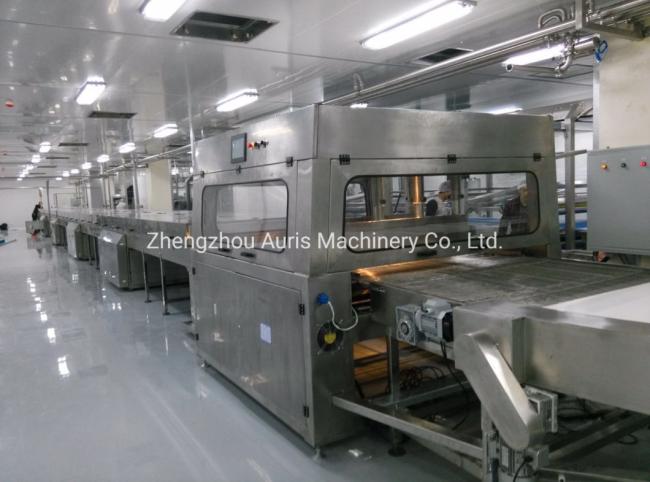

Full Automatic Chocolate Coating Machine Chocolate Candy Enrober Line With Cooling Tunnel
Description:

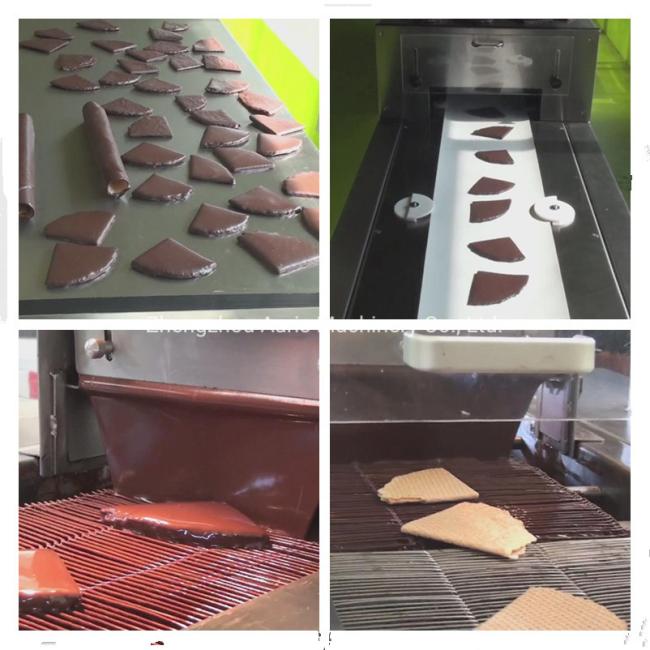

This chocolate enrobing machine is a special equipment which enrobe the chocolate paste on the surface of various kind food, such as puffed food, nuts,Spherical.abnormal candies,cakes and biscuits,etc.It can do the enrobe in the bottom or just enrobe half side of the products.
1.Variable speed 0-8m/min

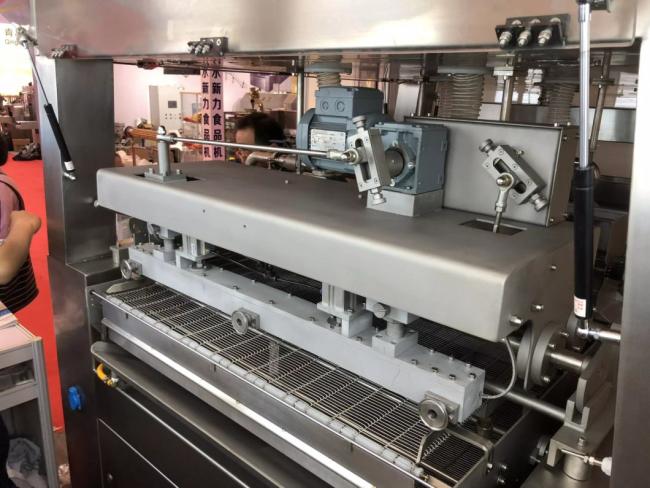

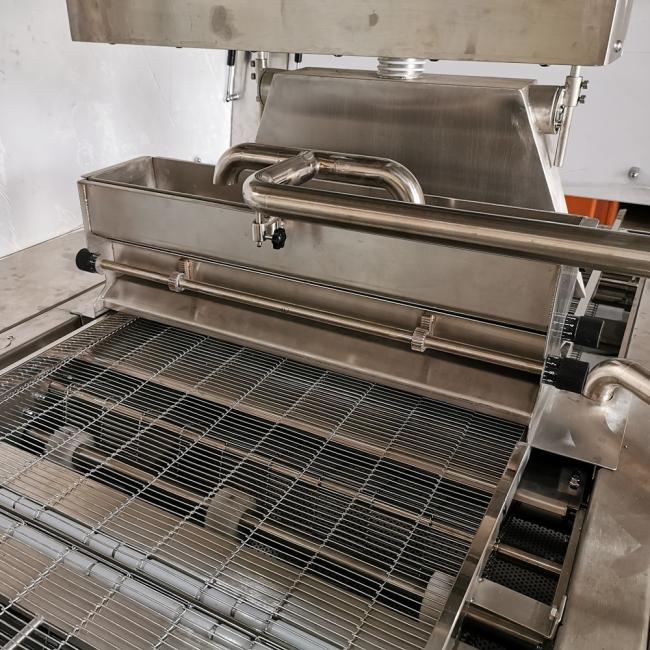

2.Two adjustable chocolate curtains
3.Lobe pump for chocolate transfer

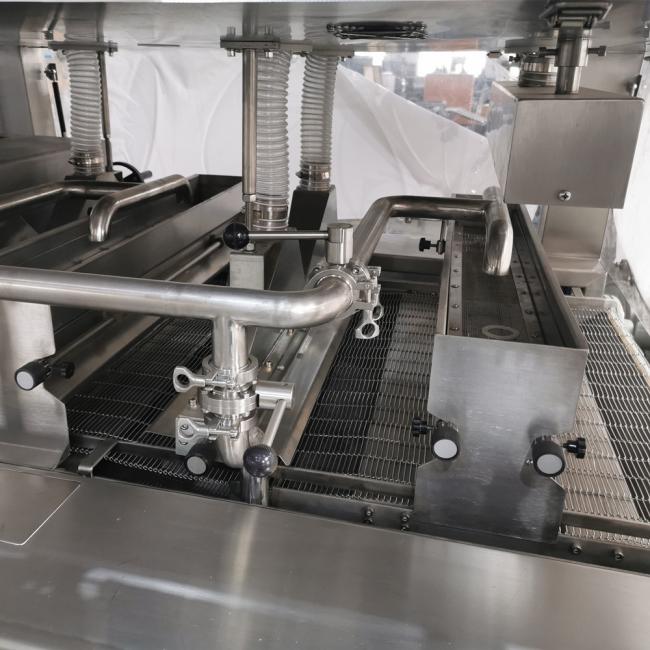

4.Sanitary connection piping system for easy cleaning
5.Chocolate connected parts of 304 Stainless Steel
6.PLC Control

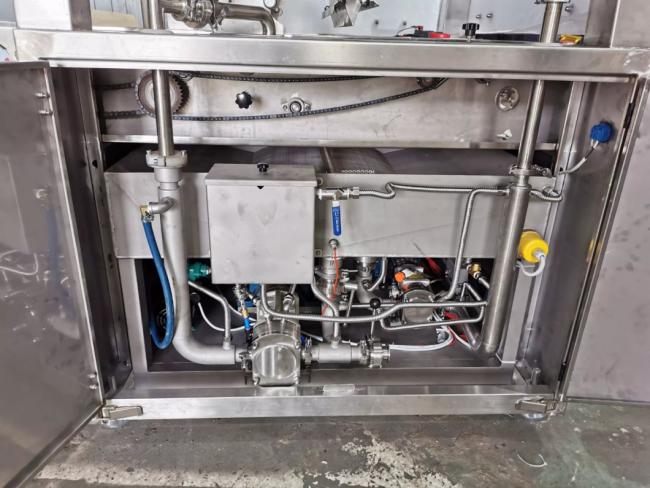

7.Removable pull-out reserve tank
8.Build in heating system
9.Selective build in decorating system

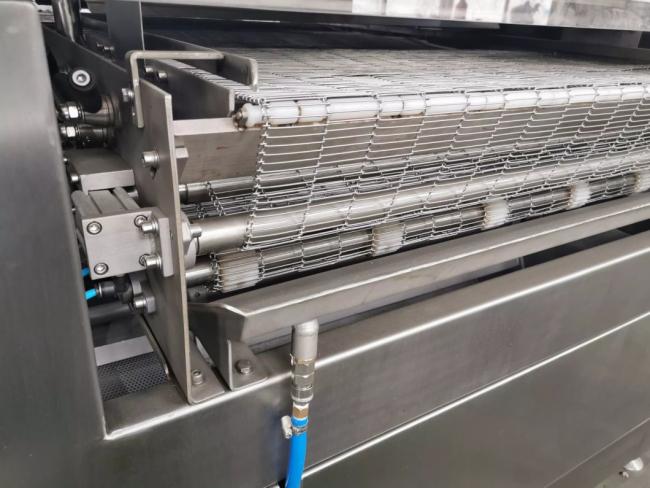

Chocolate curtain: can customize double curtain Electrical appliances adopt famous brand Mesh belt: 200-2400mm can available



Optional Build-In Decorator Reserve Tank Under Mesh Belt Tail Breaking Rod+Jacketed Collection with build-in heater, chocolate pump hopper to avoid tail

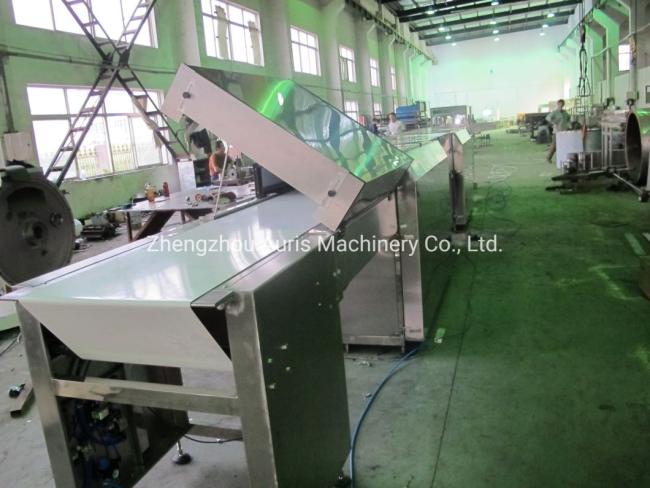

The length and width of the cooling tunel can customize we also have the small capacity chocolate enrobing line if u need
| model item |
ACT-200 | ACT-300 | ACT-400 | ACT-600 | ACT-900 |
| Belt width | 200MM | 300MM | 400MM | 550MM | 900MM |
| Belt speed | 0-8m/min | 0-8m/min | 0-8m/min | 0-8m/min | 0-8m/min |
| Cooling NO. | 3P*1set | 5P*1set | 5P*1set | 5P*2sets | 5P*4sets |
| Cooling belt length | 10M | 10M | 12M | 14M | 20M |
| power | 8.5KW | 13.5KW | 13.5KW | 17.5KW | 28KW |
| size | 11 *0.8*1m | 11*0.8*1.6m | 14*0.9*1.7m | 16*1*1.7m | 22*1.5*1.8m |
