25 M3/Day 50 M3/Day Domestic Mbbr Sewage Treatment Plant For Building Temporary Facilities
Price:
$21,804-$223,587
MOQ:
1 unit
Delivery Time:
45-60 days (to be negotiated)
Brand:
Biocell
Product Description
Hot Sale MBBR Package Domestic Sewage Treatment Plant
PRODUCT INTRODUCTION
MODEL A
CAPACITY:
25 m3/day
50 m3/day
100 m3/day
EXTEND:
200~1000 m3/day
| NO. | Equipment | Specifications | Unit | BC-MP-1 | BC-MP-2 | BC-MP-4 |
| 1 | Flow | m3/d | 25 | 50 | 100 | |
| 2 | Tank Size | Length | m | 6 | 12 | 12 |
| Width | m m | 2.4 | 2.4 | 3 | ||
| Height | 2.4 | 2.4 | 3 | |||
| 3 | Bio media | Proprietary | m3 | 3.3 | 6.6 | 13.2 |
| 4 | Settling media | Tube-dek | m2 | 0.64 | 1 | 1.44 |
| 5 | Rotary Blower | Capacity | m3/h m | 66 | 114 | 200 |
| Pressure | KW | 3 | 3 | 3.5 | ||
| Motor HP | 1.5 | 2.2 | 5.5 | |||
| 6 | Transfer Pump | Submersible | m3/h m | 1 | 2 | 4 |
| Head | KW | 6 | 6 | 6 | ||
| Motor HP | 0.37 | 0.37 | 0.55 | |||
| 7 | Tertiary Disk Filters | Drive Motor | KW | 0.37 | 0.37 | 0.37 |
| Pump Moter | KW | 0.37 | 0.37 | 0.37 | ||
| 8 | PAC | Drive Motor | KW | 0.37 | 0.37 | 0.37 |
| Pump Moter | KW | 0.25 | 0.25 | 0.25 | ||
| 9 | PAM | Drive Motor | KW | 0.37 | 0.37 | 0.37 |
| Pump Motor | KW | 0.25 | 0.25 | 0.25 | ||
| 10 | Shipping WT. | kg | 5500 | 10500 | 12500 | |
| 11 | Operating WT. | kg | 8500 | 17200 | 21000 | |
| 12 | Installed Power | 3.85 | 4.55 | 8.03 |
MODEL B
CAPACITY:
500~5000 m3/day
Non-standard custom

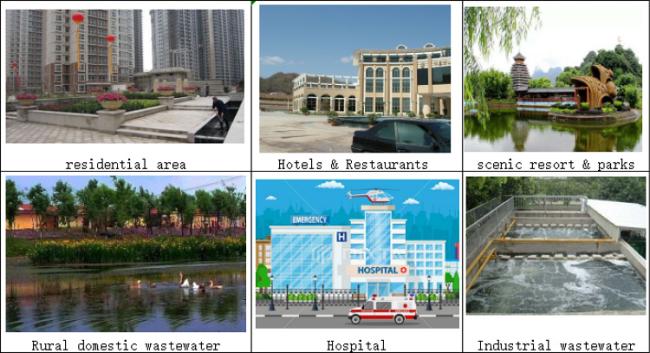

APPLICATION
• Domestic wastewater in general
• Condominiums & housing projects.
• Hospitals
• Building temporary facilities
