24m3/H Automatic Sludge Thickener Wastewater Treatment Volute Type Screw Press Filter
Unattended Operation Volute Type Screw Filter Press Machine For Sewage Sludge Treatment
Product Introduction
Submerged Petrochemical Waste Water And Sludge Dewatering Equipment
The spiral type sludge dewatering machine is a kind of water treatment system, which is widely used in municipal wastewater treatment engineering, petrochemical, light industry, chemical fiber, paper making, pharmaceutical, leather and other industries. The actual operation shows that the sludge dewatering can create considerable economic benefits and social benefits for the customers.
Parameters
| Model | DS Standard Capacity(kg/h) | Sludge Treatment Capacity(m³/h) | ||||||
| Low Concentration | High Concentration | 2000mg/L | 4000mg/L | 10000mg/L | 20000mg/L | 25000mg/L | 50000mg/L | |
| MDS101 | 3 | 6 | 1.5 | 0.75 | 0.6 | 0.3 | 0.24 | 0.12 |
| MDS131 | 6 | 12 | 3 | 1.5 | 1.2 | 0.6 | 0.48 | 0.24 |
| MDS132 | 12 | 24 | 6 | 3 | 2.4 | 1.2 | 0.96 | 0.48 |
| MDS201 | 12 | 20 | 6 | 3 | 2 | 1 | 0.8 | 0.4 |
| MDS202 | 24 | 40 | 12 | 6 | 4 | 2 | 1.6 | 0.8 |
| MDS301 | 30 | 60 | 15 | 7.5 | 6 | 3 | 2.4 | 1.2 |
| MDS302 | 60 | 120 | 30 | 15 | 12 | 6 | 4.8 | 2.4 |
| MDS303 | 90 | 180 | 45 | 22.5 | 18 | 9 | 7.2 | 3.6 |
| MDS351 | 60 | 120 | 30 | 15 | 12 | 6 | 4.8 | 2.4 |
| MDS352 | 120 | 240 | 60 | 30 | 24 | 12 | 9.6 | 4.8 |
| MDS353 | 180 | 360 | 90 | 45 | 36 | 18 | 14.4 | 7.2 |
| MDS354 | 240 | 480 | 120 | 60 | 48 | 24 | 19.2 | 9.6 |
| MDS401 | 100 | 170 | 50 | 25 | 17 | 8.5 | 6.8 | 3.4 |
| MDS402 | 200 | 340 | 100 | 50 | 34 | 17 | 13.6 | 6.8 |
| MDS403 | 300 | 510 | 150 | 75 | 51 | 25.5 | 20.4 | 10.2 |
| MDS404 | 400 | 680 | 200 | 100 | 68 | 34 | 27.2 | 13.6 |

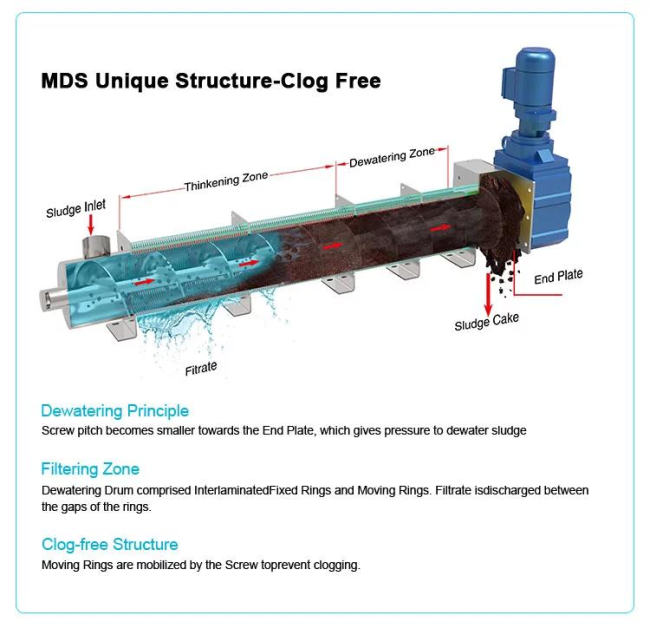

Structure And Working Principle
The core part of the screw sludge dewatering machine is one or several groups of filter units composed of a screw drive shaft, multiple fixed laminations and multiple floating laminations. Each filter unit is divided into two parts: concentration section and dehydration section. From the sewage inlet of the concentration section to the mud cake outlet of the dewatering section, the pitch of the screw shaft gradually decreases, and the gap between the fixed ring and the moving ring gradually changes. small. There is a back pressure plate at the sludge outlet to adjust the pressure in the spiral cavity. The spiral sludge dewatering machine completes the thickening and squeezing and dewatering of the sludge in one cylinder, replacing the traditional filter cloth and centrifugal filtration method with a unique and subtle filter body mode.
