CXTD Model 10 Ton To 35 Ton Double Girder Overhead Crane FEM Standard
Steel Coil Lifting Bridge CXTD Model 10 Ton 20 Ton 30 Ton 35 Ton Double Girder Overhead Crane
Description:

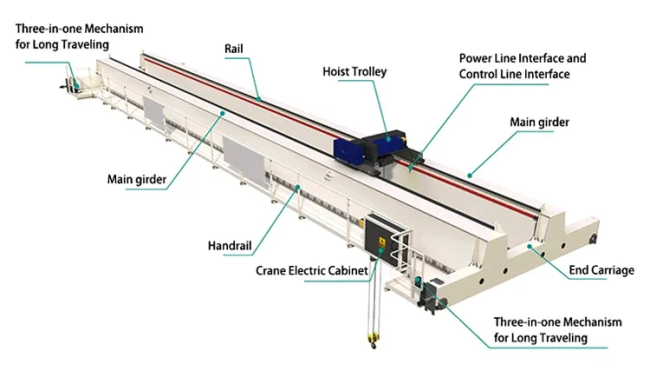

Double Girder Overhead Crane are designed with high configuration, which isdeveloped with advanced design technology referring to European FEM standard. Cranes are mainly made up by main beams, end beams, trolleys, electrical parts and control rooms and other components.
This newly developed overhead crane are with compact layout and modularized structural design allows effective use of the available lifting height and reduce the investment on the steel structure of workshop.
| Model No | CXTD |
| Type | European Double girder overhead crane |
| Load Capacity(t) | 1-500t |
| Lifting Height(m) | 3-35m, or customized |
| Span(m) | 7.5-31.5m,or customized |
| Travel Rail | P43,QU70-QU100 |
| Long Traveling speed | 3-30M/Min |
| Cross Traveling speed | 2--20M/Min |
| Working Class | A4-A8 |
| Origin | Henan,China |
| Power Supply | Three-phase A.C. 380V, 50Hz or customized |
| Way to control | Ground control,remote control and the combination control of two |
| Safety device | Buffer,current overload protection,overload device,power failure protection |
Features:
1. Excellent design, compact structure, light weight, low headroom
2. Flexible driving with hardened gear box
3. Stepless control smooth running
4. Real-time safety monitoring
5. Standardized features makes performance extremely stable

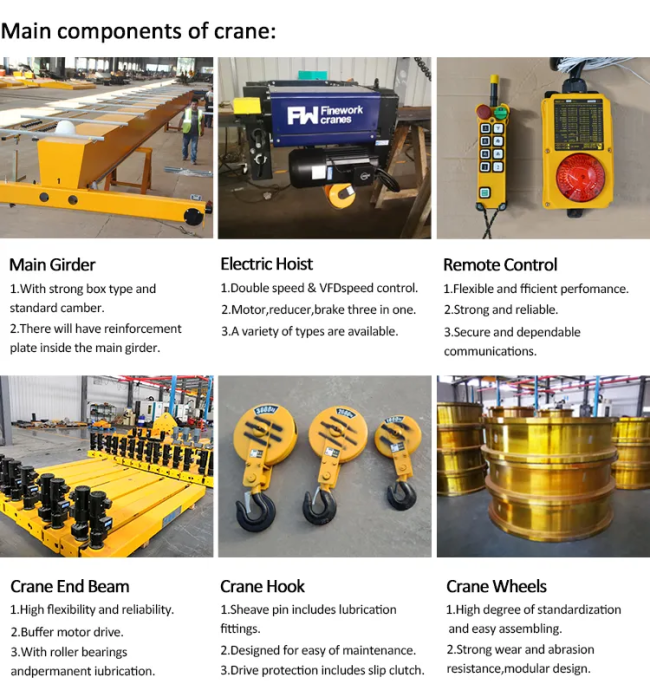

Crane Kits:
| 1. | Lifting motor |
Heavy duty motor 60%ED rating |
| 2. | Lifting gear box |
CrNiMo alloy harden gear(HRC60) Side hanging design |
| 3. | Lifting brake |
Double brake type available Electric magnetic brake inside Electric hydraulic thruster type with ZPMC brand |
| 4. | Wire Rope |
Reliable rope guider & anti-deflection High strength galvanized steel wire rope 2160N/mm2 Heavy blocks densely covered to avoid wire rope loosing |
| 5. | Hook Assembly |
34CrMo4QT/34CrMo6QT, Optimized size Forging hook |
| 6. | Electrical Parts |
IEC standard testing Schneider brand or as required Aviation plug no wiring connection at user’s site |
| 7. | Smart function |
2-step adjustable rotation limit switch Hook approached limit switch Grease nipples in one group Dropless latch Over speeding protection Inching / Micro-speed / Anti-sway / brake-open holding function HMI and safety monitoring system |
