China 5 Tons 16m Spider Lift Crane For Narrow Space for sale

5 Tons 16m Spider Lift Crane For Narrow Space

Name: 5 Tons 16m Spider Lift Crane For Narrow Space
Brand: HENAN SANTO CRANE CO.,LTD

Price Negotiable

Price: USD14999-49999/set

MOQ: 1set

Delivery Time: 30 working days

Brand: SANTO

Product Description

5Tons 16m Wireless Remote Control Spider Crane For Narrow Space

Description:

With the characteristics of small size, light weight, low pressure on the ground, and the ability to work flexibly in a limited space, the spider crane can also be used for the maintenance of some aircraft and helicopters.

The crawler design of the spider crane allows it to enter uneven ground for work and movement. The four outriggers on the equipment can fix the balance of the machine and even work on stairs. The compact body of the small spider crane can be transported to various places. It can save a lot of time and problems for customers, and can quickly help users solve work construction.

Specification		2.95t
Maximum working radius		7.8m × 0.2t
Maximum ground lift		9.2mX0.8t
Winch	Hook up speed	0-8m/min
Winch	Wire Rope Specifications	Φ8mm×45m
Telescopic device	Boom form	5 -section boom , U-shaped high-strength manganese
Telescopic device	Boom length/time	2.8 m- 8.2 m/2 2 sec
Undulating Device	Boom angle/time	0-7 5 °/13sec
Gyratory Device	Rotation angle/speed	0-360° (continuous)/60sec
Outrigger	Outrigger Action Form	Manual unscrewing + hydraulic automatic support (two legs)
Outrigger	Maximum extension (mm)	4010 (long) X 3260 (rear) , (front)
Walking device	way of walking	Hydraulic motor drive, two-speed
	Walking speed	0-2.5km/h
	Gradeability	20° (36%)
Motor	Voltage	AC380V
Engine	Producer	Chang Chai
	Type/displacement	EV80/F195
	Start method	Electric start
	Startup performance	-5°C~40°C
	fuel/volume	Diesel / 8 L
	battery capacity	12v 45AH
	Fuel consumption	274g/kW-h
	noise level	Rated speed≤81.5dBA (1m)
	Emission Standards	Country II
Operating system	Type of operation (jib/outrigger), manual travel	Manual operation, manual walking + remote control (optional)
Operating system	Operating characteristics	Comai hydraulic system (optional)
The standard configuration	Diesel engine and electric motor (dual power)
Vehicle size	Length 2830width 800height 1650
Craftsmanship	Paint assembly process

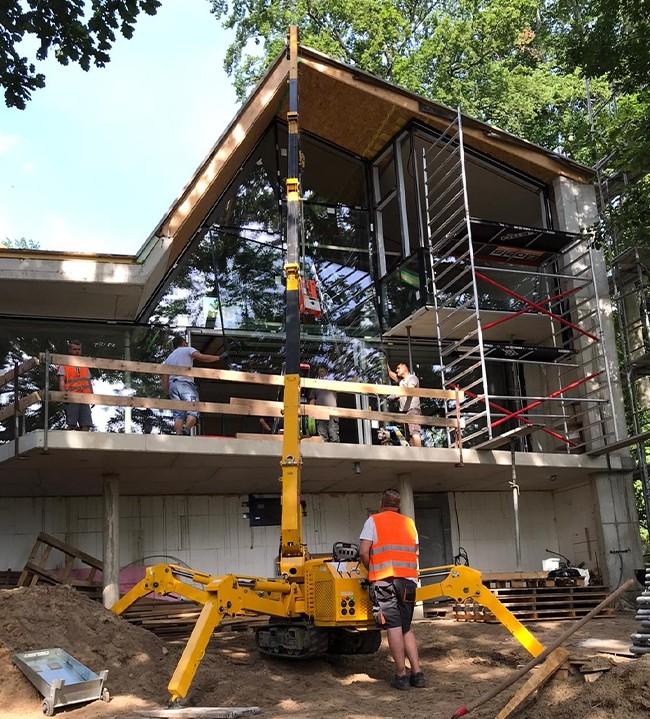

Photos:
