200T Overhead Crane Wheel Assembly ODM OEM Transfer Cart Wheels
China Crane Wheel, Wheel Block, Wheel Sets, Wheel Assembly For Overhead Crane Gantry Crane Jib Crane Transfer Trolley Cart
Introduction of Crane Wheel:
Crane wheels are the most important parts in crane traveling system which are also the most vulnerable crane parts due to the friction between crane wheels and rail. Therefore, the crane wheels shall be replaced because of flange wear, flange breakage, and mechanical overloads characterized by pitting and spalling.
Each of these in-service factors must be carefully considered before the combination of wheel design, material selection, hardness pattern and heat treating technology is selected.
That’s why every SANTO hardened steel crane wheel is specially designed and heat treated to maximize its resistance to the damaging forces at work in heavy industrial applications.
Application of Crane Wheel:
- Overhead cranes
- Gantry and portal cranes
- Jib cranes
- Transfer carts
SANTO Crane Wheel Service:
- Crane wheels with advanced design and supervised quality are at your choices.
- Wide range of crane wheels with the diameters of 150mm to 900mm (6” to 36”) are at your services.
- Various kinds of crane wheels are provided, such as, single and double flange wheels, forging and casting wheels, etc.
- Customized crane wheels are available at SANTO.
Advantages & Features:
- Manufactured from high quality materials, which can be customized as standard.
- Heat treated using our in house processes to provide a uniform contour hardness in the tread and inner flange wear surfaces, while maintaining a ductile core to resist shock loads.
- High resistance to wear or flange fracture, pitting and spalling, with a long working life.
- Reduce maintenance cost of your wheels and wheel assemblies.
- Improve the life of your rail.
- Provide an additional 40% load carrying capability over rim toughened wheels.
- Delivery in 2-5 weeks, less when required
Technical Specification:
| Type: | Forging Wheel/Casting Wheel |
| Application: | Crane,trolley,transfer car,heavy duty industry,Port crane,Steel factory etc |
| Material: | 42CrMo4, AISI4140, 41Cr4, A504, SSW-Q1R, 65Mn, 1045, 1055, 1060, 1070, and ductile iron 400, 500,600,700 etc |
| Dimension: | Φ250, Φ350, Φ400, Φ500, Φ600, Φ700, Φ800, Φ 1000, Φ1200 or as your require |

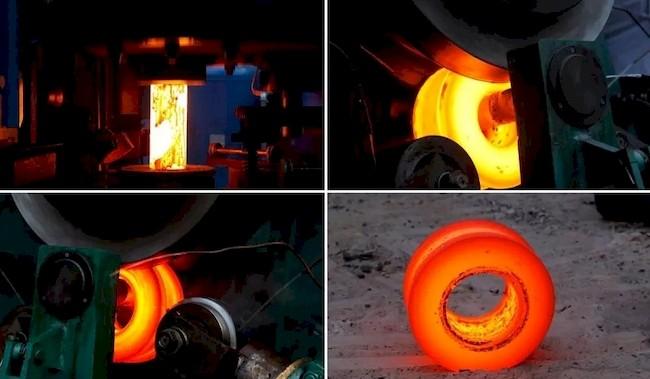

| Process: | Forging/Casting |
| Quality Control: | UT,MT,RT,PT,chemical composition test,mechanical property test,etc. |
| Heat Treatment: | Quenching and Tempering |
| Quenching Depth: | no less than 20mm |
| Coating: | Black Oxide+Rust-proof oil |
| Inspection: | Besides our in-house inspecion, you could also choose a third party inspection |
| Standard: | ASTM, ASME, DIN, JIS, ISO, BS, API, EN,GOST,etc |
| Certificate: |
1, Raw material certificate(material chemical compositon) 2, Heat treatment sheet report 3, Dimension inspection report 4, UT/MT test report |
| Packing: | Seaworthy plywood packaged on steel pallets or as customer's request |
| Delivery Date: | 15~30 working days |
| Competitive Advantage: | Quality control and management to the whole produce process, including ingot smelting, forging, heat treatment, machining and strictly final inspection prior to delivery. |
