ODM Workshop Electric Double Girder Gantry Crane For Material Loading

Price Negotiable
Price: USD6000-40000/set
MOQ: 1set
Delivery Time: 35-45 working days
Brand: SANTO
Product Description

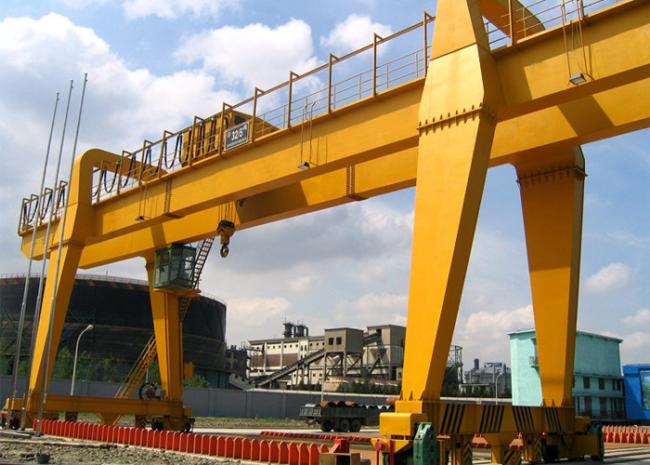

Workshop Gantry Crane , Electric Double Girder Gantry Crane For Material Loading



Description:



Gantry Crane are also known as Portal crane or Goliath crane. Include single girder gantry crane, double girder gantry crane, engineer gantry crane, semi gantry crane, European type gantry crane and operate on floor mounted rails. Mainly used in Steel, Forest Products, Intermodal, Biomass/Pellet, Concrete and many other industries.



The terms gantry crane and overhead crane (or bridge crane) are often used interchangeably, as both types of crane straddle their workload. The usual distinction drawn between the two is that with gantry cranes, the entire structure (including gantry) is usually wheeled (often on rails). By contrast, the supporting structure of an overhead crane is fixed in location, often in the form of the walls or ceiling of a building, to which is attached a movable hoist running overhead along a rail or beam (which may itself move).



Technical Specification:



Lifting Capacity t 5 10 16/3.2 20/5 32/5 50/10
Working Duty ISO A3-A8
Span m 7-35, customized
Lifting Height Main hook m 10 11 10 11 10 11 10 11 10 11 10 12
Aux. hook 10.275,11.275 10.446,11.446 10.73 11.73 10.918 12.918
Speed Lifting Main m/min 11.3 8.5 7.9 7.2 7.5 5.9
Aux. 14.6 15.4 15.4 10.4
Trolley traveling 37.3 35.6 36.6 37 36
Crane traveling 37.3 39.7 40.1 39.7 39.7 37.3 39.7 39.4 38.5
Recommended Tail   43kg/m 43kg/m or QU70
Power Supply   3-Phase 380V 50HZ, or as clients' requirement



Features:


Material: Steel plate material Q235 or Q345B ( similar with foreign steel plate Fe3 or Fe52)
Gantry cranes are more quickly and easily for installed and disassembled, it is ideal choice for use in a rented factory or in multiple work place
Equipped with all the necessary safety device
High reliability component
High work duty, can bearing heavy capacity and long time work
Needn’t any column, runway beam, just travel on the ground
Suit for both of outdoor and indoor
Main electrical parts: Chint, Siemens or Schneider brand



Constituent parts:



According to the industry standard GB/T14406, the gantry crane is mainly composed of the following components
1. Cylindrical wheel
2. Buffer
3. Block brake
4. Steel wire rope
5. Lifting hook
6. Driver's cab
7. Reducer
8. Casting pulley
9. Casting reel
10. Motor
11. Electronic control equipment

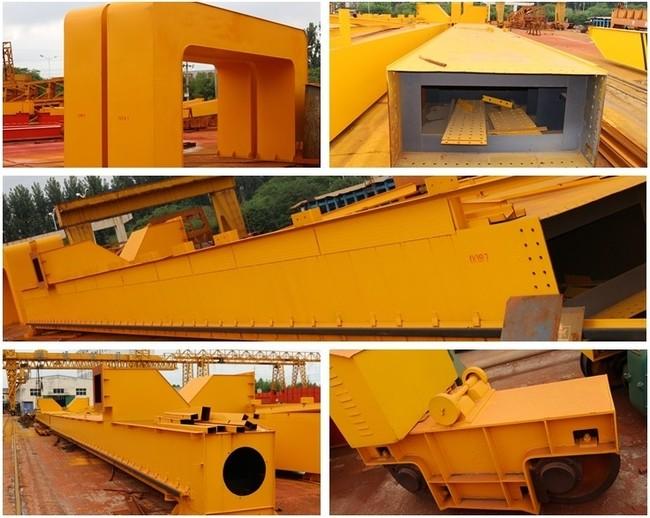

Crane Detail:




Delivery:





Needed information for quotation:



  • Load capacity
  • Span of the crane
  • Lifting height
  • Travelling length
  • What kind of goods does the crane lift?
  • How many hours does the crane work per day and how many times per hour?
  • Electric power supply

According to your requirements, our crane experts will assist you to select a crane that best fits your application.
