100Kn Automatic Hole Punch Machine Hydraulic Round Tube Punching Machine
Stainless Steel Stair Handrail Hydraulic Round Tube Punching Machine

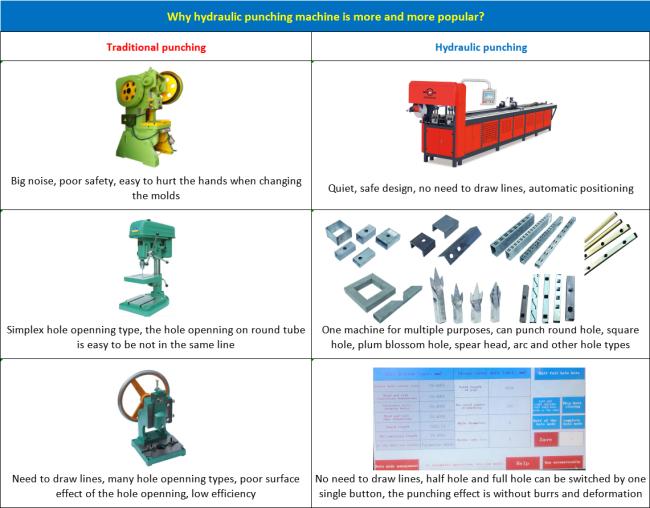

Machine Features
1. Half hole and full hole can be realized on a pipe with equal or unequal hole distance.
2. The sequence of punching and cutting can be reversed, high automation, saving labor forces.
3. Customers can store many production orders in the control system to reduce the trouble and errors for the following reuse.
4. The number of holes can be calculated automatically according to the hole distance.
5. The size of the reserved parts at both ends of the pipe can be adjusted.
6. The feeding speed can be adjusted according to the size of the material.
Technical Parameter
| Hydraulic Zinc Steel Galvanized Steel Tube Punching Machine | |||
| Model | BST-100-2-CKQG | ||
| Hydraulic motor power | 11KW | ||
| Oil cylinder specs. | 100*100mm | ||
| Punching stroke | 100mm | ||
| Punching force | 100Kn | ||
| Max. pressure | 16Mpa | ||
| Punching materials and objects | Aluminum, iron, stainless steel, brass, copper, PVC tubes and profiles. Angle iron, C-shape steel, channel steel and other irregular shaped profiles. | ||
| Profiles punching size | Square tube: Max. 60*60mm (half hole punching), 50*50mm (full hole punching). Angle iron: L60*60mm. Rectangular tube: Max. 50*100mm. | ||
| Power supply | 380V-50Hz | ||
| Control voltage | DC24V | ||
| Cooling method | Forced air cooling 150L | ||
| Control system type | Closed loop control system | ||
| Punching frequency | 0.3-1.5S/Time | ||
| Servo system | 750W | ||
| Operating system | User-friendly touch screen operation | ||
| Touch screen | 10 inches big screen | ||
| Guide rail | Linear guide rail | ||
| Oil tank capacity | 200L | ||
| Oil tank inspection port | Available | ||
| Oil tank drain | Quick ball valve type | ||
| Working light | DC24V-LED working light | ||
| Protection System | Hydraulic pressure protection, voltage protection, motor phase loss and phase sequence protection, motor overheating protection | ||
| Working length | 6000mm | ||
| Overall dimension | L 7000* H 1500* W1200mm | ||
| Machine weight | 2200kg | ||
| Welcome to inquire for more details. We can provide customization services according to customers' needs. | |||
Samples
Application industries
Company introduction
Foshan BST Machinery is the first professional company in China which focuses on R&D of tube punching equipments and moulds. Our company’s products, hydraulic high-speed punching machines and automatic calibration safety moulds, are highly recognized and praised by the industries of stainless steel/ aluminum/ zinc steel security nets, guardrails, shelves, fences, furnitures, steel structures, doors and gates, etc.
We also specialize in some other machineries such as fiber laser cutting machine, CO2 laser cutting machine, laser welding machine, laser cleaning machine, laser marking machine, etc.
FAQ
1. Q: What is the power supply of the machine?
A: The standard power supply in China is 380V, 3-phase, 50Hz. We can also customize as per customer's request.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical and processing requirements, drawings, pictures, industrial voltage, etc.
3. Q: What is the payment term?
A: The payment term is 30% down payment, 70% before shipment (by T/T).
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 20-30 days after receiving down payment.
5. Q: What is the warranty period of the machine?
A: The warranty period is one year since the date of delivery, the consumable parts such as moulds/dies are not covered under warranty.
