60W 80W CO2 Laser Cutting Machine 30m/Min With Motorized Up Down Lifting Table
CO2 Laser Cutting Machine Laser Engraver With Motorized Up Down Lifting Table
Features
1. Self-developed Smart Carver software and motion controller with high-speed motion interpolation algorithm to achieve high speed and stable working;
2. Support Ethernet (10/100M) and USB2.0 transmission, the maximum speed is 12M, longest distance 5m. High efficiency and no signal distorted in long distance transmission;
3. Support work time preview and interruptible engraving recovery after power-off;
4. Support dynamic display of trajectory and coordinate points, real-time work track display;
5. Specially designed and configured power-driven lifting platform makes it easier for customer to hollow and engrave materials with different thickness;
6. Optional professional rotary device for engraving or cutting the cylindrical products.
Technical Parameter
|
Laser power |
60-130w |
|
Lifting height |
200-300mm |
|
Power supply |
220-240V, 50/60Hz |
|
Speed |
0~30m/min |
|
Working environment |
Clean, less dust, Temp: 5~40°C, Humidity:5~80% |
Dimension & Weight
| Model | Working Area | Weight | Overall dimension |
| BST-6040S | 600*400mm | 420Kg | 1540*1050*1100 mm |
| BST-1080S | 1050*800mm | 525Kg | 1825*1580*1080 mm |
| BST-1390S | 1380*950mm | 640Kg | 1980*1750*1090 mm |

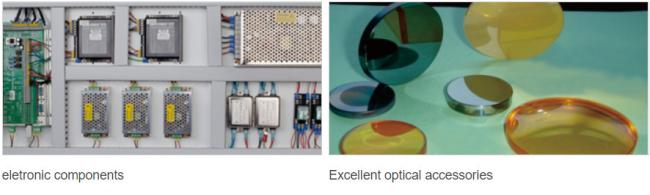

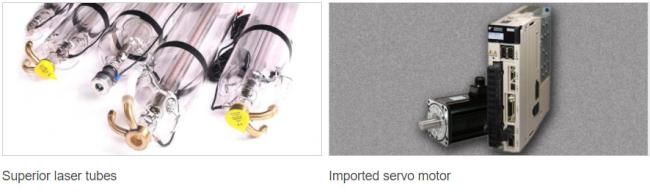

Parts Introduction
Application Materials
Non-metallic materials like wood, paper, leather, fabric, fur, plastic, rubber, and plexiglass, etc.
