Non Contact Type Handheld Laser Cleaning Machine 100W 200W 300W
Non-Contact Type Handheld Laser Rust Removal Machine With Fast Cleaning Speed
Advantages of laser cleaning machine
|
The traditional industrial cleaning mode mostly uses chemical agents and mechanical methods for cleaning. With the increasing awareness of environmental protection and safety, the types of chemicals that can be used in industrial production cleaning will become less and less. Cleaner and non-destructive cleaning method is a problem we have to consider.
|
|
BST laser cleaning machine has the characteristics of no grinding, no contact, no thermal effect and suitable for various materials, which is considered to be the most reliable and effective solution. At the same time, laser cleaning can solve the problems that can not be solved by traditional cleaning methods.
|
|
The BST laser cleaning machine removes rust, oils, lacquers and other coatings without damaging the surface of your components. * No damage to substrates
|
Technical Parameter
| Model | BST-200FLC | BST-300FLC |
| Max. average power | 200W | 300W |
| Power range | 10-100% | |
| Max. peak power | 8-10KW | |
| Output central wavelength | 1064nm | |
| Laser wavelength bandwidth | ≤10nm | |
| Max. pulse energy | 10mJ | 12.5mJ |
| Pulse repetition rate | 20-50kHz | |
| Pulse width | 90-150ns | 130-140ns |
| Power stability | <5%rms | |
| Fibre length | 5m | |
| Min. bending radius | 75mm | |
| Power supply | 220V | |
| Machine total power consumption | <2300W | <3500W |
| Operating temperature | 10 - +40ºC | |
| Storage temperature | -20- +60ºC | |
| Relative humidity | ≤ 80% | ≤ 70% |
| Machine dimensions (L × W × H) | 980 × 613× 1096mm | |
| Total weight | 169Kg | |
| Laser head weight | ≤3Kg | |
| Laser head type | 1D/2D scanning | |
| Laser head scanning range | 100 × 100mm | |
| Laser head focus length | 160, 254, 330mm | |
| Laser head operating mode | Manual/Auto | |
| Laser safety classification | Class 4 | |
Features

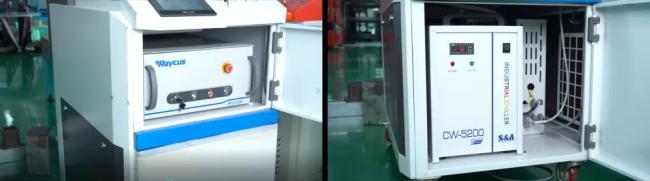

Robust & Transportable Carriage with All Components Built-In
Light and compact structure with casters to facilitate movement, occupying small space. Laser source and water chiller built-in design.

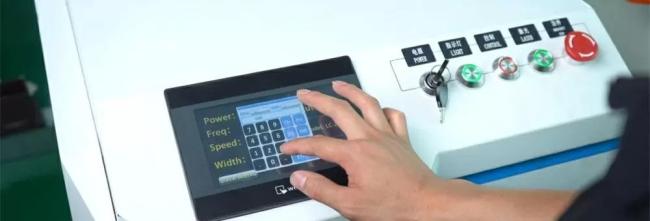

Numerical Control System
Highly responsive touch screen, multi-language optional interface, simply click and enter parameter to operate the laser cleaning machine. It can quickly and effectively respond to your touch commands.

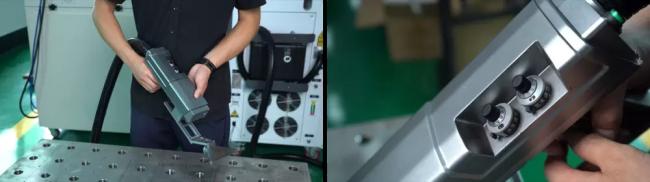

Ergonomic Handheld Cleaning Gun
The cleaning head is compact and lightweight, very comfortable and easy to control and operate.
There are two buttons to adjust the pulse width according to your specific needs.
It can be handheld or cooperated with manipulator to realize automation.
Non-Contact Cleaning, No Damage to The Substrate
Precise cleaning, accurate position and size selection are available. No chemicals, no consumables, safe and environmentally friendly.

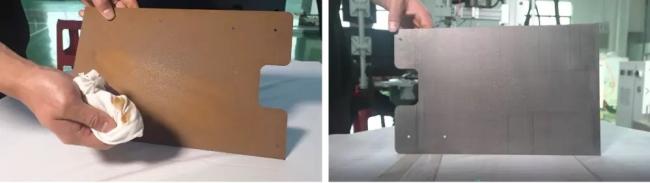

Before After
Laser Cleaning Applications
The advanced laser cleaning technology can be applied to various industries, such as oxide and rust removal, aviation components, paint removal, injection mould cleaning, weld preparation and cleaning, turbine cleaning, surface preparation and other maintenance and preservation.
