Continuous Welding Handheld Laser Welder 1070Nm With Automatic Wire Feeder
Handheld Laser Welding Machine For Continuous Welding With Automatic Wire Feeder
Product Introduction
|
BST handheld laser welding machine adopts the latest generation of fiber laser integrated design, built-in water cooling system, laser source, control system, fiber storage space and other integrated design, saving customers space. There are caster cups at the bottom for easy handling. The mini spherical tri-color indicator light not only takes up little space, but also indicates the working state of the device.
|
|

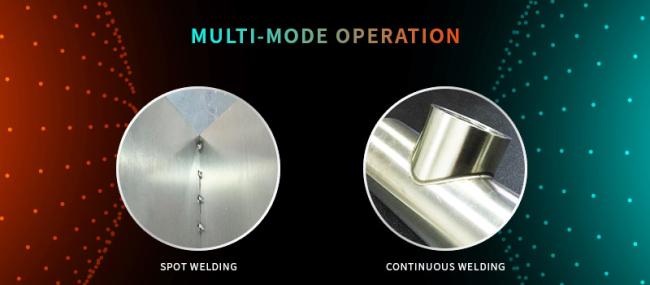

The hand-held welding machine can realize two working modes of spot welding and continuous welding, and the welding power and duty ratio can be set by touch screen. Both the laser and the chiller have an alarm protection function, and the red indicator light will illuminate when an alarm occurs.
|
|
The hand-held welding machine adopts fiber laser, which has many advantages such as high photoelectric conversion efficiency, small volume, maintenance-free, and low failure rate. Simple operation, fast welding speed, welding of metal materials such as thin plate stainless steel plate, steel plate, galvanized plate, etc., can replace traditional welding, widely used in kitchen and bathroom industry, sheet metal cabinet processing industry.
|
Features
*The welding speed and welding quality are better than traditional welding and save cost more than 35,000USD each year.
*The touch screen control panel is versatile and easy to operate.
*Advanced laser processing method and high accuracy.
*The electro-optical conversion efficiency of the fiber laser> 40%; the service life of the pump source> 100,000 hours; lower
maintenance cost; compact size.
*Equipped with automatic wire feeding mechanism, welding is more convenient.
*The welding head is designed with the design method of body engineering, fully considering the comfort of the customer
for long-term use, and has the protection measures to prevent light from the welding material to prevent accidental injury
to others.
Technical Parameter
| Name | Parameters |
| Interface Type | QBH |
| Laser incidence | Coaxial |
| Laser power | 1000W, 1500W, 2000W |
| Laser wavelength | 1070 |
| Collimated focal length | 50mm |
| Focusing length | 100mm |
| Protective gas | Nitrogen or Argon |
| Welding head weight | 1.2KGS for Handheld swing welding head |
| Cooling method | Built-in water cooling |
| Wire feeding method | Motor driven automatic wire feeding (optional) |
| Wire feeding material | 304 stainless steel/carbon steel |
| Wire feeding speed | 17m/min |
| Wire feeding tube length | 3m/5m |
| Electricity demand | 220/380V |
| Machine size | 1000*650*1100mm |
Application materials
Suitable for metals such as stainless steel, carbon steel, copper, aluminum, galvanized plate, etc.
Application industries
Hand-held welding machines are widely used in sanitary ware, food packaging, glasses and watches, auto parts, electronic hardware, and are used in fields that require high depth, smoothness, and fineness.
Welding Parameters
Samples
