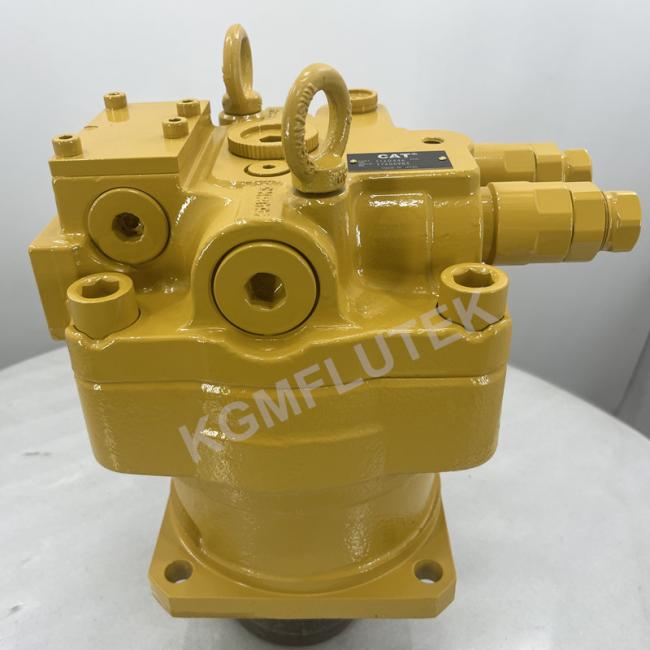

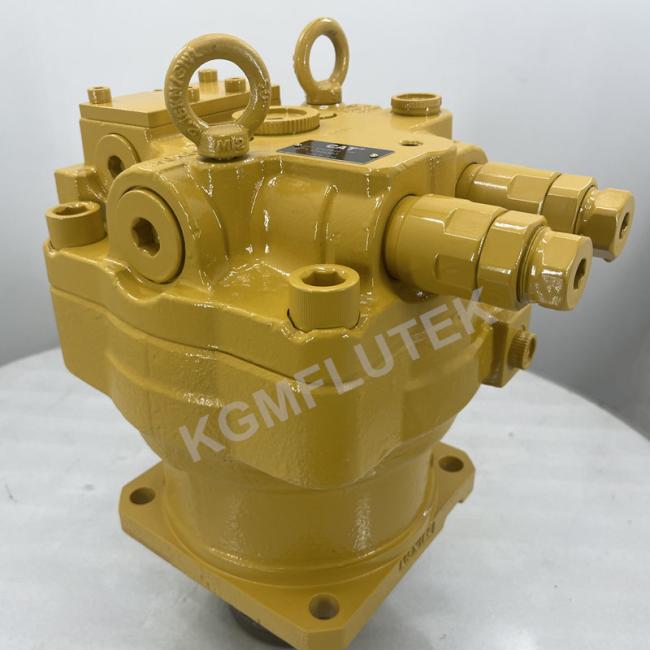

CAT336GC M5X180 Excavator Swing Motor 5160446 CAT Slewing Motor
CAT336GC M5X180 Swing Motor 5160446 CAT Excavator Slewing Motor
Product Details
| CAT336GC M5X180 Swing Motor 5160446 CAT Excavator Slewing Motor | |
| Product name: | CAT Excavator Slewing Motor |
| Part number: | 5160446 |
| Part name: | Hydraulic swing motor |
| Brand Name: | CAT |
| Place of Origin: | Japan |
| Condition: | 100% original brand New |
| Material: | Iron & Steel |
| Application: | Crawler Excavator |
| Applicable model: | CAT336GC |
| Usage: | Hydraulic Machinery Industry, Construction Machinery |
| Dimension(L*W*H): | 52x52x60CM |
| Weight(KGS): | 65KGS |
| Delivery time: | 1-3 Days after we received the payment |
| After Warranty Service: | Online support , Video technical support |
| Warranty: | 6 months |
M5X180 Hydraulic Swing Motor Spare Parts
| PART DESCRIPTION | QTY |
| PISTON SHOE | 9 |
| CYLINDER BLOCK | 1 |
| VALVE PLATE M | 1 |
| RETAINER&BALL GUIDE | 1 |
| RETAINER PLATE | 1 |
| BALL GUIDE | 1 |
| SHOE PLATE | 1 |
| FRICTION PLATE | 2 |
| STEEL PLATE | 3 |
| DRIVE SHAFT | 1 |
| PRESS PIN | 6 |
| BALL GUIDE SPACER | 1 |
| SPACER | 1 |
| COIL SPRING | 1 |
| SNAP RING | 1 |
Features
1. Integrated structure with Axial Piston Motor and Reducer.
2. High reliability - all main parts are made by Automatic CNC producing line.
3. High efficiency - the axial piston motor maintains high efficiency.
4. Compact in volume and low noise.
5. Two-speed function, exchange in high speed and strong torque.
6. Parking brake - included as standard for safety
7. Exchangeable: same flange dimensions with original final drive.
Specifications-M2X/M5X Series Motor
| Model | M2X63 | M2X210 | M5X80 | M5X130 | M5X180 | M5X250 | |
| Displacement (cm3) | 64 | 210.1 | 79 | 129.2 | 180.1 | 250.1 | |
| Pressure (MPa) | Rated | 29.4 | 29.4 | 33 | 32.4 | 32.4 | 33 |
| Max | 34.3 | 34.3 | 40 | 39.2 | 39.2 | 40 | |
| Max speed (min-1) | 2,200 | 1,400 | 2,200 | 1,850 | 1,680 | 1,520 | |
We offer wide range of hydraulic swing motors that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our swing motors are packed well in wooden case.
