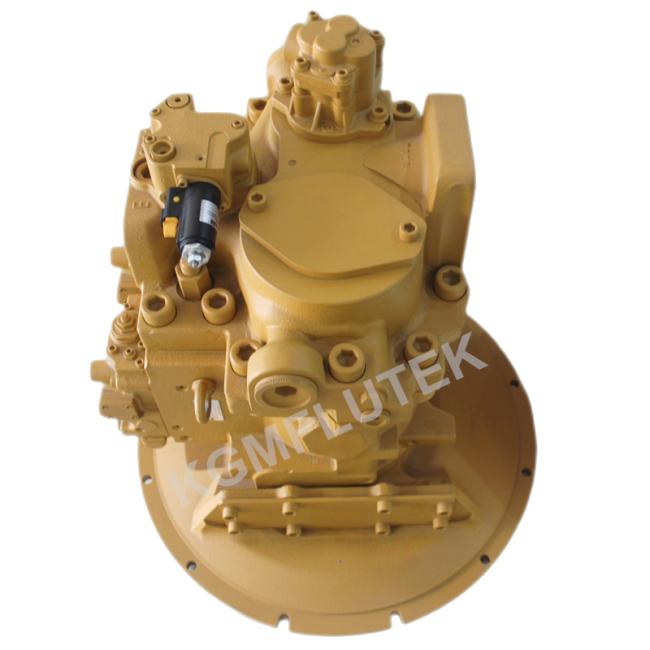

CAT336D Excavator Hydraulic Pump K5V160DP-1VWR-ZN7X-V 3228733 Caterpillar Piston Pump
3228733 Caterpillar Piston Pump CAT336D Hydraulic Pump K5V160DP-1VWR-ZN7X-V
Product Details
|
3228733 Caterpillar Piston Pump CAT336D Hydraulic Pump K5V160DP-1VWR-ZN7X-V |
|
| Product name: | Caterpillar Piston Pump |
| Model: | K5V160DP-1VWR-ZN7X-V |
| Part number: | 3228733 |
| Brand Name: | CAT |
| Place of Origin: | Japan |
| Condition: | 100% Genuine Brand New |
| Material: | Good quality Iron & Steel |
| Application: | CAT Excavator |
| Applicable Model: | CAT336D |
| Usage: | Hydraulic Machinery Industry, Machinery Repair Shops |
| Packing: | Wooden case |
| Package Size: | 98X50X70CM |
| Weight: | 260 KGS |
| Payment Term: | T/T, Paypal, Western Union, Wechat, Alipay |
| Delivery time: | 1-3 Days after received the payment |
| After Warranty Service: | Online support and technical support |
| Warranty: | 6 months |
| Guarantee: We will check the hydraulic pump and send detail pictures to buyer to confirm before shipping. | |
K5V160 Hydraulic Pump Spare Parts
We offer Kawasaki K5V160 hydraulic pump parts, range from K5V80, K5V140, K5V160, K5V200, K5V212. Spare parts include: Rotary Group, Drive Shaft, Support, Swash Plate, Yoke, Thrust Plate, Shoe Plate, Retainer Plate, Set Plate, Ball Guide, Piston Shoe, Pistons, Cylinder Block, Barrel, Valve Plate, Port Plate and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement piston pump parts. Precision piston pump parts can totally interchange with original Kawasaki, same specification and duration.
| Item No. | Name & Description | QTY (pcs) |
| 1 | K5V160 DRIVE SHAFT/SHAFT | 1 |
| 2 | K5V160 SUPPORT | 1 |
| 3 | K5V160 SWASH PLATE/YOKE | 1 |
| 4 | K5V160 THRUST PLATE/SHOE PLATE | 1 |
| 5 | K5V160 RETAINER PLATE/SET PLATE | 1 |
| 6 | K5V160 BALL GUIDE | 1 |
| 7 | K5V160 COIL SPRING | 1 |
| 8 | K5V160 PISTON SHOE/PISTONS | 9 |
| 9 | K5V160 WASHER | 1 |
| 10 | K5V160 CYLINDER BLOCK/BARREL | 1 |
| 11 | K5V160 VALVE PLATE/PORT PLATE | 1 |
Features
K5V series: K5V80, K5V140, K5V160, K5V200, K5V212
The K5V series are variable displacement axial piston pumps of swash plate design, suitable for use in mobile applications such as Excavators, Cranes, etc. Various rotary group layouts, tandem type with PTO and parallel type are available to respond to applications. There are high reliability and more than 25 years of experience in the on mobile applications.
| Model | K5V80 | K5V140 | K5V160 | K5V200 | K5V212 | |
| Displacement (cm3) | 80 | 140 | 160 | 200 | 214 | |
| Pressure (MPa) | Rated | 34.3 | ||||
| Peak | 39.2 | |||||
| Max Self Priming Speed (min-1) | 2,460 | 2,160 | 2000 [2,350]*1 |
1850 [2,200]*1 |
2,000*1 | |
| Structure | Single | ◯ | ◯ | ◯ | ◯ | - |
| Tandem | ◯ | ◯ | ◯ | ◯ | - | |
| Parallel | - | ◯ | ◯ | ◯ | ||
Compatible equipment models
EXCAVATOR 330D 330D FM 330D L 330D LN 330D MH 336D 336D L 336D LN 336D2 340D L 340D2 L
MOBILE HYD POWER UNIT 330D 330D L 336D L
WHEELED EXCAVATOR M330D Caterpillar
We offer wide range of hydraulic pumps that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our Hydraulic Pumps are packed well in wooden case.
