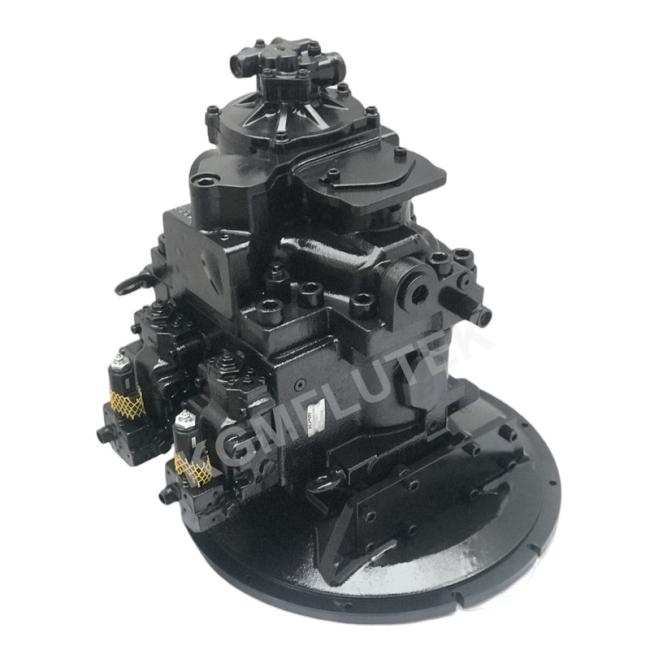

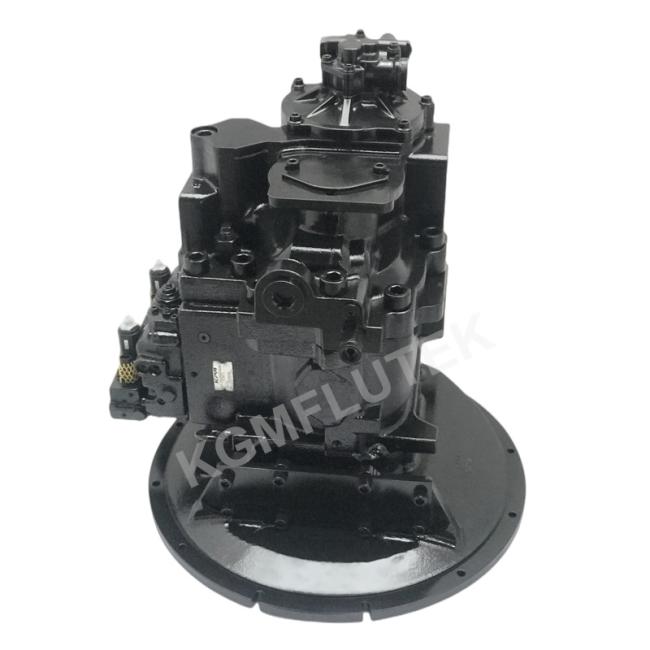

KOBELCO SK460-8 Complete Hydraulic Main Pump K5V200DPH1K1R-YT9K-V
KOBELCO SK460-8 Complete Hydraulic Main Pump K5V200DPH1K1R-YT9K-V
Product Details
|
KOBELCO SK460-8 Complete Hydraulic Main Pump K5V200DPH1K1R-YT9K-V |
|
| Product name: | Complete Hydraulic Main Pump |
| Model: | K5V200DPH1K1R-YT9K-V |
| Brand Name: | KPM |
| Place of Origin: | Japan |
| Condition: | 100% Original Brand New |
| Material: | Good quality Iron & Steel |
| Application: | KOBELCO Excavator |
| Applicable Model: | SK450-8 SK460-8 SK480-8 |
| Usage: | Hydraulic Machinery Industry, Construction Machinery Parts |
| Packing: | Wooden case |
| Package Size: | 98X50X70CM |
| Weight: | 280 KGS |
| Payment Term: | T/T, Paypal, Western Union, Wechat, Alipay |
| Delivery time: | 1-3 Days after received the payment |
| After Warranty Service: | Online support and technical support |
| Warranty: | 6 months |
| Guarantee: We will check the hydraulic pump and send detail pictures to buyer to confirm before shipping. | |
K5V200 Hydraulic Pump Spare Parts
We offer hydraulic pump parts, range from K5V80, K5V140, K5V160, K5V200, K5V212. Spare parts include: Rotary Group, Drive Shaft, Support, Swash Plate, Yoke, Thrust Plate, Shoe Plate, Retainer Plate, Set Plate, Ball Guide, Piston Shoe, Pistons, Cylinder Block, Barrel, Valve Plate, Port Plate and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement piston pump parts. Precision piston pump parts can totally interchange with original Kawasaki, same specification and duration.
| Item No. | Name & Description | QTY (pcs) |
| 1 | K5V200 DRIVE SHAFT/SHAFT | 1 |
| 2 | K5V200 SUPPORT | 1 |
| 3 | K5V200 SWASH PLATE/YOKE | 1 |
| 4 | K5V200 THRUST PLATE/SHOE PLATE | 1 |
| 5 | K5V200 RETAINER PLATE/SET PLATE | 1 |
| 6 | K5V200 BALL GUIDE | 1 |
| 7 | K5V200 COIL SPRING | 1 |
| 8 | K5V200 PISTON SHOE/PISTONS | 9 |
| 9 | K5V200 WASHER | 1 |
| 10 | K5V200 CYLINDER BLOCK/BARREL | 1 |
| 11 | K5V200 VALVE PLATE/PORT PLATE | 1 |
Features
K5V series: K5V80, K5V140, K5V160, K5V200, K5V212
The K5V series are variable displacement axial piston pumps of swash plate design, suitable for use in mobile applications such as Excavators, Cranes, etc. Various rotary group layouts, tandem type with PTO and parallel type are available to respond to applications. There are high reliability and more than 25 years of experience in the on mobile applications.
| Model | K5V80 | K5V140 | K5V160 | K5V200 | K5V212 | |
| Displacement (cm3) | 80 | 140 | 160 | 200 | 214 | |
| Pressure (MPa) | Rated | 34.3 | ||||
| Peak | 39.2 | |||||
| Max Self Priming Speed (min-1) | 2,460 | 2,160 | 2000 [2,350]*1 |
1850 [2,200]*1 |
2,000*1 | |
| Structure | Single | ◯ | ◯ | ◯ | ◯ | - |
| Tandem | ◯ | ◯ | ◯ | ◯ | - | |
| Parallel | - | ◯ | ◯ | ◯ | ||
KOBELCO hydraulic pump models
| SK115/135SR | K3V63DTP-0E01 |
| SK120-1 | K3V63DT-9C0B |
| SK140-8 | K3V112DTP |
| SK160 MARK 1V | K3V63DT-9C1B |
| SK200-3/5 | K3V112BDT-OE11 |
| SK200-6 new model | K3V112DTP-9TDL |
| SK200-6 old model | K3V112DT-9T1L |
| SK200-6E | K3V112DTP-9TEL |
| SK200SR | K5V80DTP-OE02 |
| SK200-8 | K3V112DTP-YT6K |
| SK220-10 | K7V125 |
| SK230-6 | K3V112DTP-9TCL |
| SK230-6E/SK250-6E | K3V112DTP-9TGL |
| SK235SR new model | K3V112DP-1E02V |
| SK235SR old model | K3V112DP-9R0D |
| SK250-10/SK260-10 | K7V125DTP-0E1K |
| SK200/250/260-8 | K3V112DTP-YT6K |
| SK330-6/6E | K3V112DTP-9TBR/S |
| SK350-6/6E | K5V140DTP-9TBR/S |
| SK350-8 | K5V140DTP-YT6K |
| SK450-1 | K3V180DT-9C06 |
| SK450-6 | K3V180DTH-9T0V |
| SK450-8/460-8/480-8 | K5V200DPH-YT9K |
We offer wide range of hydraulic pumps that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our Hydraulic Pumps are packed well in wooden case.
