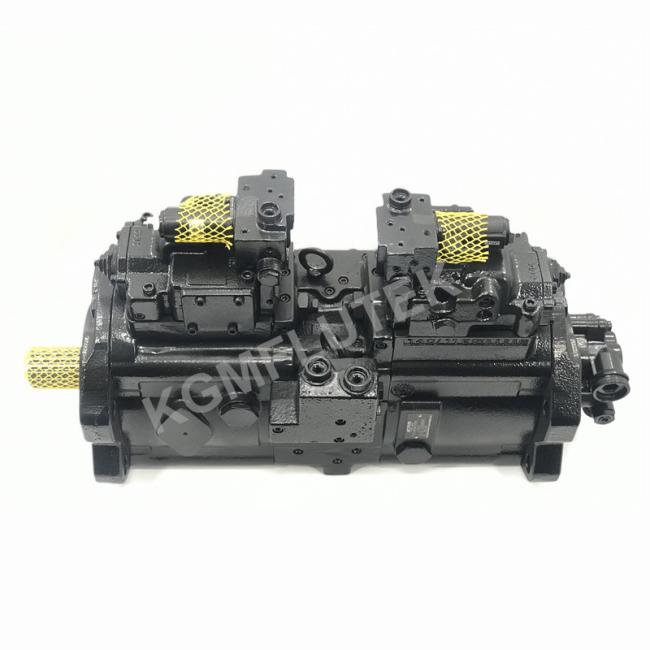

SK350-8 Kobelco Kawasaki Axial Piston Pump K5V140DTP109R-YT6K-V
SK350-8 KOBELCO KAWASAKI Axial Piston Pump K5V140DTP109R-YT6K-V
Product Details
SK350-8 KOBELCO KAWASAKI Axial Piston Pump K5V140DTP109R-YT6K-V | |
| Product name: | K5V KAWASAKI Axial Piston Pump |
| Model: | K5V140DTP109R-YT6K-V |
| Part number: | LC10V00029F4 |
| Brand Name: | KPM |
| Place of Origin: | Japan |
| Condition: | Genuine Brand New |
| Material: | Good quality Iron & Steel |
| Application: | KOBELCO Excavator |
| Applicable Model: | SK350-8 |
| Usage: | Hydraulic Machinery Industry, Construction Machinery Parts |
| Packing: | Wooden case |
| Package Size: | 85X45X64CM |
| Weight: | 165 KGS |
| Payment Term: | T/T, Paypal, Western Union, Wechat, Alipay |
| Delivery time: | 1-3 Days after received the payment |
| After Warranty Service: | Online support and technical support |
| Warranty: | 6 months |
| Guarantee: We will check the hydraulic pump and send detail pictures to buyer to confirm before shipping. | |
K5V140 Hydraulic Pump Spare Parts
We offer hydraulic pump spare parts, range from K5V80, K5V140, K5V160, K5V200, K5V212. Spare parts include: Rotary Group, Drive Shaft, Support, Swash Plate, Yoke, Thrust Plate, Shoe Plate, Retainer Plate, Set Plate, Ball Guide, Piston Shoe, Pistons, Cylinder Block, Barrel, Valve Plate, Port Plate and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement piston pump parts. Precision piston pump parts can totally interchange with original Kawasaki, same specification and duration.
| Item No. | Name & Description | QTY (pcs) |
| 1 | K5V140 DRIVE SHAFT/SHAFT | 1 |
| 2 | K5V140 SUPPORT | 1 |
| 3 | K5V140 SWASH PLATE/YOKE | 1 |
| 4 | K5V140 THRUST PLATE/SHOE PLATE | 1 |
| 5 | K5V140 RETAINER PLATE/SET PLATE | 1 |
| 6 | K5V140 BALL GUIDE | 1 |
| 7 | K5V140 COIL SPRING | 9 |
| 8 | K5V140 PISTON SHOE/PISTONS | 9 |
| 9 | K5V140 WASHER | 1 |
| 10 | K5V140 CYLINDER BLOCK/BARREL | 1 |
| 11 | K5V140 VALVE PLATE/PORT PLATE | 1 |
Features
K5V series: K5V80, K5V140, K5V160, K5V200, K5V212
The K5V series are variable displacement axial piston pumps of swash plate design, suitable for use in mobile applications such as Excavators, Cranes, etc. Various rotary group layouts, tandem type with PTO and parallel type are available to respond to applications. There are high reliability and more than 25 years of experience in the on mobile applications.
| Model | K5V80 | K5V140 | K5V160 | K5V200 | K5V212 | |
| Displacement (cm3) | 80 | 140 | 160 | 200 | 214 | |
| Pressure (MPa) | Rated | 34.3 | ||||
| Peak | 39.2 | |||||
| Max Self Priming Speed (min-1) | 2,460 | 2,160 | 2000 [2,350]*1 | 1850 [2,200]*1 | 2,000*1 | |
| Structure | Single | ◯ | ◯ | ◯ | ◯ | - |
| Tandem | ◯ | ◯ | ◯ | ◯ | - | |
| Parallel | - | ◯ | ◯ | ◯ | ||
KOBELCO hydraulic pump models
YM10V00001F4, 72204983, 24100N6224F2, YN10V00023F1, LQ10V00012F2, YN10V00029F2, LQ10V00018F1, LQ10V00011F3,
YN10V00017F2, LC10V00029F2, LC10V00029F4, LC10V00029F1, YN10V00036F1, YN10V00036F4,LQ10V00018F1, PH10V00013F2,
PM10V00013F2, YN10V00024F1, LC10V00018F1, LS10V00018F1, YF10V00003F1, VI8973710430, YN10V00008F1, YN10V00012F2,
YN10V00014F2, YN10V00014F3, YN10V00019F1, YN10V00036F1, 24100J13010F2, 24100J13010F3, 24100J13010F4
We offer wide range of hydraulic pumps that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our Hydraulic Pumps are packed well in wooden case.
