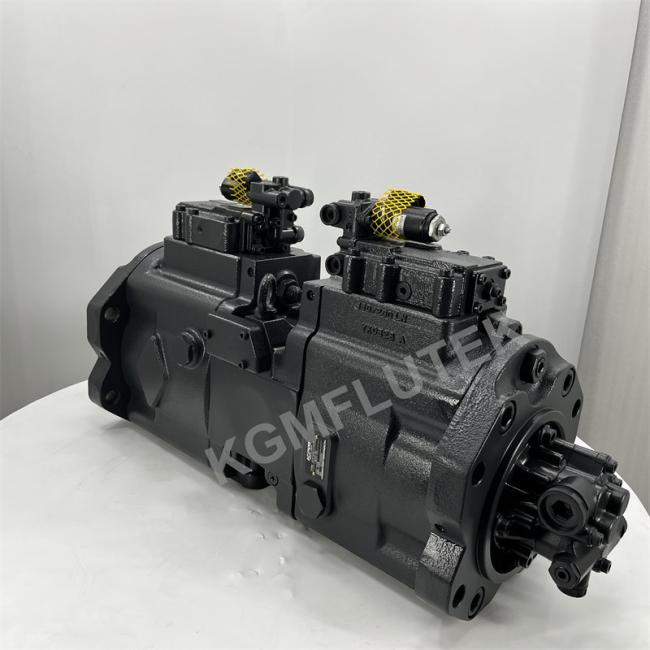

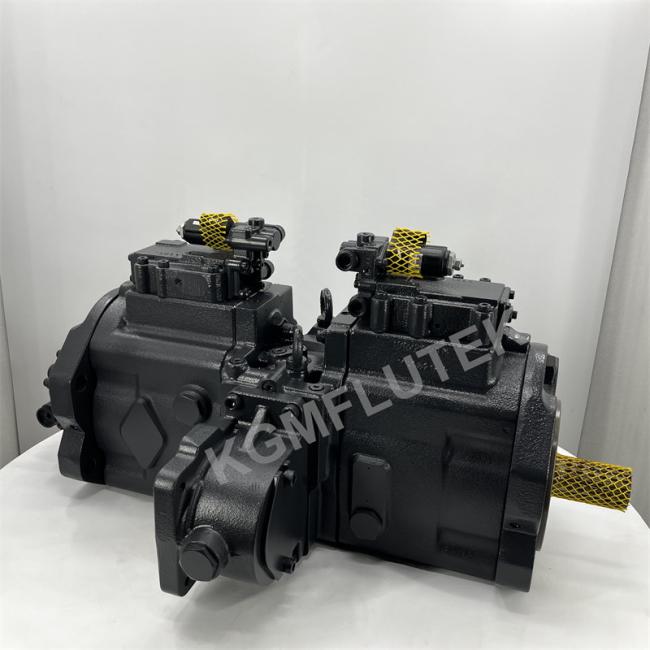

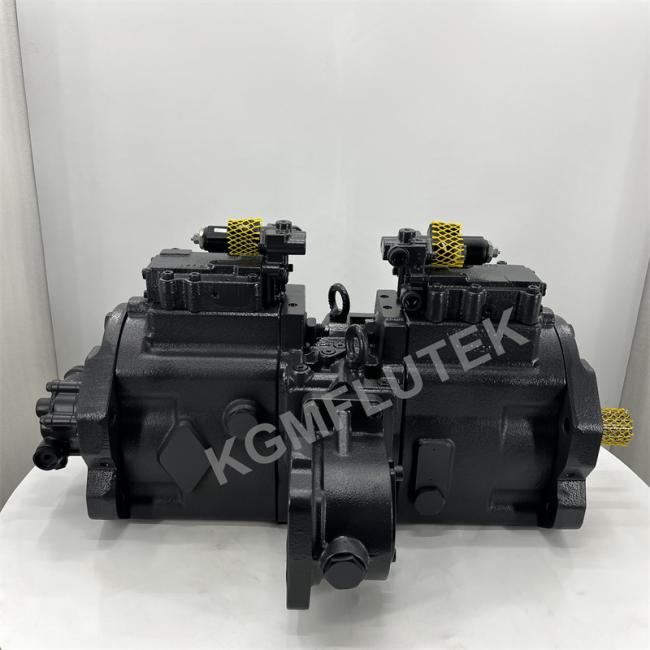

Sany SMHW48 Handling Machine Kawasaki Main Pump K5V160DTP1X7R-0E40-BV
Sany SMHW48 Material Handling Machine Kawasaki Main Pump K5V160DTP1X7R-0E40-BV
Product Details
Sany SMHW48 Material Handling Machine Kawasaki Main Pump K5V160DTP1X7R-0E40-BV | |
| Product name: | Material Handling Machine Main Pump |
| Model: | K5V160DTP1X7R-0E40-BV |
| Brand Name: | Kawasaki KPM / Flutek |
| Place of Origin: | Japan / Korea |
| Condition: | 100% Genuine Brand New |
| Material: | Good quality cast Iron & Steel |
| Application: | Sany Material Handling Machine |
| Applicable Model: | Sany SMHW48 |
| Usage: | Hydraulic Machinery Industry, Construction Machinery Parts |
| Packing: | Wooden case |
| Package Size: | 98X50X63CM |
| Weight: | 195 KGS |
| Payment Term: | T/T, Western Union, Paypal, Alipay, Wechat |
| Delivery time: | 1-3 Days after we received the payment |
| After Warranty Service: | Online support and technical video support |
| Warranty: | 6 months |
| Guarantee: We will check the hydraulic pump and send detail pictures to buyer to confirm before shipping. | |
K5V160 Hydraulic Pump Spare Parts
We offer hydraulic pump spare parts, range from K5V80, K5V140, K5V160, K5V200, K5V212. Spare parts include: Rotary Group, Drive Shaft, Support, Swash Plate, Thrust Plate, Retainer Plate, Ball Guide, Piston Shoe, Cylinder Block, Valve Plate and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement piston pump parts. Precision piston pump parts can totally interchange with original Kawasaki, same specification and duration.
| Item No. | Name & Description | QTY (pcs) |
| 1 | K5V160 DRIVE SHAFT | 1 |
| 2 | K5V160 SUPPORT | 1 |
| 3 | K5V160 SWASH PLATE | 1 |
| 4 | K5V160 THRUST PLATE | 1 |
| 5 | K5V160 RETAINER PLATE | 1 |
| 6 | K5V160 BALL GUIDE | 1 |
| 7 | K5V160 COIL SPRING | 9 |
| 8 | K5V160 PISTON SHOE | 9 |
| 9 | K5V160 WASHER | 1 |
| 10 | K5V160 CYLINDER BLOCK | 1 |
| 11 | K5V160 VALVE PLATE | 1 |
Features
K5V series: K5V80, K5V140, K5V160, K5V200, K5V212
The K5V series are variable displacement axial piston pumps of swash plate design, suitable for use in mobile applications such as Excavators, Cranes, etc. Various rotary group layouts, tandem type with PTO and parallel type are available to respond to applications. There are high reliability and more than 25 years of experience in the on mobile applications.
| Model | K5V80 | K5V140 | K5V160 | K5V200 | K5V212 | |
| Displacement (cm3) | 80 | 140 | 160 | 200 | 214 | |
| Pressure (MPa) | Rated | 34.3 | ||||
| Peak | 39.2 | |||||
| Max Self Priming Speed (min-1) | 2,460 | 2,160 | 2000 [2,350]*1 | 1850 [2,200]*1 | 2,000*1 | |
| Structure | Single | ◯ | ◯ | ◯ | ◯ | - |
| Tandem | ◯ | ◯ | ◯ | ◯ | - | |
| Parallel | - | ◯ | ◯ | ◯ | ||
Advantages
1. Wide product range and delivery goods in time
2. Guaranteed quality and pretty competitive price.
3. Products are superior in quality. Each product must pass strict inspection by our QC and engineer.
4. We have more than 10 years in construction machinery parts in Oversea market
5. Honesty and trustworthiness in business
6. Perfect after-sales service system, all our products have the quality guarantee.
We offer wide range of hydraulic pumps that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our Hydraulic Pumps are packed well in wooden case.
