Supermarket Special Curved Glass Meat Display Freezer

Product Introduction

1. Front fixed curved glass, back sliding door or flip door optional
2. Curved glass design, thorough display of meat
3. Forced air cooling
4. Painted steel exterior
5. Stainless steel internal base
6. Stainless steel work surface, more durable
7. Temperature adjustment by thermostat
8. Self-illuminated with LED lights

Product Size

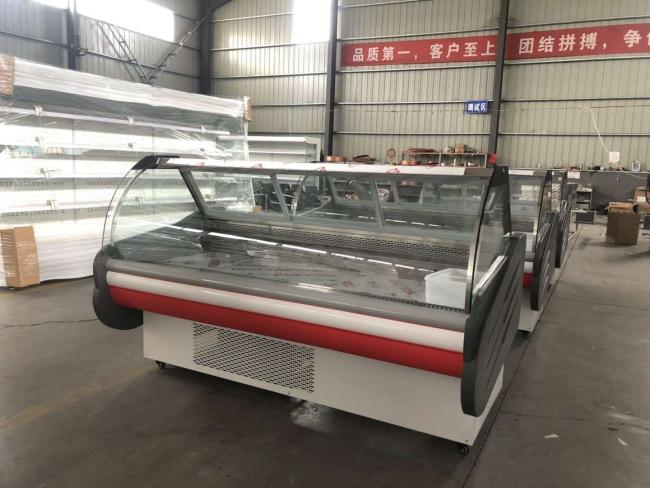

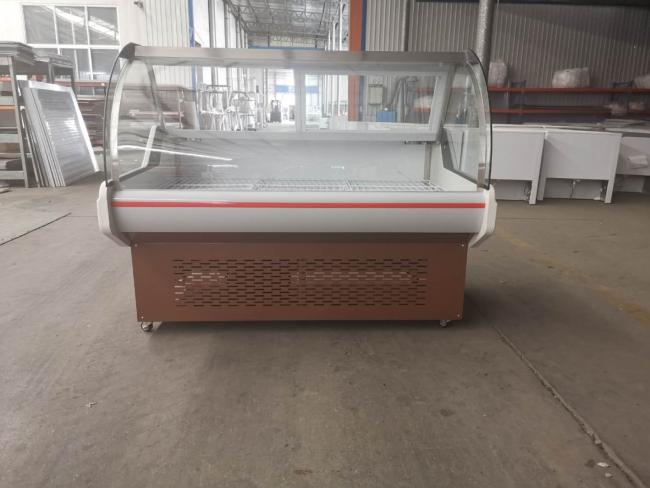

Product Image

This product is fresh meat display cabinet with uniform and constant temperature, mainly used in supermarkets, butcher stores, etc., for displaying fresh meat and seafood. Good preservation effect.

Product production process

Types of freezer thermostats.
1,Electronic temperature controller
Electronic temperature controller (resistance type) is the use of resistance to measure the temperature sensing method, generally using platinum wire, copper wire, tungsten wire and semiconductor (thermistor, etc.) for temperature resistance, these resistors have their own advantages. Most of the home air conditioning sensors are thermistor type.
2,Vapor pressure type
The action of the bellows acts on the spring, the spring force is controlled by the knob on the control board, the capillary tube is placed in the refrigerator freezer, the temperature of the indoor circulation back to the air to react. When the temperature rises to the set temperature, the capillary tube and bellows in the temperature-sensitive agent gas expansion, so that the bellows elongation and overcome the spring force to switch contacts on, the compressor operation, the system cooling, until the set temperature down, temperature-sensitive package gas contraction, bellows contraction and spring together, the switch will be placed in the off position, so that the compressor motor circuit cut off. This repeated action, so as to achieve the purpose of temperature control.
