Agricultural Wire Mesh Making Machine
1 / 2 Inch PLC Hexagonal Wire Mesh Machine
This machine is also called hexagonal wire netting machine, chicken wire mesh netting machine.
Hexagonal wire mesh is widely used in fences of farmland and grazing land, chicken husbandry,
reinforced ribs of building walls and other nets for separation.
Advantages of PLC Hexagonal Wire Mesh Machine:
1:Fault protection,overload protection,motor if overload or the device will automatically stop and alarm if the power is suddenly increased,and the screen will be displayed indicate the fault location without damage to the mechanical structure.
2:Power off protection function ,The equipment in the process of running suddnly power off,The system will run for a short time to record the location of the power outage,and then the work can be carried out smoothly without adjustment when the power is switched on.
3:Location memory function,our device can be in any action link make the device stop working losing position,which is convenient for start-stop operation.
4:Reset recovery function,can be used whne the device is confused.with this function,we wrote worke to restorefactory settings in the system.as long as the device is adjusted to the specified position,One-key recovery,Easy to adjust.
Technical Parameter
| Raw material | Galvanized steel wire,PVC coated wire |
| Wire diameter | Normally 0.40-2.2mm |
| Mesh size | 1/2"(15mm); 1"(25mm or 28mm); 2"(50mm); 3"(75mm or 80mm)............ |
| Mesh width | can be customized according to customer requirements |
| Working speed |
If your mesh size is 1/2'',it is about 80M/h If your mesh size is 1'',it is about 120M/h |
| Number of twist | 6 |
| Note |
1.One set machine can only do one mesh opening. 2.We accept an special orders from any clients. |
FAQ:
Q: Are you really factory?
A: Yes,We are a professional wire mesh machines manufacturer. We dedicated in this industry more than 30 years. We can offer you good quality machines.
Q:Where is your factory located? How can I visit there?
A:Our factory is located in ding zhou and shijiazhunag county, hebei Province, China.All our clients, from home or abroad, are warmly welcome to visit our company !
Q: What is the voltage ?
A: To ensure each machine runs well in different country and region, It can be customized according to our customer’s requirments.
Q: What's the price of your machine ?
A: Please tell me wire diameter, mesh size,and mesh width.
Q: What is your payment terms?
A:Usually by T/T ( 30% in advance, 70% T/T before shipment) or 100% irrevocable L/C at sight, or cash etc. It is negotiationable.
Q: Do your supply includes installation and debugging ?
A: Yes. We will send our best engineer to your factory for installation and debugging.
Q: How long is your delivery time?
A:It will be 25- 30 days after received your deposit.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience of exporting. your customs clearance will be no problem..
Q: Why choose us?
A. We have an inspection team to check the products at all stages of the manufacturing process-raw material100% inspection in assembly line to achieve the required quality levels.Our guarantee time is 2 years since the machine was installed in your factory.

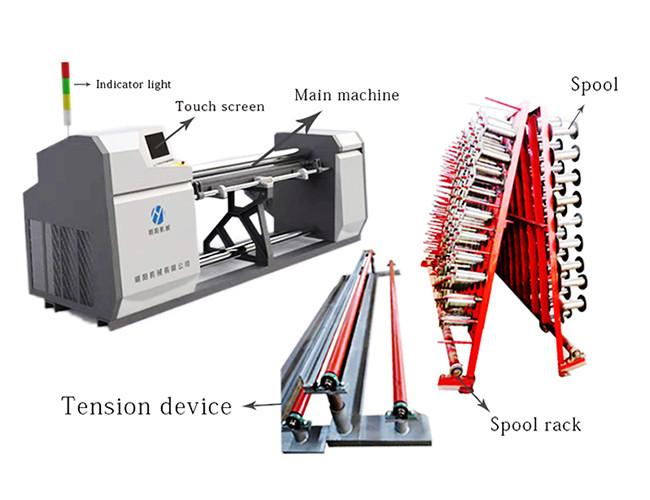

Machine Picture:

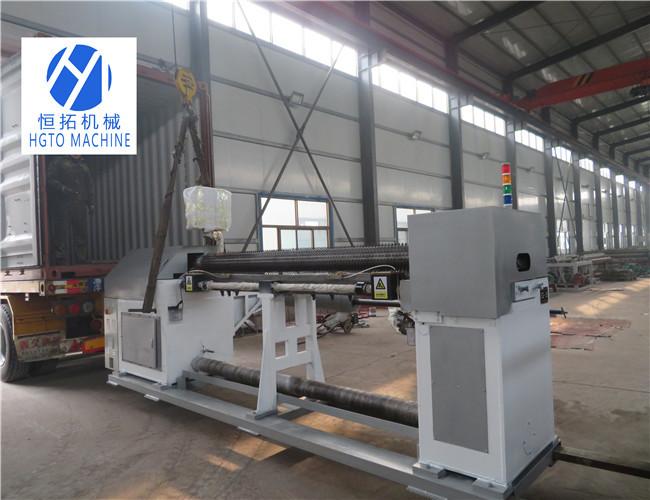

Machine Loading

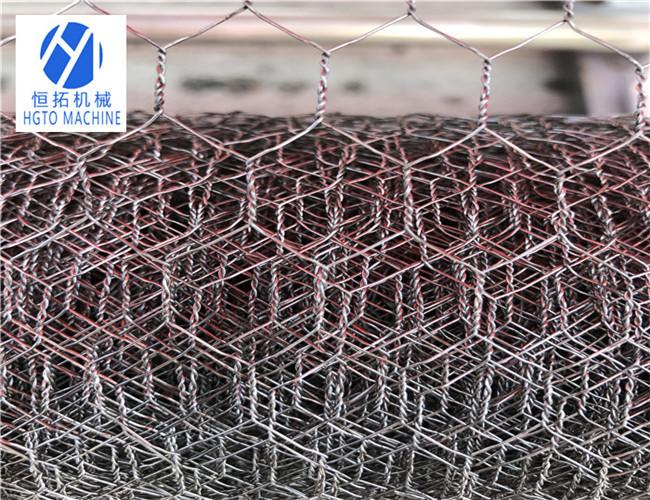

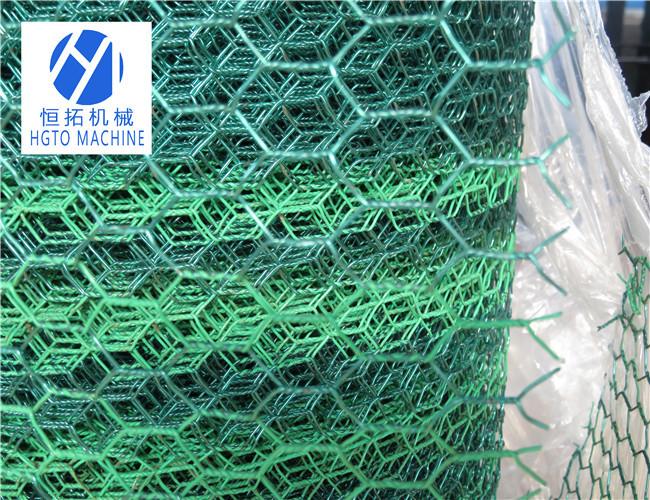

Finished Mesh
