Small Iron Automatic Hexagonal Wire Mesh Machine 220V Wall Heat Preservation
Small Size,The Wall Heat Preservation ,Iron Wire PLC Hexagonal Wire Mesh Machine

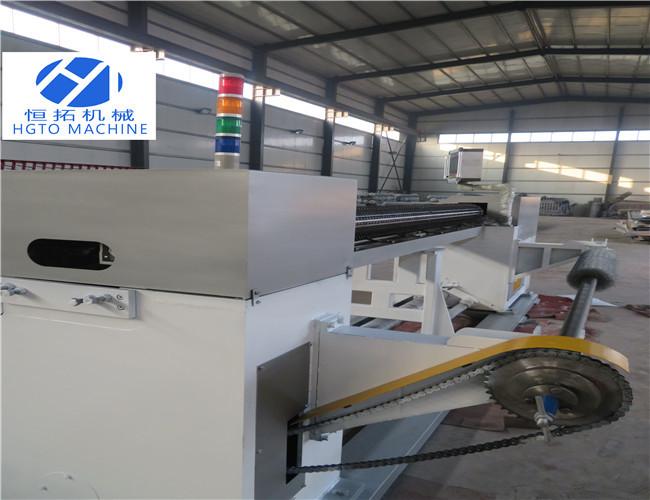

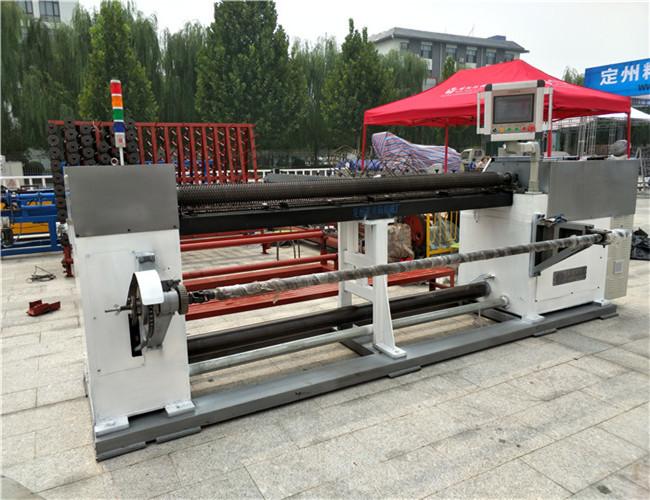

Hexagonal wire mesh netting machine also called hexagonal wire netting machine, is automatically feeding wire weaving mesh, taking up rolls and higher speed than similar machinery. Hexagonal wire mesh is widely used in fences of farmland and grazing land, chicken husbandry, reinforced ribs of building walls and other nets for separation
Technical Parameters:
| Key words | Automatic Hexagonal Galvanized Chicken Wire Mesh Netting Making Weaving Machine |
| Raw materials | Galvanized Wire /Pvc Coated Wire etc. |
| Mesh width | 2000mm-4000mm |
| Mesh size | 16-85mm |
| Wire diameter | 0.38-2.5mm |
| Number of twisted | 3-6 |
| Weight | 3500kg-4500kg |
| Motor | 2.2kg-3kg |
| Overall size | 4700*1750*1650mm |
Automatic Hexagonal Galvanized Chicken Wire Mesh Netting Making Weaving Machine :

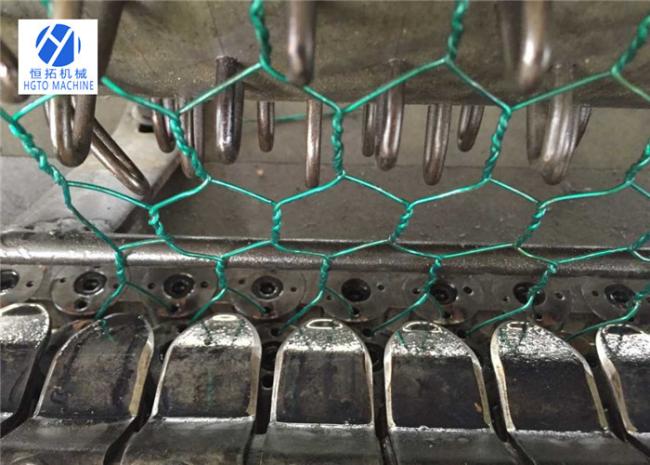

1. This machine can produce the hexagonal wire mesh with two ways twists; it has characters of
smooth running and high efficiency.
2. A full set reverse twisted hexagonal wire mesh making machine include main machine and
spool winding machine
3. Our machine adopts automatic stop system, once there are any broken wires, it will be stopped
automatically.
4. By improving the transmission parts, the noise is greatly reduced.
5. Our products use high-precision ball screw and linear guide rail, reduce the load of click, improve the precision of twist, in addition, the bearing steel material makes it more wear-resistant and longer life
