Hexagonal Gabion Expanded Metal Mesh Making Machine Mining Use
60mm, Mining Use, Horizontal Type Hexagonal Wire Mesh Making Machine
Gabion basket machine have smooth operation, low noise and high efficiency characteristics.Gabion mesh machine, also called horizontal hexagonal wire mesh machine or gabion basket machine, Stone cage machine, Gabion box machine, is to produce the hexagonal wire mesh for reinforcement stone box use.
Specification of our hex wire mesh making machine:
| Model | Mesh Size |
Max Width |
Wire Diameter | Twisted Number | Drive Shaft Speed | Motor Capacity |
| / | mm | mm | mm | m/h | kw | |
| HGTO-6080 | 60*80 | 3700 | 1.6-3.0 | 3/5 | 80-120 | 7.5 |
| HGTO-80100 | 80*100 | 1.6-3.0 | ||||
| HGTO-100120 | 100*120 | 1.6-3.5 | ||||
| HGTO-120150 | 120*150 | 1.6-3.2 | 120+ | |||
| Dimension | Weight:5.5t | |||||
| Remark |
Special mesh size can be customized according to customer requirements |
|||||
Advantage:
1. Reduce the investment cost by 50% VS heavy type, and provide production efficiency.
2. Adopting horizontal structure, the machine runs more smoothly.
3. Reduced volume, reduced floor area, greatly reduced electricity consumption, and reduced costs in many aspects.
4. The operation is more simple, two people can operate, greatly reducing the long-term labor cost.
5. Suitable for hot dip galvanized wire, zinc aluminum alloy, low carbon steel wire, electric galvanized, PVC plastic and other materials.
RFQ:
Q: Where is your factory located?
A: Our factory is located in Dingzhou and Shijiazhuang county, Hebei Province of China. The nearest airport is Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 30years. We have our own technology develop department and testing deparment.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. your customs clearance will be no problem.

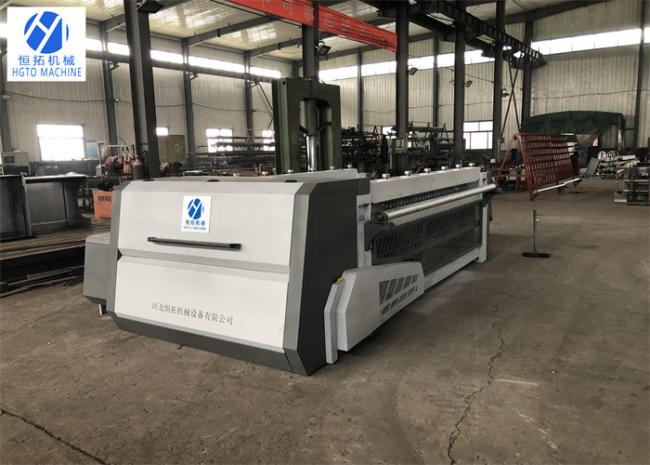

Main machine:

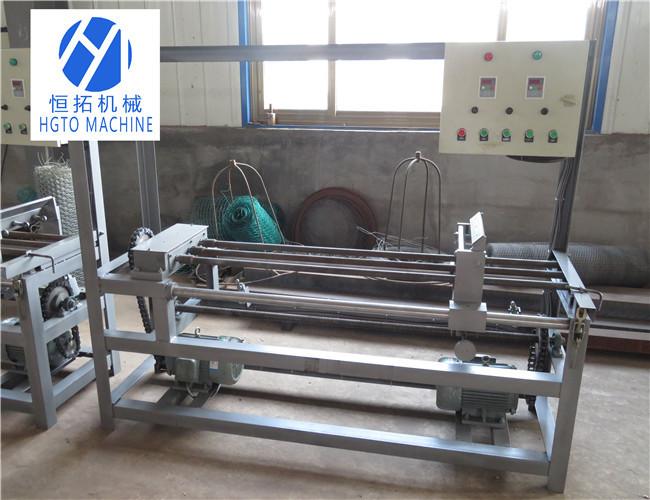

Auxiliary Equipments:

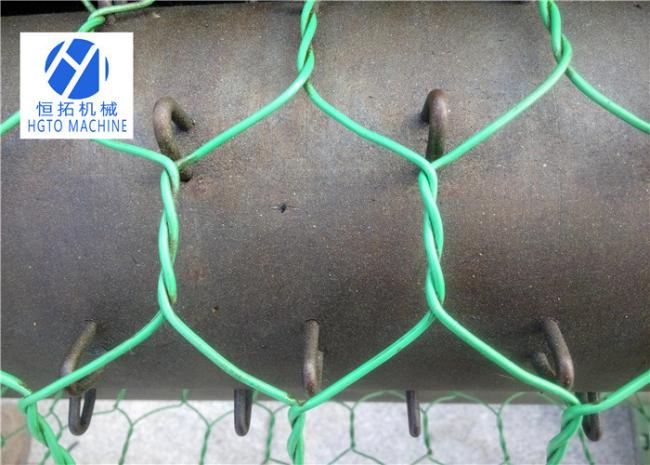

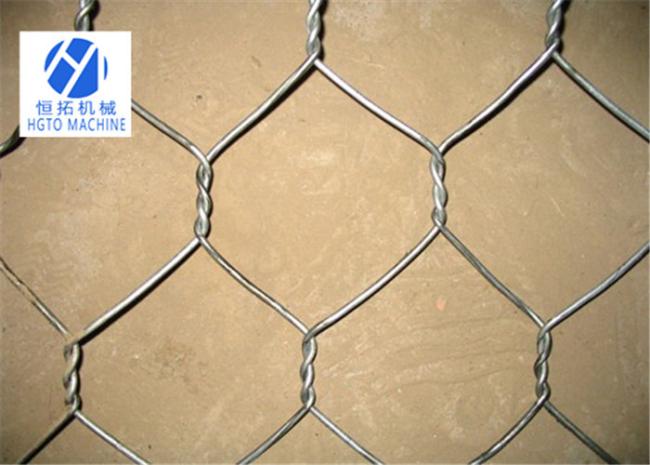

Finished mesh picture:
