ISO 18.5kw High Carbon Wire Drawing Machine , Shockproof Steel Drawing Machine

                                                                                  High Carbon Steel Wire Straight Line Wire Drawing Machine

We have dry type and wet type wire drawing machine in various model sizes and we can meet customers' different needs. With the latest technology and high machine quality, our machine could run at high speed and high stability with low failure rate and easy operation.

Main features of direct wire drawing machine: reliable, energy saving, safety, convenience, low noise

Technical parameters of direct wire drawing machine:

1. Roll diameter: φ 560mm ;

2. Feed line diameter: φ 6.5mm ;

3. Outlet diameter: φ 1.35mm ;

4. Wire drawing speed : designed according to the principle of high speed diameter load, low speed and heavy load;

5. The drawing direction is from left to right ;

6. Drawing mode : spiral self descaling narrow slot water cooling; External annular air cooling ;

7. The drum is cast steel (ZG370 - 640) matrix, the working surface is sprayed with tungsten carbide material, the surface is polished and then polished, the hardness is ≥HRC58 ;

8. Tuning rod is made of bearing steel, hardness is not less than HRC58 ;

9. Adopt the form of two-section series welding frame ;

PLC and inverter control system ensure the wire drawing steady in high speed.The Full-automatic system,Can reduce a half of electricity and operator.

Straight line wire drawing machine is widely used,is suitable for all the metal wire,low / middle / high carbon steel wire,copper wire,stainless steel wire,nail wire,spring wire ,welding wire,gi wire,etc,suitable wire diameter range is very large,and can combine with water tank wire drawing machine.

Our machines are applied for drawing wire in the factories, such as wire-steel factory, wirel mesh factory,spring factory and nail making factory etc.

Why choose us?

1: Accurate meter counting with an error of 0.1%

2: Good tension control by sensor and wheel,wire break situation is seldom

3: Display of various fault information and processing information.

4: Various motion information monitoring

FAQ:

Q: What’s the machine price?

A: Please tell me your require.

Q: Can you make the machine according to my voltage?

A: Yes, usually the popular voltages are 3 phase, 380V/220V/415V/440V, 50Hz or 60Hz etc.

Q: Can I make different mesh size on one machine?

A: The mesh size must be fixed. The mesh width can be adjusted.

Q: How many workers are needed to operate the line?

A: 1 worker.

Q: Can I make several mesh rolls one time?

A: Yes. It is no problem on this machine.

Q: What’s your payment terms?

A: 30% T/T in advance, 70% T/T before shipment, or L/C, or cash etc. It is negotiable.

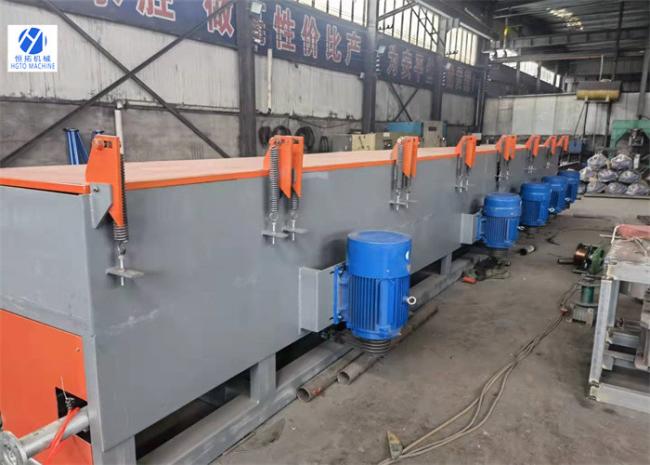

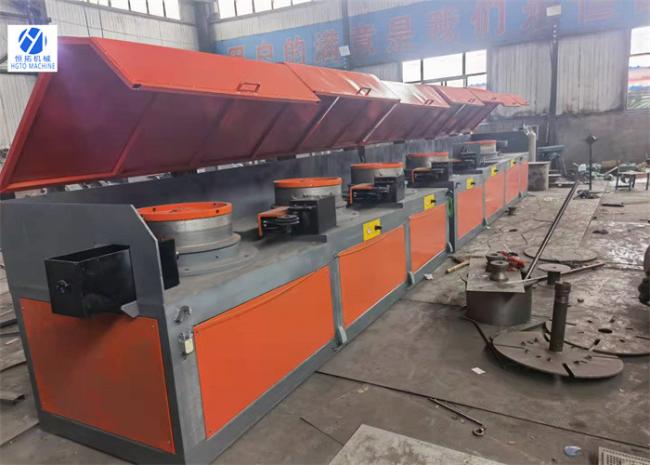

Machine Picture:
