Double Wire Chain Link Fence Machine For Airport 380v Fireproof
Airport Use, Chain Link Net Making Machine Weaving The Best Farm Fence
The successful development of the fully automatic double wire chain link fence machine has doubled the production efficiency of the chain link fence machine, but the requirements for the wire and the control of the automatic weaving speed are high, and the tension and elasticity of the double wire must be uniform.
Chain link fence machine is a wire mesh machine that crochets low carbon steel wire, stainless steel wire, aluminum alloy wire, PVC wire, and sprayed wire into chain link fence. The mesh has uniform meshes, smooth surface, and elegant appearance. , The width of the net is adjustable, the thickness of the wire diameter is adjustable, it is not easy to be corroded, and the life is long,the weaving is simple, beautiful and practical.
Advantages :
1. PLC (programmable Logic Controller)
2. Manufacturing chain link fences of different sizes
3. Servo motor 5.5kw(output power 16.5kw)
4. Alarm device which can stop the machine automatically or remind operator of feeding the machine timely.
5. Additional shutdown device to stop the machine conveniently
6. Single die double spiral.
7. Sides of chain link fence can be twisted or knuckled as required.
Specification:
| Model | Single Wire | Double Wire |
| Wire diameter | 1.3-4mm | 1.5-4mm |
| Mesh size | 20-100mm | 25-100mm |
| Mesh width | 0.5-4m | 0.5-4m |
| Speed | 70-80m²/h | 120-180m²/h |
| Mould Dies | 2 sets mould for free | |
| Mesh length | 30m, adjustable freely as your request | |
| Mesh side | Knuckled and twisted, or knuckle, or twisted | |
| Raw material | Galvanized wire, PVC coated wire, etc. | |
| Machine size | 4.2*2.2*1.7m | 6.7*1.43*1.8m |
| Weight | 2500kg | 4200kg |
| Operation | One person can operate two or three machines | |
After service:
1:Within guarantee time, if any components are broken under normal condition, we can change for free
2:Complete installation instructions, circuit diagram, manual operations and machine layout.
3:Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
4:We can send our best technician to buyer’s factory for installation, debugging and training.
5:Timely reply for your machine questions, 24 hours support service.

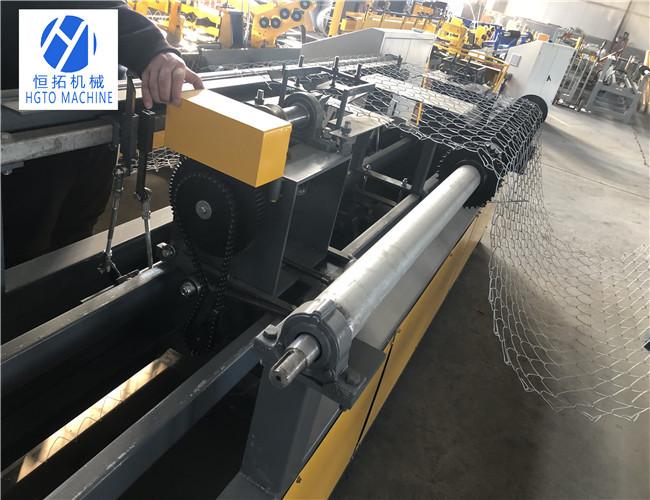

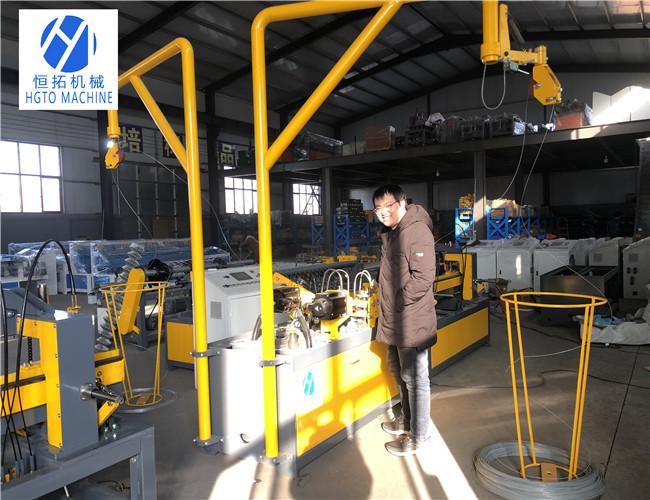

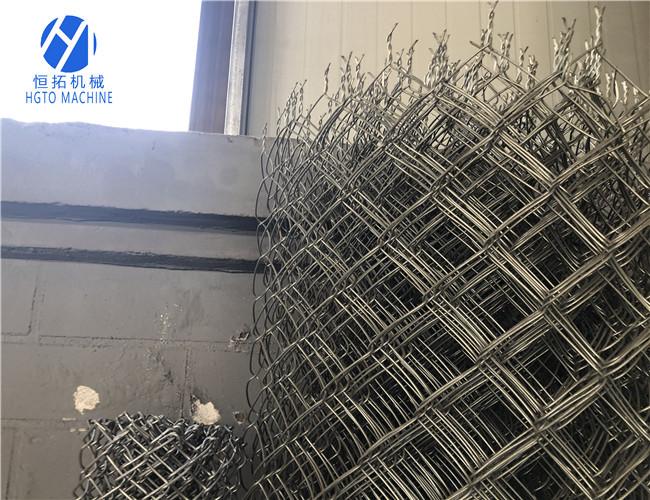

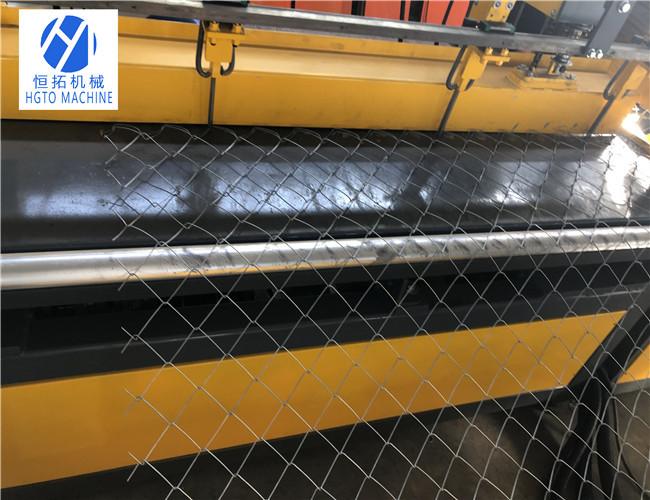

Machine Pictures:
