HGTO Gi Net Making Hexagonal Wire Mesh Machine 380V Waterproof
30mm size , building wall use , Mechinical type Hexagonal wire mesh machine with patent for invention
Usage :
Hexagonal wire mesh netting machine also called hexagonal wire netting machine, is automatically feeding wire weaving mesh, taking up rolls and higher speed than similar machinery. The finished mesh hexagonal wire netting is extensively used in industrial and agricultural constructions. Also it can be used as fence for poultry cage, fishing, garden, children playground and the celebration decorations etc.
Specification of Mechinical type Hexagonal wire mesh machine:
| Straight And Reverse Twisted Hexagonal Wire Mesh Machine | ||||||
| Type | Mesh Width(mm) | Mesh Size(mm) | Wire Diameter(mm) | Number of Twists | Weight(t) | Motor(kw) |
| HGTO-3000 | 2000-4000 | 16 | 0.38-0.7 | 6 | 3.5-5.5 | 2.2 |
| 20 | 0.40-0.7 | |||||
| 25 | 0.45-1.1 | |||||
| 30 | 0.5-1.2 | |||||
| 40 | 0.5-1.4 | |||||
| 50 | 0.5-1.7 | |||||
| 55 | 0.7-1.3 | |||||
| 75 | 1.0-2.0 | |||||
| 85 | 1.0-2.2 | |||||
Specification of Spool winding machine:
| Speicfication of Spool Winding Machine | |||||
| Name | Overall Size(mm) | Weight(kg) | Motor(kw) | ||
| Spool Winding Machine | 1000*1500*700 | 75 | 0.75 | ||
Company Profile:
Our wire mesh machine have always been in the industry leading level, the main products are Hexagonal wire mesh machine, Straight and reverse twisted hexagonal wire mesh machine, Gabion wire mesh machine, Tree root transplant wire mesh machine, Barbed wire mesh machine, Chain link fence machine,weld wire mesh machine, nail making machine and so on.
All departments work together to make sure all the machines and products good quality and supply good after-sales service. Due to the joint efforts of all staff, our products are exported to many countries, and gain good reputation and long cooperation from domestic and overseas.

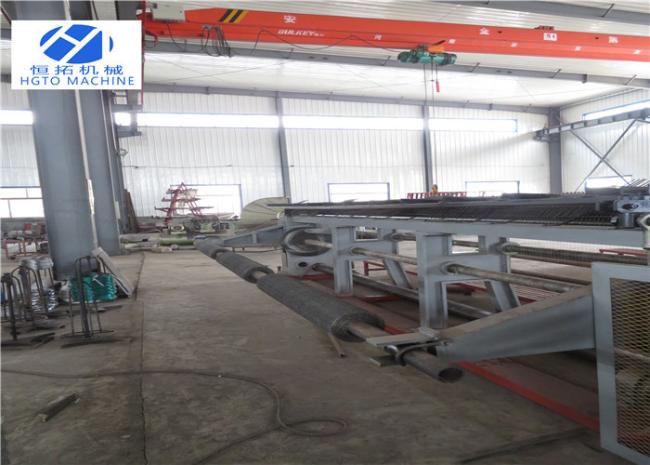

Main Machine Picture:

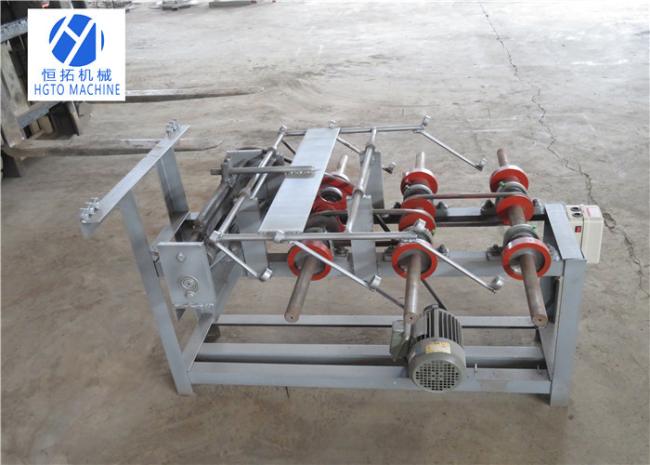

Spool winding Picture:

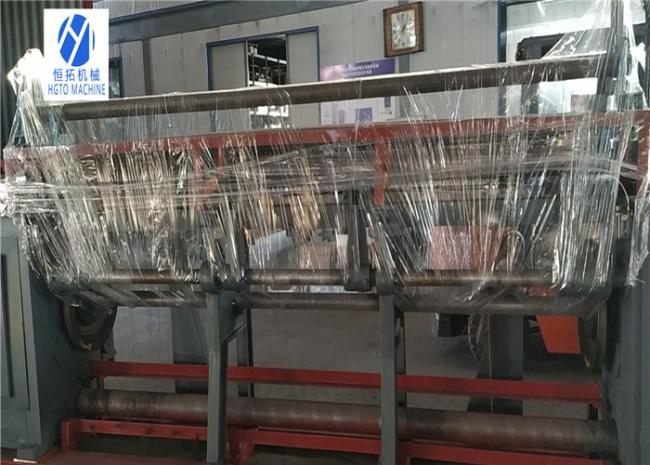

Machine Loading

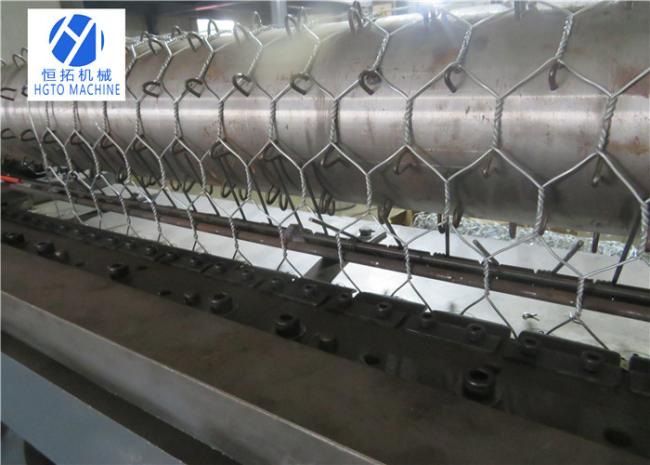

Finished Mesh

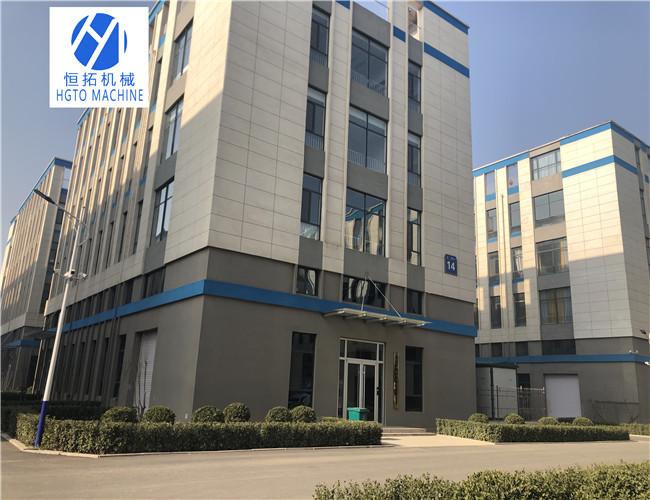

Factory Picture:
