Grassland PLC Fence Mesh Welding Machine , Anticorrosive Farm Fencing Machine
The grassland fence machine is also called field fence machine, hinge joint fence machine or cattle fence machine, farm fence machine. This machine can produce grassland fence which is widely used for preventing environmental balance, preventing landslide and used as livestock fence.
We can design the machine according to your wire diameter, mesh hole size and mesh width.
Specification of machine
| type | 1422mm | 1880mm | 2000mm | 2400mm |
| motor | 5.5kw | 7.5kw | 7.5kw | 11kw |
| Twine diameter | 1.9-2.5mm | 1.9-2.5mm |
1.9-2.5mm |
1.9-2.5mm |
|
side wire diameter |
2.0-3.5mm | 2.0-3.5mm | 2.0-3.5mm | 2.0-3.5mm |
| votage | 380v | 380v | 380v | 380v |
| weight | 3.5t | 3.8t | 4.0t | 4.5t |
| wrap number | 11 | 13 | 18 | 23 |
| minimum weft opening number | 2 | 4 | 4 | 6 |
| weft number | 10 | 12 | 17 | 22 |
Advantages:
1. The best brand in China. Long service life, good quality, high stable working.
2. Frequency-variable motor is controlled by Delta inverter, adjustable working speed, saving 30% energy. Schneider electric components, low failure rate.
3. Straightening rollers are specially designed for hard wire.
4. Every cross wire is equipped with one push rod, more powerful.
5. Gear cover protect the safety of operator, also protect the machine.
6. Pneumatic twisting and cutting, speed faster, high output power.
7. Twisted head is made of hardened mold steel , long service life.
8. Mesh roller is strong, easy to install and take off.

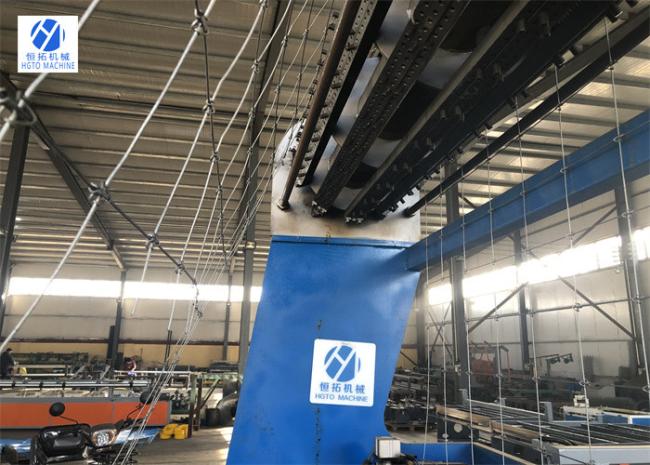

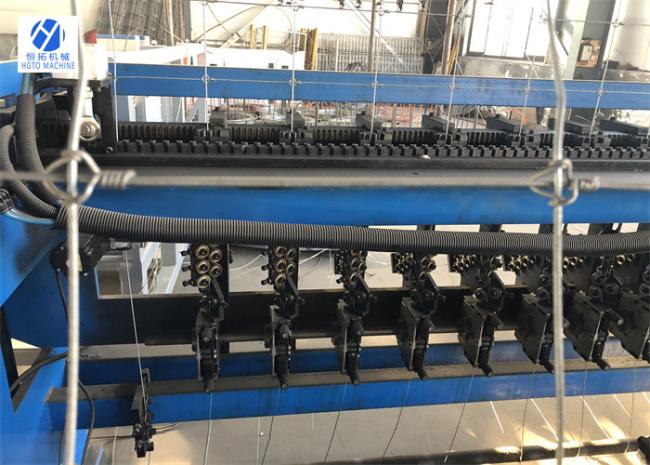

Machine Pictures:
