Anti Seismic Razor Blade Grinding Machine , Automatic Concertina Wire Machine

Name: Anti Seismic Razor Blade Grinding Machine , Automatic Concertina Wire Machine
Brand: Hebei hengtuo mechanical equipment Co., Ltd

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: 25-30DAYS

Brand: HGTO

Product Description

Communication Stations Use Galvanized Concertina Razor Barbed Wire Making Machine

Razor barbed wire machine mainly consists of punching machine and coil machine.

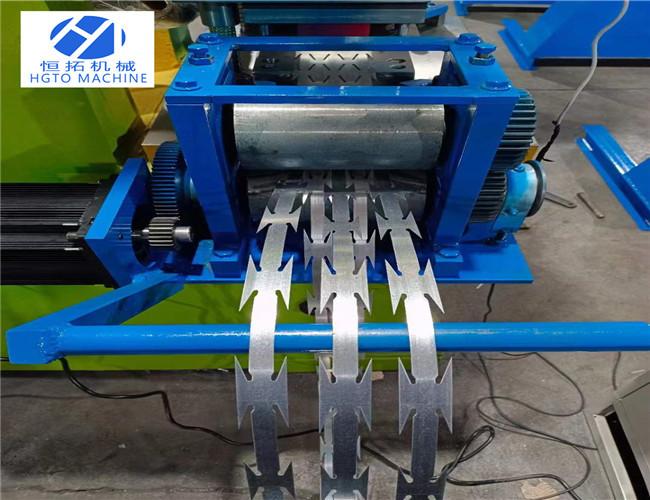

Punching machine cuts steel tapes in different razor shapes with different mould.

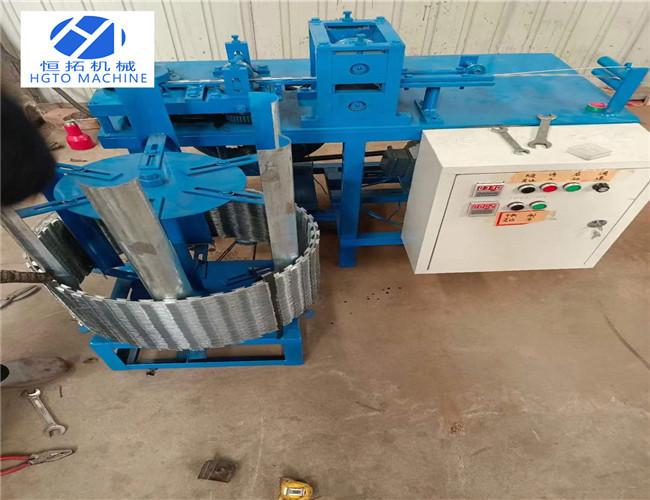

Coil machine is used to wrap razor strip up onto the steel wire and wind up the finished products into rolls.

Application:

Razor barbed wire is extensively used for security isolation of military facilities, communication stations, power distribution stations, border prisons, landfill, community protection, schools, factories, farms, etc.

MODEL	25T	40T	63T	COILING MACHINE
VOLTAGE	3phase 380V/220V/440V/415V, 50HZ or 60HZ
POWER	4KW	5.5KW	7.5KW	1.5KW
PRODUCING SPEED	70TIMES/MIN	75TIMES/MIN	120TIMES/MIN	3-4TON/8H
PRESSURE	25TON	40TON	63TON	--
MATERIAL THICKNESS AND WIRE DIAMETER	0.5±0.05(mm),according to customers' requirement			2.5MM
MATERIAL OF SHEET	GI and stainless steel	GI and stainless steel	GI and stainless steel	-----

BLADE TYPES:

STYLE	BARBE LENGTH	BARB WIDTH	BARB SPACE	STEEL TAPE SHAPE
BTO-10	10±1 mm	13±1mm	26±1mm
BTO-12-1	12±1mm	13±1mm	26±1mm
BTO-12-2	12±1mm	15±1mm	26±1mm
BTO-18	18±1mm	15±1mm	33±1mm
BT0-22	22±1mm	15±1mm	48±1mm
BTO-28	28±1mm	15±1mm	49±1mm
BTO-30	30±1mm	18±1mm	49±1mm
BTO-60	60±1mm	32±1mm	96±1mm
BTO-65	65±1mm	21±1mm	100±1mm
