Pulley Type Straight Line Wire Drawing Machine Multipurpose Tilted Multiscene
PLC Control Straight Line Wire Drawing Machine For Iron Wire Steel Wire
The straight wire drawing machine is one of the common metal wire processing equipment. The straight wire drawing machine can stretch high, medium and low carbon steel wire, stainless steel wire, copper wire, alloy copper wire, aluminum alloy wire, etc. Line processing. Accurate meter counting with 0.1% error; fixed length automatic deceleration and stop; disconnection detection and automatic stop; any reel forward and backward jog and left-right linkage; various fault information and processing information display; various sports information monitoring. It also supports any mold matching process. After the mold is worn out, it is automatically compensated by tuning, and the wire is not easy to break. And there is a jumper device that can cut off the reel at will to adapt to different processes. According to user needs, remote control and remote diagnosis can be implemented based on industrial ethernet.
Working flows and automation :
Steel in coil →Pull up wire rack→Derusting machine→bepowder→Straight Line Wire Drawing Machine→Automatic take-up
|
Straight line Wire drawing machine
|
|||
|
Capstan diameter
|
560mm
|
||
|
Capstan numbers
|
11
|
||
|
Inlet wire diameter
|
Φ8.0mm
|
||
|
Outlet wire diameter
|
Φ2.0mm-Φ6.0mm
|
||
|
Tensile strength
|
≤600mpa
|
||
|
Total compressibility
|
90.53%
|
||
|
Average compressibility
|
25.52%
|
||
|
Max. Speed
|
12 m/s
|
||
|
Power
|
22 KW*11 (Frequency conversion motor )+22KW*11(inverter)
|
||
|
Mold size
|
Φ40mm×25
|
||
|
Block type
|
Vertical ,tilted
|
||
|
Take-up wire
|
Elephant trunk type take-up system
|
||
|
Tension frame
|
Internal tension frame.
|
||
|
Main frame
|
Welding of steel plate and square pipe.
|
||
|
Stop brake
|
Pneumatic brake
|
||
|
Vacuuming design
|
Reserve suction hole
|
||
|
Lighting
|
Each stand with separate lighting.
|
||
|
PLC
|
Siemens
|
||
Main Features :
1) Easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Running in a high automatization and intellectualization,no pollution
4)As the use of the frequency technology, changes in the larger context of parts of the compression ratio to meet the wide range
of technology and high speed drawing.
5)Good cooling system, final wire quality is very good.
FAQ:
Q: What’s the machine price?
A: Please tell me your require.
Q: Can you make the machine according to my voltage?
A: Yes, usually the popular voltages are 3 phase, 380V/220V/415V/440V, 50Hz or 60Hz etc.
Q: Can I make different mesh size on one machine?
A: The mesh size must be fixed. The mesh width can be adjusted.
Q: How many workers are needed to operate the line?
A: 1 worker.
Q: Can I make several mesh rolls one time?
A: Yes. It is no problem on this machine.
Q: What’s your payment terms?
A: 30% T/T in advance, 70% T/T before shipment, or L/C, or cash etc. It is negotiable.
FAQ:
Q: What’s the machine price?
A: Please tell me your require.
Q: Can you make the machine according to my voltage?
A: Yes, usually the popular voltages are 3 phase, 380V/220V/415V/440V, 50Hz or 60Hz etc.
Q: Can I make different mesh size on one machine?
A: The mesh size must be fixed. The mesh width can be adjusted.
Q: How many workers are needed to operate the line?
A: 1 worker.
Q: Can I make several mesh rolls one time?
A: Yes. It is no problem on this machine.
Q: What’s your payment terms?
A: 30% T/T in advance, 70% T/T before shipment, or L/C, or cash etc. It is negotiable.

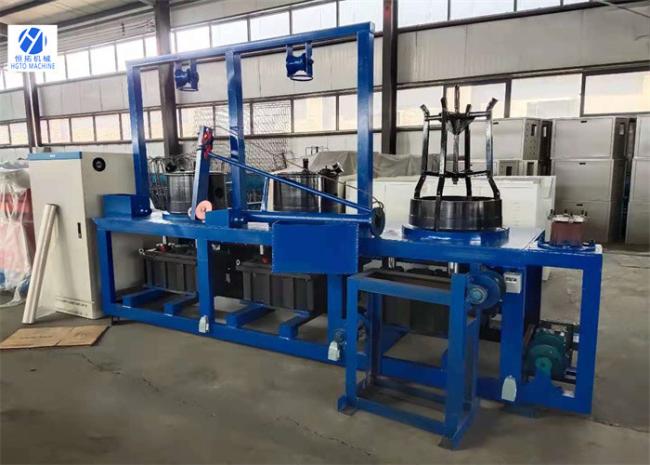

Machine Picture:
